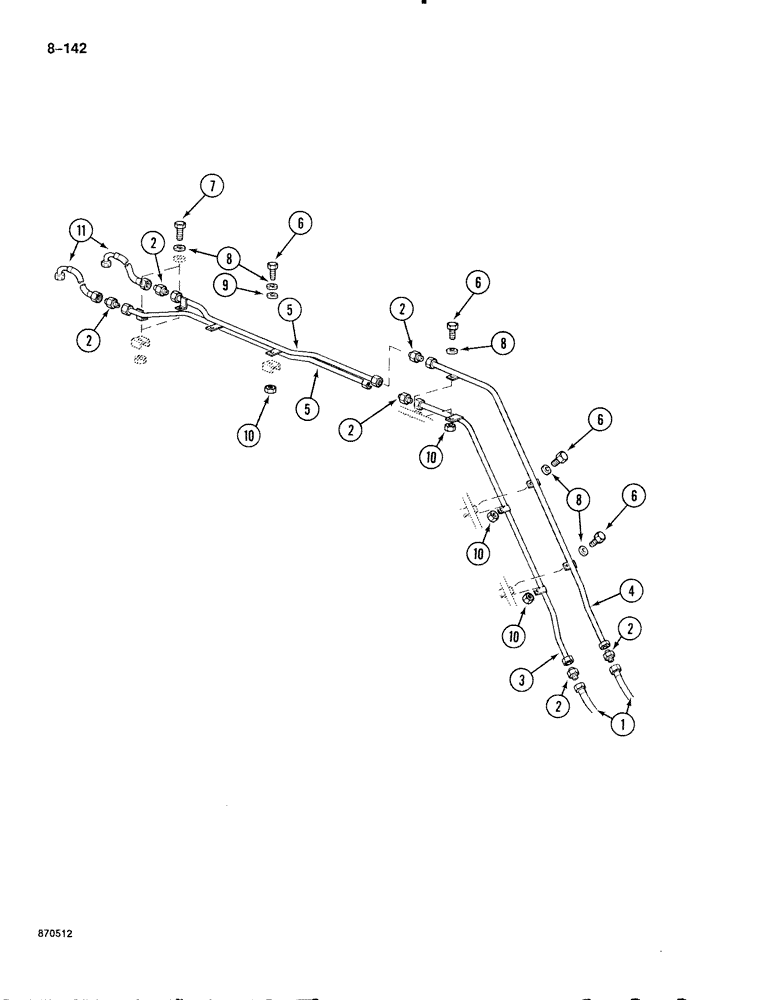

Запчасти Case 888 (8-142) - HYDRAULIC CIRCUIT FOR OPTIONS, TUBES AT BOOM, FOR WRIST-O-TWIST/ROTATOR (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from option control valve, see figue 8-140

2шт.

2

P3237537

UNION

ADAPTER - straight

6шт.

3

P3450108

PIPE

TUBE - from option control valve, left-hand side of boom

1шт.

4

P34501007

TUBE - from option control valve, right-hand side of boom

1шт.

5

P34650106

TUBE - from option control valve, at upper side of boom

1шт.

6

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

5шт.

7

P433814

SCREW

BOLT - hex, 10 mm x 60 mm

2шт.

8

P4328796

WASHER

SPACER - bolt, 7 mm thick

7шт.

9

P1245227

WASHER

- flat, 10 mm

2шт.

10

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

5шт.

11

P5431933

HOSE

- 49-1/4" long, to option tubes at arm, see figure 8-144 for continuation

2шт.
