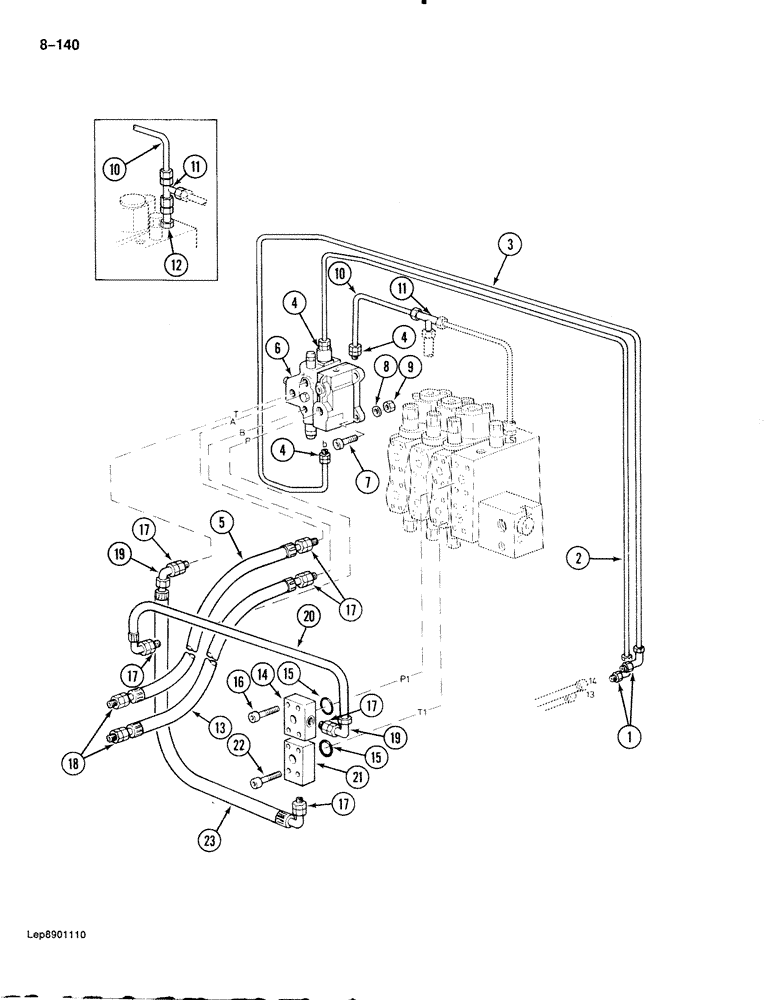

Запчасти Case 888 (8-140) - HYDRAULIC CONTROL CIRCUIT, TO OPTION CONTROL VALVE (08) - HYDRAULICS

1

P1737008

ANGLE

ELBOW - 90 degree

2шт.

2

P6049062

PIPE

TUBE - control circuit, upper port of control valve

1шт.

3

P6249131

PIPE

TUBE - control circuit, lower port of control valve

1шт.

4

P3237530

UNION

ADAPTER - straight

3шт.

P7046042

SEAL

- adapter

1шт.

5

P5431931

HOSE

- 39-3/8" long, Serial Range: valve-attachment

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - option control, see Figure 8F-12

1шт.

7

P832916

SCREW

BOLT - hex socket, 10 mm x 40 mm

4шт.

8

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

9

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

10

P8049680

TUBE - leak return to parallel valve section, Serial Range: -XXXXX

1шт.

10

P7447133

PIPE

TUBE - leak return to parallel valve section, Start Serial: XXXXX

1шт.

Ref #11 - P2643351 Block

1шт.

12

P3237554

FITTING

ADAPTER - tube long

1шт.

P7046042

SEAL

- adapter, not shown

1шт.

13

P5431932

HOSE

- 49-1/4" long, Serial Range: valve-attachment

1шт.

14

P937298

SHIN

BLOCK - adapter, pressure hose

1шт.

15

P30405

O-RING

- adapter block

2шт.

16

P1232983

SCREW

BOLT - hex socket, 12 mm x 75 mm, grade 10.9

4шт.

17

P3237533

UNION

ADAPTER - straight

6шт.

P1145268

SEAL

- adapter

1шт.

18

P3237537

UNION

ADAPTER - straight

2шт.

19

P1737021

ANGLE

ELBOW - 90 degree

2шт.

20

P5431967

HOSE

- 24-13/16" long, to control valve

1шт.

21

P937299

SHIN

BLOCK - adapter, return hose

1шт.

22

P933895

SCREW

BOLT - hex socket, 10 mm x 60 mm, grade 10.9

4шт.

23

P5431963

HOSE

- 24-13/16" long, Serial Range: return-block

1шт.
