Запчасти Case 888 (8-136) - CONTROL VALVE, USED WITH HYDRAULIC HAMMER (08) - HYDRAULICS

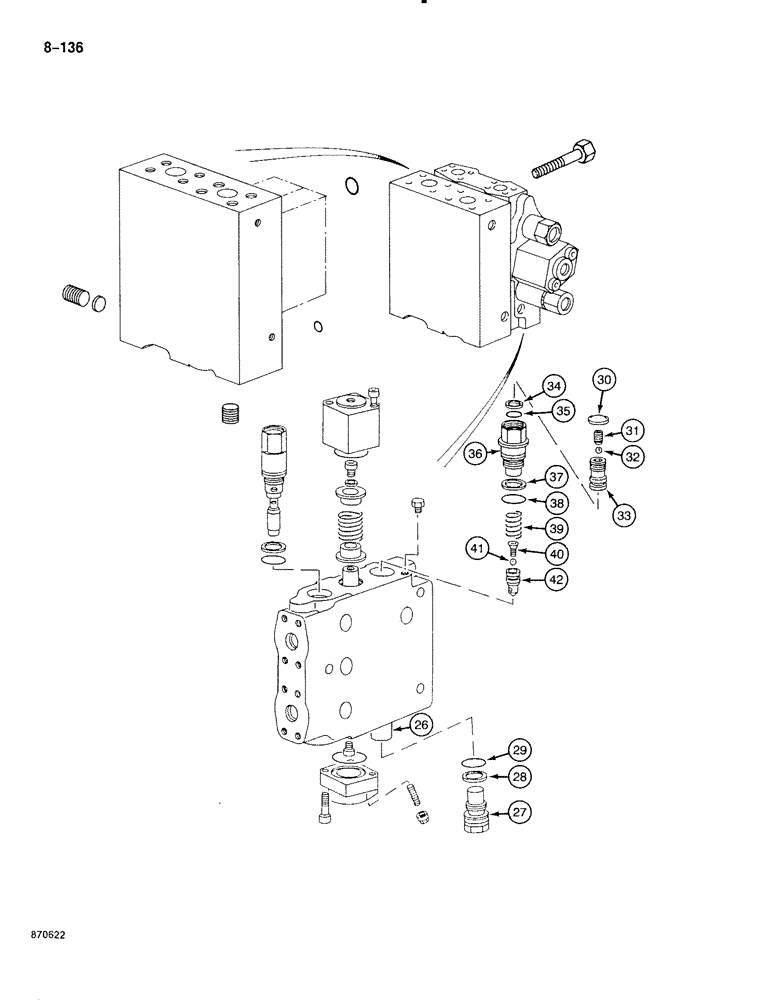

Схема запчастей Case 888 - (8-136) - CONTROL VALVE, USED WITH HYDRAULIC HAMMER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SECTION ASSEMBLY - control valve, Includes: Ref. 26 - 42

1шт.

26

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

27

P3037406

PLUG

- valve body

1шт.

28

P1245232

RING

BACKUP RING - seal

1шт.

29

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- plug

1шт.

30

P2340461

BLANK-OFF PLUG

CAP - adjusting screw

1шт.

31

P3333065

SCREW

- ball retainer

1шт.

32

P31001

BALL

- check, flow control valve

1шт.

33

P7946229

SPARE PART SET

PLUG - adjusting, flow control valve

1шт.

34

P1245231

BACK-UP RING

BACKUP RING - seal

1шт.

35

P2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- adjusting plug

1шт.

36

P2340475

CAP

BODY - flow control valve

1шт.

37

P1245232

RING

BACKUP RING - seal

1шт.

38

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- body

1шт.

39

P1538155

SPRING

- flow control valve

1шт.

40

P3333043

SCREW

- ball retainer

1шт.

41

P31002

BALL

- check, flow control valve

1шт.

42

P7946210

PISTON

SEAT - ball, flow control valve

1шт.

Выбрано товаров: 18
