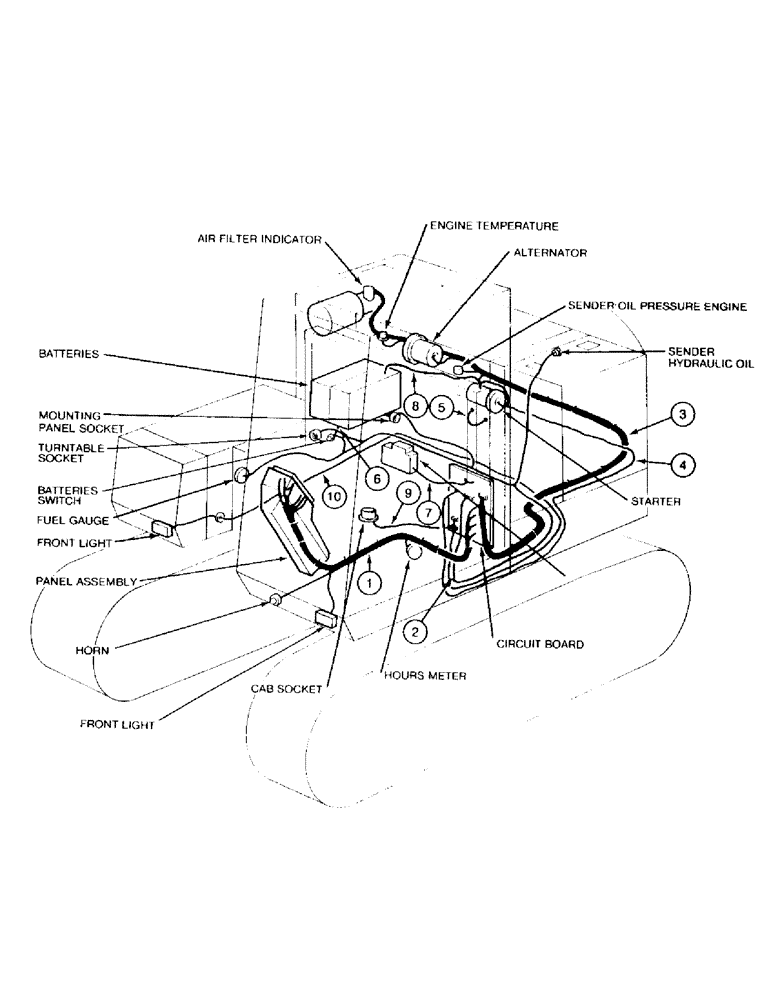

Запчасти Case 888 (1-020) - PICTORIAL INDEX, ELECTRICAL SYSTEM (00) - PICTORIAL INDEX

1

Harness, Main, Instruments Panel to Circuit Board, Page 4-21

1шт.

2

Harness, Main, Turntable, Pages 4-9, 4-11

1шт.

3

Harness, Main, Engine, Page 4-13

1шт.

4

Harness, Starter, Pages 4-9, 4-11

1шт.

5

Cable, Engine Ground, Page 4-15

1шт.

6

Cable, Batteries Ground, Page 4-37

1шт.

7

Harness, Windshield Washer, Pages 4-17, 4-19

1шт.

8

Cable, Positive Battery Terminal to Starter, Page 4-13

1шт.

9

Harness, Cab Harness Socket, Pages 4-17, 4-19

1шт.

10

Harness, Circuit Board to Front Work Lamp, Pages 4-9, 4-11

1шт.
