Запчасти Case 888 (8-134) - CONTROL VALVE, USED WITH HYDRAULIC HAMMER (08) - HYDRAULICS

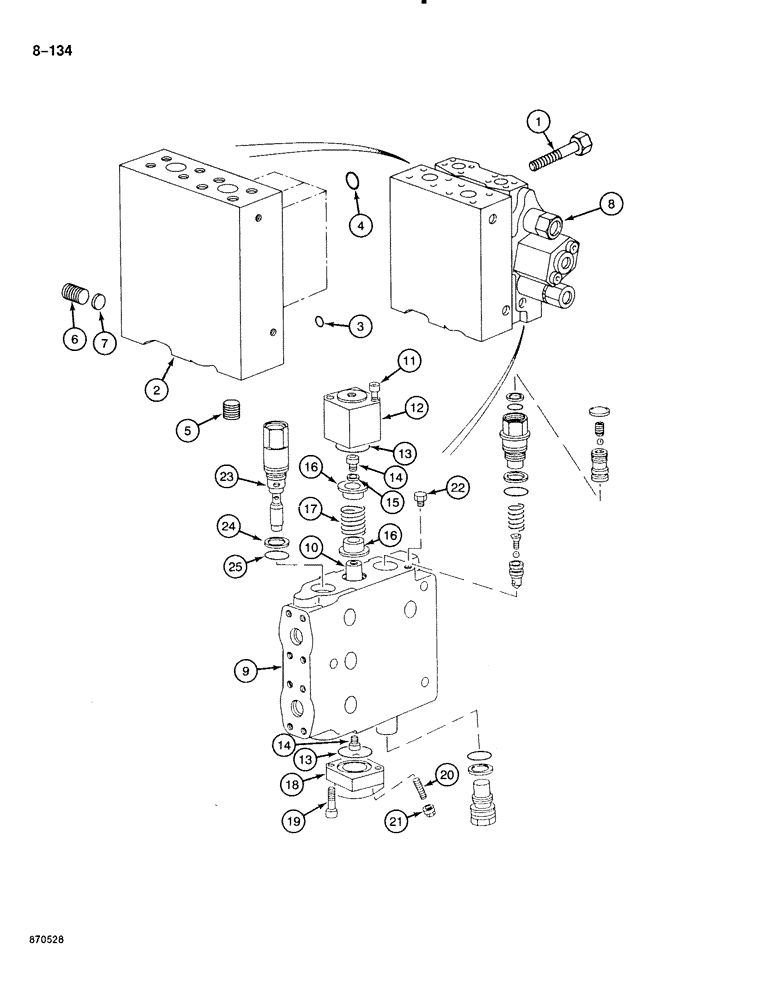

Схема запчастей Case 888 - (8-134) - CONTROL VALVE, USED WITH HYDRAULIC HAMMER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

P1232977

SCREW

BOLT - hex, 16 mm x 90 mm, grade 10.9

3шт.

P3143638

LARGE PLATE

SECTION ASSEMBLY - inlet and outlet, hydraulic hammer control valve, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

SECTION - inlet and outlet

1шт.

3

P2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inlet and outlet section, small

1шт.

4

P2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- inlet and outlet section, large

4шт.

5

P3037414

PLUG

- section

1шт.

6

P737453

PLUG

- body

1шт.

7

P645050

HOLE PLUG BUTTON

DISC - section plug

1шт.

8

P3143695

DISTRIBUTOR

SECTION ASSEMBLY - control valve, hydraulic hammer, Includes: Ref. 9 - 25

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - hydraulic hammer section, control valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - hydraulic hammer section, control valve

1шт.

11

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

Valve bracket Hex Soc Hd, M8 x 65, 10.9

2шт.

12

P2340462

CAP

- spool end

1шт.

13

P2230464

O-RING

- spool end cap

2шт.

14

P1432932

SCREW

BOLT - hex socket, 8 mm x 10 mm, grade 10.9

2шт.

15

P1945382

WASHER

- flat, special

1шт.

16

P7646228

CUPEL

SEAT - spring

2шт.

17

P38295

SPRING

- spool

1шт.

18

P3143668

CAP

- spool end

1шт.

19

P732909

SCREW

BOLT - hex socket, 8 mm x 25 mm, grade 10.9

2шт.

20

P3333042

SCREW

SET SCREW - end cap

1шт.

21

P2434541

NUT

- hex, self-locking

1шт.

22

P3037405

PLUG

- check valve

1шт.

P3143696

SHOCK ABSORBER

CIRCUIT RELIEF VALVE ASSEMBLY - hydraulic hammer control valve section, Includes: Ref. 23 - 25

2шт.

23

NSS

NOT SOLD SEPARAT

CIRCUIT RELIEF VALVE - hydraulic hammer control valve section

1шт.

24

P1245232

RING

BACKUP RING - seal

1шт.

25

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- relief valve body

1шт.

Выбрано товаров: 27
