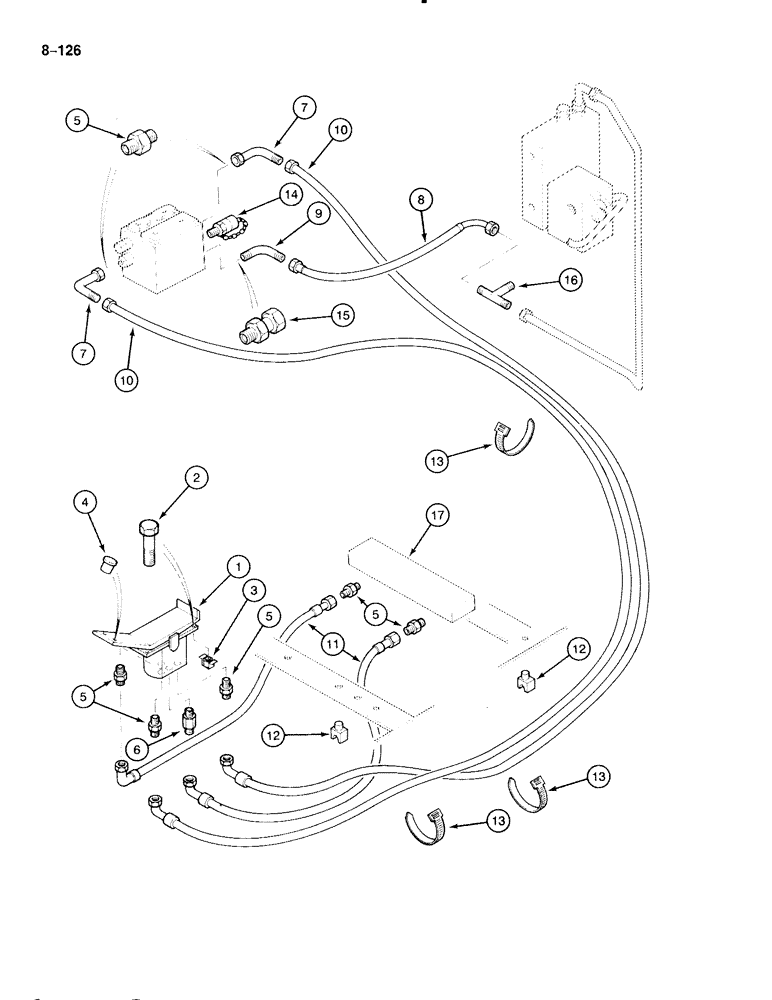

Запчасти Case 888 (8-126) - HYDRAULIC CONTROL CIRCUIT, TO HYDRAULIC HAMMER CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, parts list see figure 8-112

1шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

4шт.

3

P1334571

NUT

- hex, cage type

4шт.

4

P3037430

PLASTIC PLUG

PLUG - plastic, foot pedal

2шт.

5

P3237530

UNION

ADAPTER - straight

7шт.

P7046042

SEAL

- adapter

1шт.

6

P3237581

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

7

P1737018

ANGLE

ELBOW - 90 degree

2шт.

8

P5431970

HOSE

- 24-7/8" long, control circuit

1шт.

9

P1737055

ANGLE

ELBOW - 90 degree

1шт.

10

P6631978

HOSE

- 98-7/16" long, control circuit

2шт.

11

P5431978

HOSE

- 3-1/2" long

2шт.

12

P2036942

SUPPORT

RETAINER - control circuit hoses

1шт.

13

P51946

CLAMP

TIE STRAP - circuit hoses, 10-1/8" long

1шт.

14

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- disconnect

1шт.

15

P3237554

FITTING

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

16

P2643351

BLOCK ASSY.

TEE - power sensing tubes

1шт.

17

REF

INSTRUCTION

BLOCK - manifold, control circuit hose

1шт.
