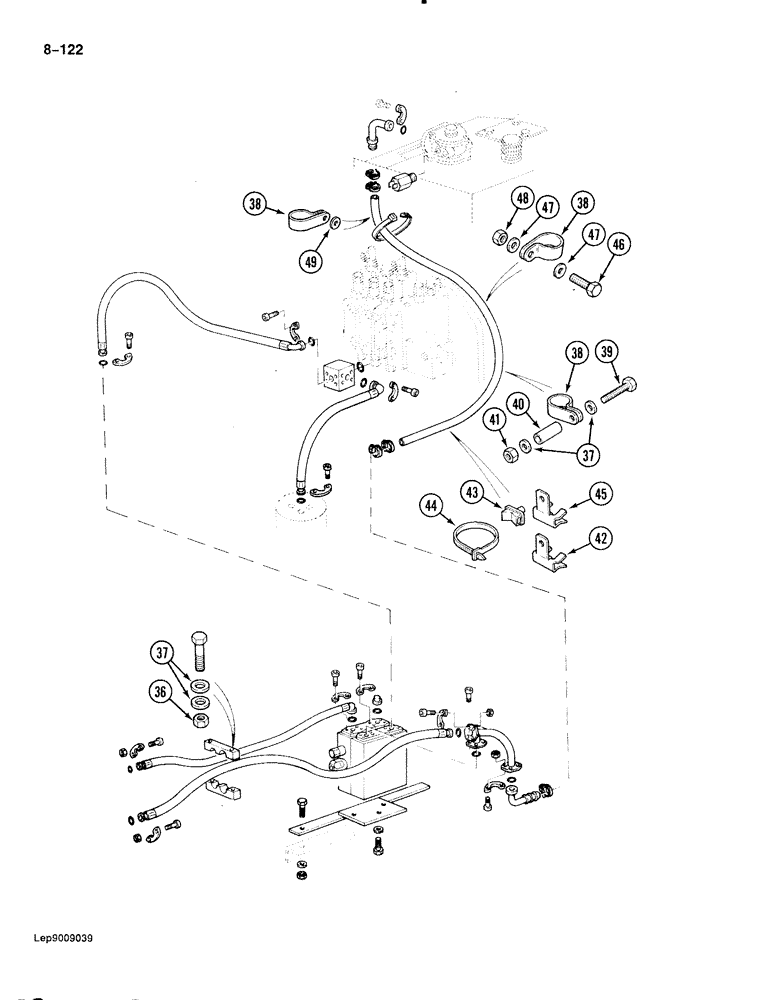

Запчасти Case 888 (8-122) - HYDRAULIC HAMMER CIRCUIT, PRESSURE AND RETURN LINES (08) - HYDRAULICS

36

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

37

P3528795

WASHER

SPACER - bolt, 7 mm thick

6шт.

38

P1736988

CLAMP

- hose

3шт.

39

P133855

SCREW

BOLT - hex, 10 mm x 160 mm

1шт.

40

P1231875

TUBE

- clamp, 2-3/8" long

1шт.

41

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.

42

P1436963

CLASP

CLIP - retainer, 1/2" - 3/4" range

1шт.

43

PP2036939

CLASP

RETAINER - tie-strap

1шт.

44

P51946

CLAMP

TIE-STRAP - 10-1/8" long

1шт.

45

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

1шт.

46

P733035

SCREW

BOLT - hex, 6 mm x 35 mm

1шт.

47

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

48

P234513

SAFETY NUT

NUT - hex, 6 mm

1шт.

49

P4328729

WASHER

SPACER - bolt, 16 mm thick

1шт.
