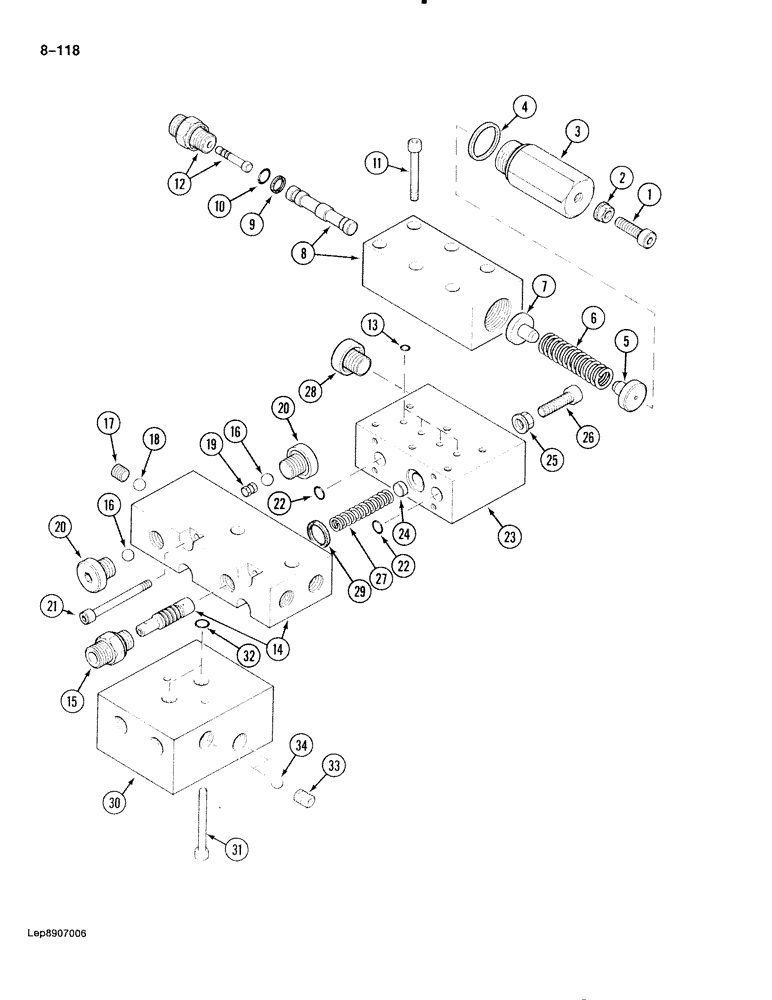

Запчасти Case 888 (8-118) - COUNTER ROTATION VALVE, P.I.N. FROM 15263 AND AFTER (08) - HYDRAULICS

P4743314

HYDRAULIC VALVE

VALVE ASSEMBLY - counter rotation, Includes: Ref. 1 - 34

1шт.

P4743384

SELECTOR

VALVE ASSEMBLY - selector, Includes: Ref. 1 - 13

1шт.

1

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

1шт.

2

P2434541

NUT

- adjusting screw

1шт.

3

P1030033

CAP

BODY - selector valve

1шт.

4

P2230417

SEAL

O-RING - body

1шт.

5

P6027871

TAPPET

SEAT - spring

1шт.

6

P2838108

SPRING

- selector

1шт.

7

P6427831

TAPPET

SEAT - spring

1шт.

8

P4743386

BODY

BLOCK ASSEMBLY - body and spool

1шт.

9

P1245260

BACK-UP RING

BACKUP RING - seal

1шт.

10

P1230429

O-RING

- spool

1шт.

11

P232916

SCREW

BOLT - hex socket, 5 mm x 30 mm

6шт.

12

P4743368

SET OF PARTS

PLUG ASSEMBLY - selector

1шт.

P7046042

SEAL

- plug

1шт.

13

P1230429

O-RING

-, Serial Range: block-body

4шт.

P4743387

PRESSURE LIMITER

VALVE ASSEMBLY - counter rotation valve, Includes: Ref. 14 - 20

1шт.

14

P4743388

SET OF PARTS

KIT - repairing set, Includes: Ref. 15 - 20

1шт.

15

P3237530

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- plug

1шт.

16

P31043

BALL

- valve

2шт.

17

P32813

SCREW

- body

1шт.

18

P31002

BALL

- valve

1шт.

19

P6427832

TAPPET

PUSHER - ball

1шт.

20

P2537447

PLUG

- at body

2шт.

P7046042

SEAL

- plug

1шт.

21

P332907

SCREW

BOLT - hex socket, 5 mm x 50 mm

4шт.

22

P1230429

O-RING

-, Serial Range: body-body

2шт.

23

P4743389

BODY

- valve

1шт.

24

P6427833

TAPPET

PUSHER - spring

1шт.

25

P2434541

NUT

- adjusting screw

1шт.

26

P0732978Q

SCREW

1шт.

27

P1038265

SPRING

- valve

1шт.

28

P2537447

PLUG

- body

1шт.

P7046042

SEAL

- plug

1шт.

29

P1130462

O-RING

-body

1шт.

30

P4743385

ELEMENT

BLOCK ASSEMBLY - juntion block, Includes: Ref. 31 - 34

1шт.

31

P432913

SCREW

BOLT - hex socket, 6 mm x 40 mm

2шт.

32

P1230429

O-RING

- junction, Serial Range: block-body

2шт.

33

P4743366

SEAT

SCREW - seat

2шт.

34

P31018

BALL

- junction block

2шт.

P3545031

HOLE PLUG BUTTON

RESTRICTOR, adopt, for counter rotation valve

1шт.

P1230429

O-RING

for the counter rotation valve

1шт.
