(8-116) - PRESSURE REGULATING VALVE, P.I.N. FROM 74163 TO 74418, 15201 TO 15262

Запчасти Case 888 (8-116) - PRESSURE REGULATING VALVE, P.I.N. FROM 74163 TO 74418, 15201 TO 15262 (08) - HYDRAULICS

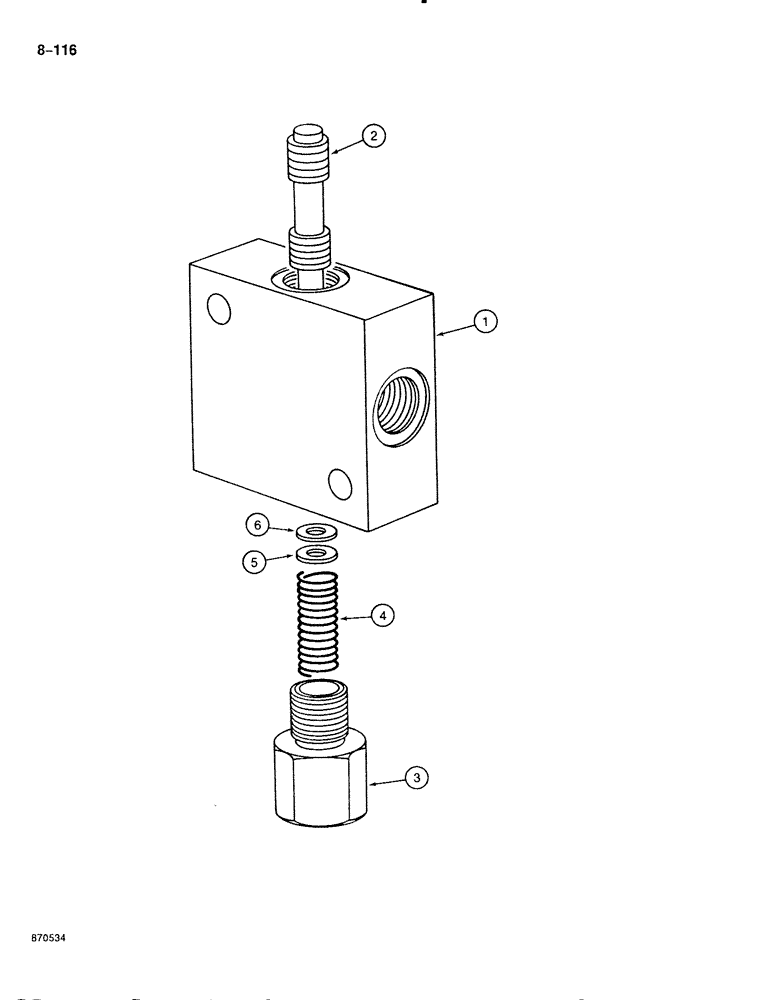

Схема запчастей Case 888 - (8-116) - PRESSURE REGULATING VALVE, P.I.N. FROM 74163 TO 74418, 15201 TO 15262 (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P3743363

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

P3237449

PLUG

CAP - regulator spring

1шт.

4

P1038231

SPRING

- regulator

1шт.

5

P1945391

BLOCK

SHIM - spring, 0.012" thick

1шт.

6

P1945389

BLOCK

SHIM - spring, 0.008" thick

1шт.
