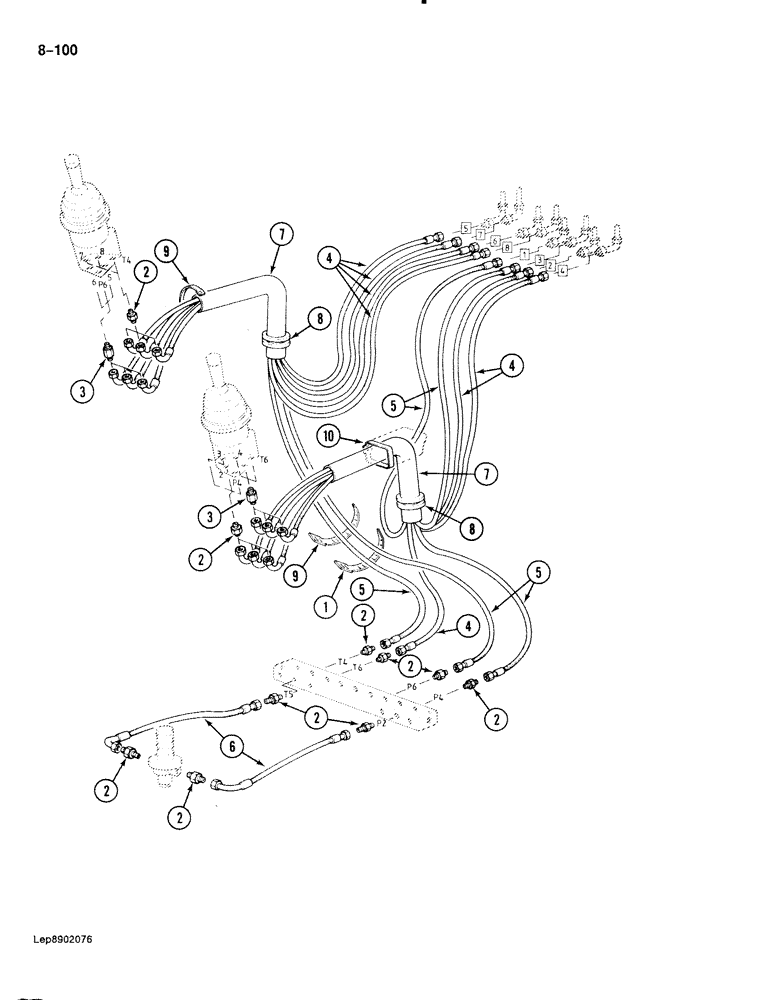

Запчасти Case 888 (8-100) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO HAND CONTROL VALVES, P.I.N. FROM 74163 - 74418, 15201 - 15264 (08) - HYDRAULICS

1

P336923

CLAMP

TIE STRAP - hose, 4-5/8" long

1шт.

2

P3237530

UNION

ADAPTER - straight

14шт.

P7046042

SEAL

- adapter

1шт.

3

P3237581

UNION

ADAPTER - straight

6шт.

P7046042

SEAL

- adapter

1шт.

4

P5431954

HOSE

- 55-1/8" long, control circuit

7шт.

5

P5431955

HOSE

- 63" long, control circuit

5шт.

6

P5431952

HOSE

- 14" long, foot pump to manifold block

1шт.

7

P4931937

LOOM

SLEEVE - hose protector

2шт.

8

P41478

GROMMET

- protector sleeve

2шт.

9

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

1шт.

10

P136922

CLAMP

TIE STRAP - hose, 13-3/4" long

1шт.
