Запчасти Case 888 (8-094) - HYDRAULIC CONTROL CIRCUIT, AT MANIFOLD BLOCK (08) - HYDRAULICS

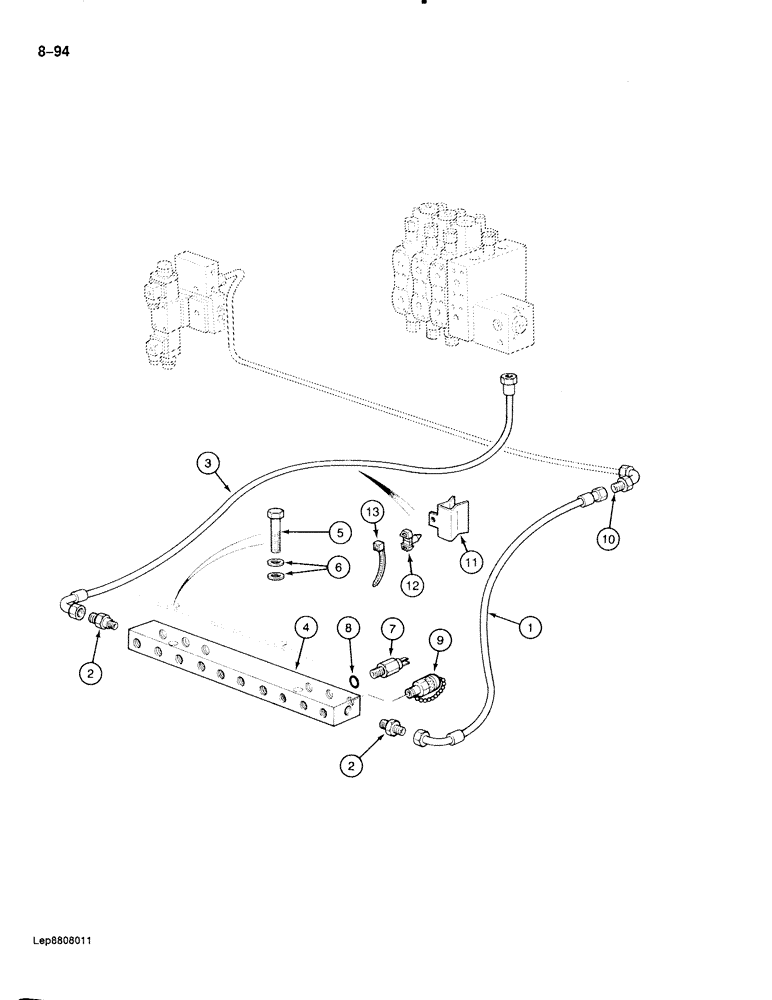

Схема запчастей Case 888 - (8-094) - HYDRAULIC CONTROL CIRCUIT, AT MANIFOLD BLOCK (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

P5431958

HOSE

- 35-7/16" long, control circuit at block

1шт.

2

P3237532

UNION

ADAPTER - straight

2шт.

P2230418

SEAL

O-RING - adapter

1шт.

3

P5431959

HOSE

- 49-1/4" long, to attachment valve block

1шт.

4

P3837785

BLOCK ASSY.

BLOCK - manifold, control circuit hoses

1шт.

5

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

6

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

7

P1241850

ELECTRO/HYD CONTACT

SWITCH - low circuit pressure lamp

1шт.

8

P45298

WASHER, SEALING

SEAL - switch

1шт.

9

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- disconnect

1шт.

10

REF

INSTRUCTION

ELBOW - 90 degree, see figure 8-70 and 8-72 for control circuit from solenoid valve

1шт.

11

P2036903

CLASP

CLIP - retainer

1шт.

12

PP2036939

CLASP

RETAINER - tie strat

1шт.

13

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

1шт.

Выбрано товаров: 15
