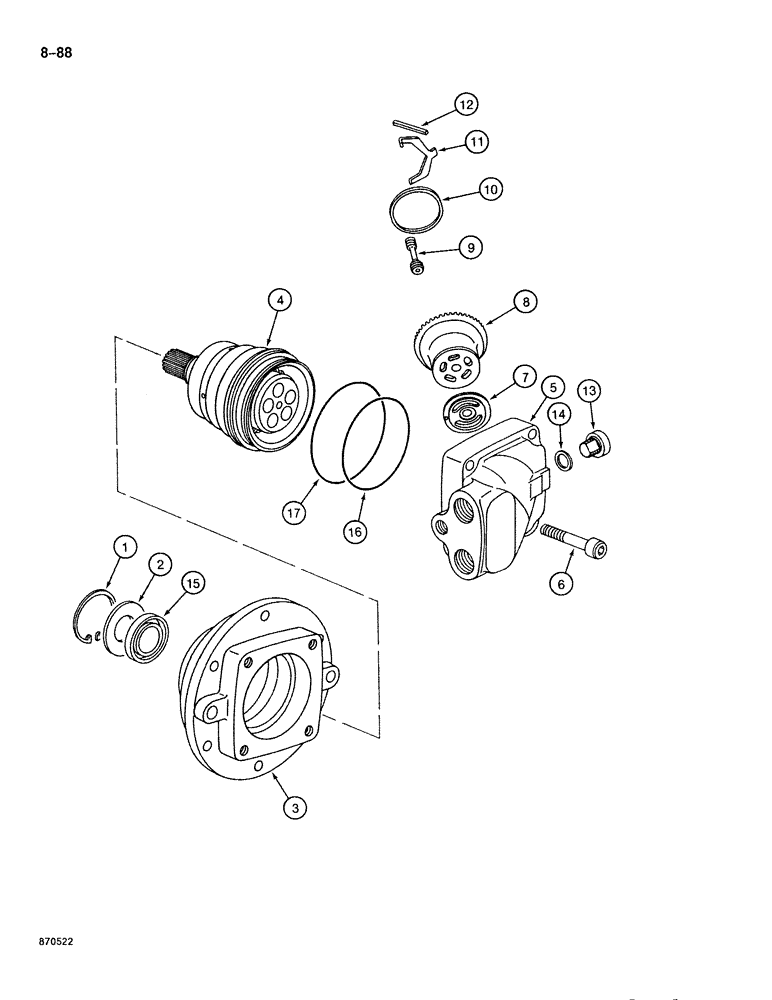

Запчасти Case 888 (8-088) - SWING HYDRAULIC MOTOR (08) - HYDRAULICS

P2343765

MOTOR, HYDRAULIC

HYDRAULIC MOTOR ASSEMBLY - swing, Includes: Ref. 1 - 17

1шт.

1

P936325

RING, SNAP

SNAP RING - washer retaining

1шт.

2

P1945345

WASHER

- seal retaining

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - motor, front

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - motor

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - motor, rear

1шт.

6

P1332953

SCREW

BOLT - hex socket, 10 mm x 45 mm, grade 10.9

4шт.

7

P6546296

ELEC SUPPORT PLATE

PLATE - valve

1шт.

8

P1030005

LOCK, CYLINDER

BLOCK - cylinder

1шт.

9

P1729867

PISTON

- cylinder block

5шт.

10

NSS

NOT SOLD SEPARAT

RING - cylinder block

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - cylinder block

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - cylinder block

1шт.

13

P3037428

PLUG

- rear housing

1шт.

14

P1245274

WASHER

SEAL - plug

1шт.

P3749695

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 15 - 17

1шт.

15

P7146035

SEAL

- shaft, front housing

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly - small

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly - large

1шт.

P4743721

MOTOR, HYDRAULIC

adopt.

1шт.

P4743301

VALVE

BLOCK

1шт.

P2838107

SPRING

1шт.

P4743303

VALVE POPPET

1шт.

P4229120

GUIDE

1шт.

P4743305

SHIN

FLANGE

1шт.

P4237597

UNION

1шт.

P7331950

HOSE

1шт.
