Запчасти Case 888 (8-084) - ATTACHMENT CONTROL VALVE BLOCK (08) - HYDRAULICS

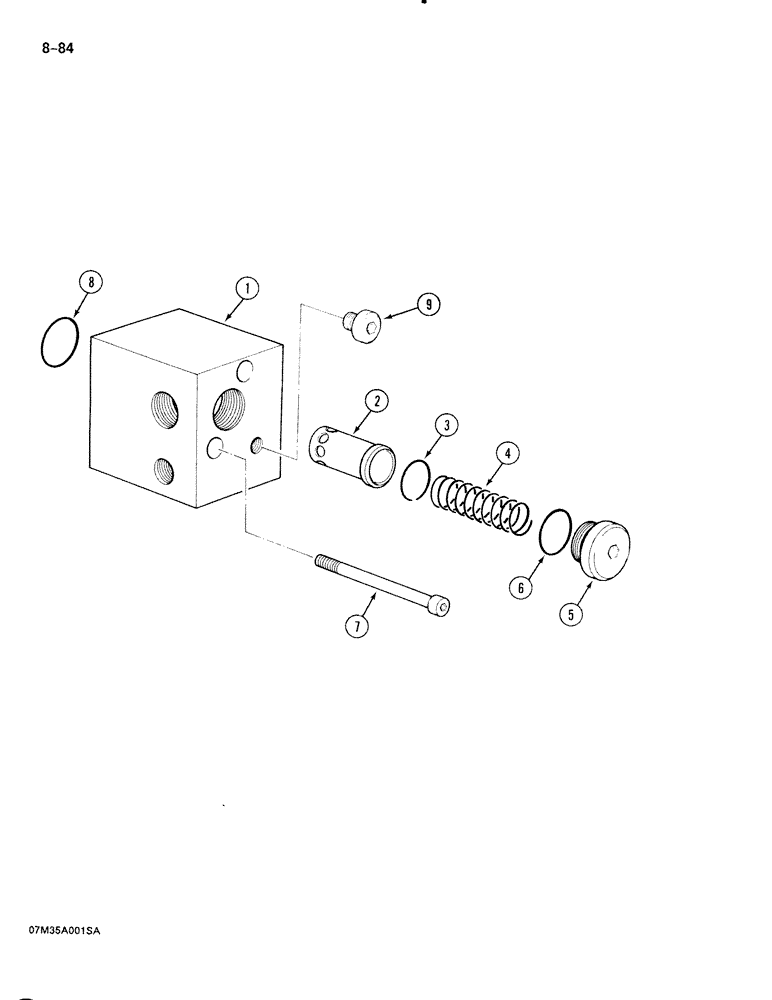

Схема запчастей Case 888 - (8-084) - ATTACHMENT CONTROL VALVE BLOCK (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

P2643374

BLOCK ASSY.

BLOCK ASSEMBLY - attachment control valve, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - attachment control valve

1шт.

2

P4043330

VALVE POPPET

POPPET - control valve block

1шт.

3

P936345

SPECIAL RING

SNAP RING - poppet

1шт.

4

P1038235

SPRING

- poppet

1шт.

5

P3237460

PLUG

- valve block

1шт.

6

P630442

O-RING

- plug

1шт.

7

P732976

SCREW

BOLT - hex socket, 10 mm x 100 mm, grade 10.9

2шт.

8

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- block

1шт.

9

P2537447

PLUG

- valve block

1шт.

P7046042

SEAL

- plug

1шт.

Выбрано товаров: 11
