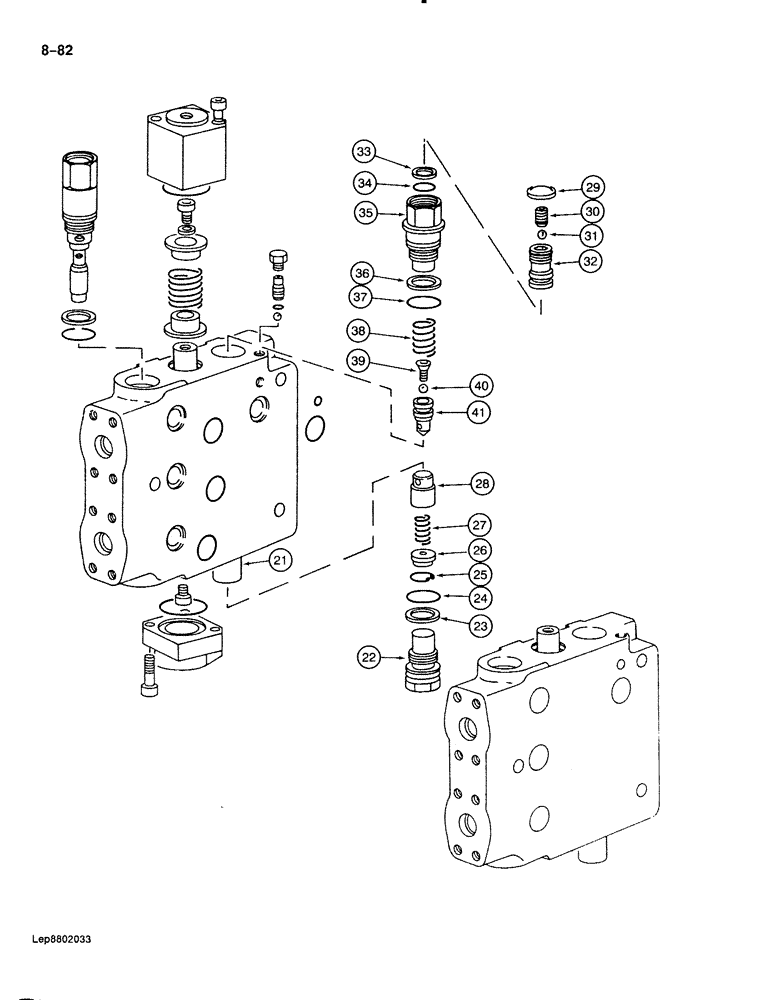

Запчасти Case 888 (8-082) - ATTACHMENT CONTROL VALVE, BOOM, ARM AND TOOL SECTIONS (08) - HYDRAULICS

REF

INSTRUCTION

BOOM SECTION ASSEMBLY - attachment control valve

1шт.

REF

INSTRUCTION

TOOL SECTION ASSEMBLY - attachment control valve

1шт.

REF

INSTRUCTION

ARM SECTION ASSEMBLY - attachment control valve, Includes: Ref. 21 - 41

1шт.

21

NSS

NOT SOLD SEPARAT

LUNGER - valve

1шт.

22

P3037406

PLUG

- valve body

1шт.

23

P1245232

RING

BACKUP RING - seal

1шт.

24

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- plug

1шт.

25

NSS

NOT SOLD SEPARAT

SNAP RING - seat retainer

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT - retainer

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON - plunger

1шт.

29

P2340461

BLANK-OFF PLUG

CAP - adjusting screw

1шт.

30

P3333065

SCREW

- ball retainer

1шт.

31

P31001

BALL

- check, flow control valve

1шт.

32

P7946229

SPARE PART SET

PLUG - adjusting, flow control valve

1шт.

33

P1245231

BACK-UP RING

BACKUNG RING - seal

1шт.

34

P2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- adjusting plug

1шт.

35

P2340475

CAP

BODY - flow control valve

1шт.

36

P1245232

RING

BACKUP RING - seal

1шт.

37

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- body

1шт.

38

P1538155

SPRING

- flow control valve

1шт.

39

P3333043

SCREW

- ball retainer

1шт.

40

P31002

BALL

- check, flow control valve

1шт.

41

P7946210

PISTON

SEAT - ball, flow control valve

1шт.
