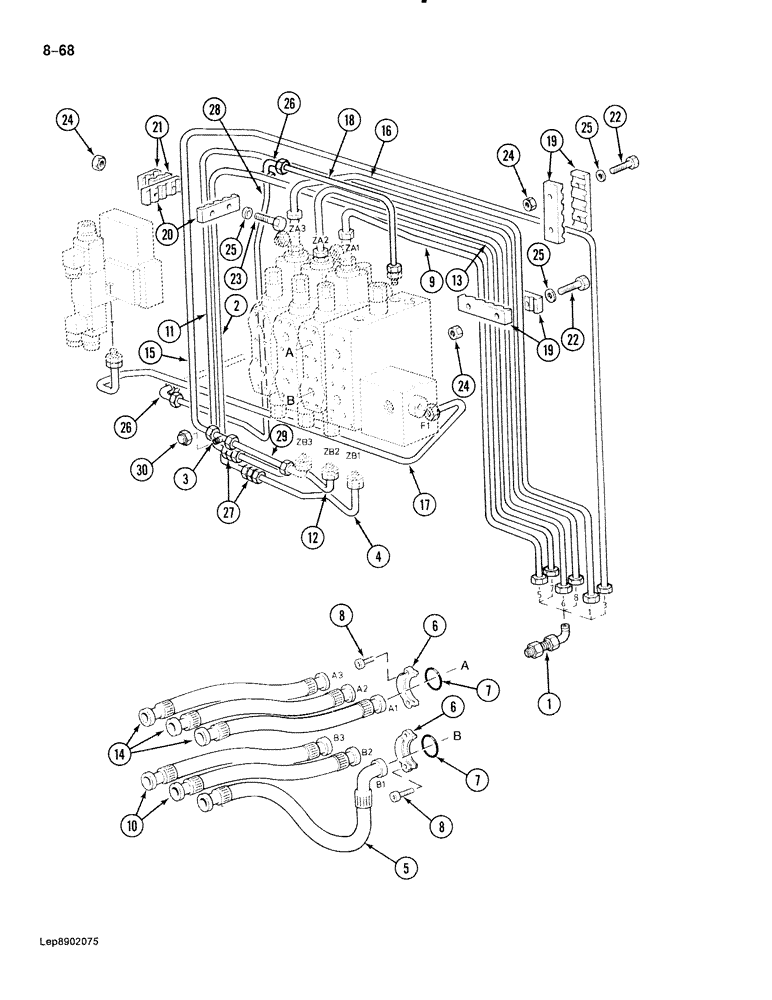

Запчасти Case 888 (8-068) - HYDRAULIC CONTROL CIRCUIT, TO SOLENOID AND ATTACHMENT CONTROL VAVLES, P.I.N. FROM XXXXX AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
P1737008
ANGLE
ELBOW - 90 degree
6шт.
2
P6749191
PIPE
TUBE - control, lower port of boom control section, upper portion
1шт.
3
P937274
TEE
- street
1шт.
4
P6349089
PIPE
TUBE - control, lower port of boom control section, lower portion
1шт.
5
P5431935
HOSE
- 31-1/2", Serial Range: long,-cylinders
1шт.
6
P4024266
CLAMP
SPLIT FLANGE - hose flange
12шт.
7
P1130483
O-RING
- hose flange
6шт.
8
14420331
HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd
24шт.
9
P6249126
PIPE
TUBE - control, upper port of boom control section
1шт.
10
P5931978
HOSE
- 49-3/16", Serial Range: long,-cylinders
2шт.
11
P6749190
PIPE
TUBE - control, lower port of bucket control section, upper section
1шт.
12
P6349090
PIPE
TUBE - control, lower port of bucket control section, lower portion
1шт.
13
P6249127
PIPE
TUBE - control, upper port of bucket control section
1шт.
14
P5931952
HOSE
- 39-3/8", Serial Range: long,-cylinders
3шт.
15
P6749184
PIPE
TUBE - control, lower port of arm control section, upper section
1шт.
16
P6249125
PIPE
TUBE - control, upper port of arm control section
1шт.
17
P6749189
PIPE
TUBE - control, to solenoid control valve
1шт.
18
P7447132
PIPE
TUBE - leak return, at parallel section
1шт.
19
P4620327
SHIN
CLAMP - tube, for five tubes
4шт.
20
P4420368
SHIN
CLAMP - tube, for four tubes
2шт.
21
P4420364
SHIN
CLAMP - tube, for two tubes
2шт.
22
P33822
SCREW
BOLT - hex, 8 mm x 50 mm
5шт.
23
P133849
SCREW
BOLT - hex, 8 mm x 80 mm
1шт.
24
P134596
SAFETY NUT
NUT - hex, self-locking, 8 mm
6шт.
25
P3528794
WASHER
SPACER - bolt, 6 mm thick
6шт.
26
P1737055
ANGLE
ELBOW - 90 degree
2шт.
27
P3237534
UNION
ADAPTER - straight
2шт.
28
P7249173
PIPE
TUBE - leak return, at parallel section
1шт.
29
P4137657
PIPE
TUBE - control, lower part of arm control section, lower section
1шт.
30
P2537406
BLANK-OFF PLUG
CAP - tee
1шт.
Выбрано товаров: 30
