Запчасти Case 888 (8-066) - HYDRAULIC CONTROL CIRCUIT, TO SOLENOID AND ATTACHMENT CONTROL VALVES, P.I.N. FROM XXXXX TO XXXXX (08) - HYDRAULICS

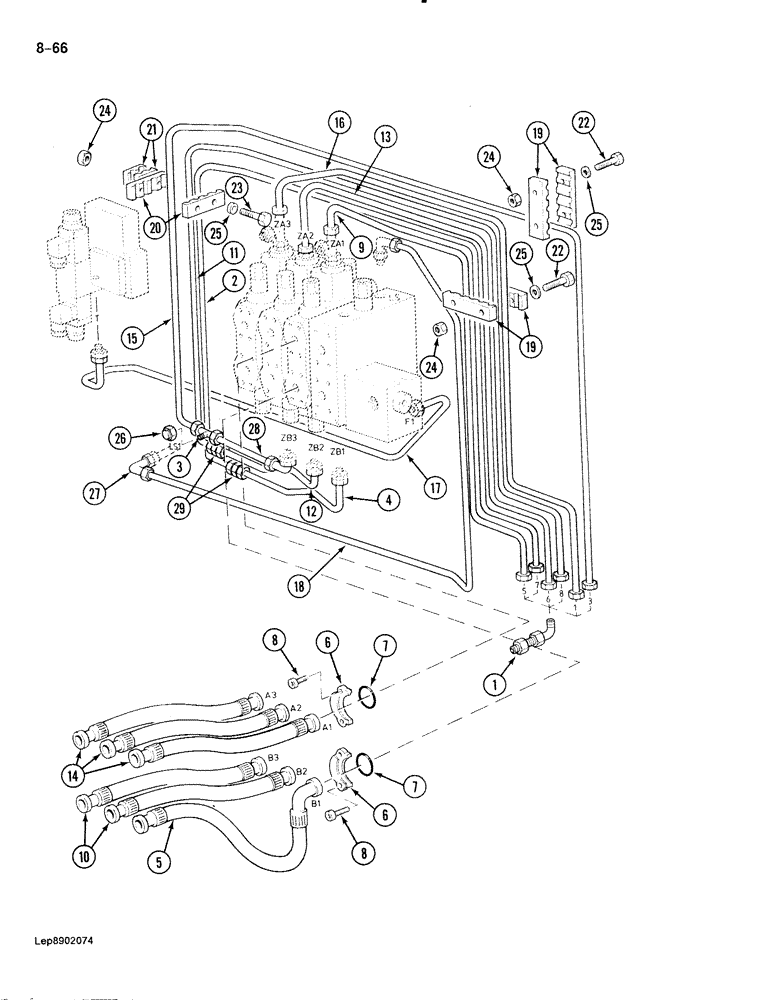

Схема запчастей Case 888 - (8-066) - HYDRAULIC CONTROL CIRCUIT, TO SOLENOID AND ATTACHMENT CONTROL VALVES, P.I.N. FROM XXXXX TO XXXXX (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

P1737008

ANGLE

ELBOW - 90 degree

6шт.

2

P6749191

PIPE

TUBE - control, lower port of boom control section, upper portion

1шт.

3

P937274

TEE

- street

1шт.

4

P6349089

PIPE

TUBE - control, lower port of boom control section, lower portion

1шт.

5

P5431935

HOSE

- 31-1/2", Serial Range: long,-cylinders

1шт.

6

P4024266

CLAMP

SPLIT FLANGE - hose flange

12шт.

7

P1130483

O-RING

- hose flange

6шт.

8

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

24шт.

9

P6249126

PIPE

TUBE - control, upper port of boom control section

1шт.

10

P5931978

HOSE

- 49-3/16", Serial Range: long,-cylinders

2шт.

11

P6749190

PIPE

TUBE - control, lower port of bucket control section, upper section

1шт.

12

P6349090

PIPE

TUBE - control, lower port of bucket control section, lower portion

1шт.

13

P6249127

PIPE

TUBE - control, upper port of bucket control section

1шт.

14

P5931952

HOSE

- 39-3/8", Serial Range: long,-cylinders

3шт.

15

P6749184

PIPE

TUBE - control, lower port of arm control section, upper portion

1шт.

16

P6249125

PIPE

TUBE - control, upper port of arm control section

1шт.

17

P6749189

PIPE

TUBE - control, to solenoid control valve

1шт.

18

P6149188

PIPE

TUBE - leak return, at parallel section

1шт.

19

P4620327

SHIN

CLAMP - tube, for five tubes

4шт.

20

P4420368

SHIN

CLAMP - tube, for four tubes

2шт.

21

P4420364

SHIN

CLAMP - tube, for two tubes

2шт.

22

P33822

SCREW

BOLT - hex, 8 mm x 50 mm

5шт.

23

P133849

SCREW

BOLT - hex, 8 mm x 80 mm

1шт.

24

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

6шт.

25

P3528794

WASHER

SPACER - bolt, 6 mm thick

6шт.

26

P2537406

BLANK-OFF PLUG

CAP - tee

1шт.

27

P1737055

ANGLE

ELBOW - 90 degree

1шт.

28

P4137657

PIPE

TUBE - control, lower part of arm control section, lower section

1шт.

29

P3237534

UNION

ADAPTER - straight

2шт.

Выбрано товаров: 29
