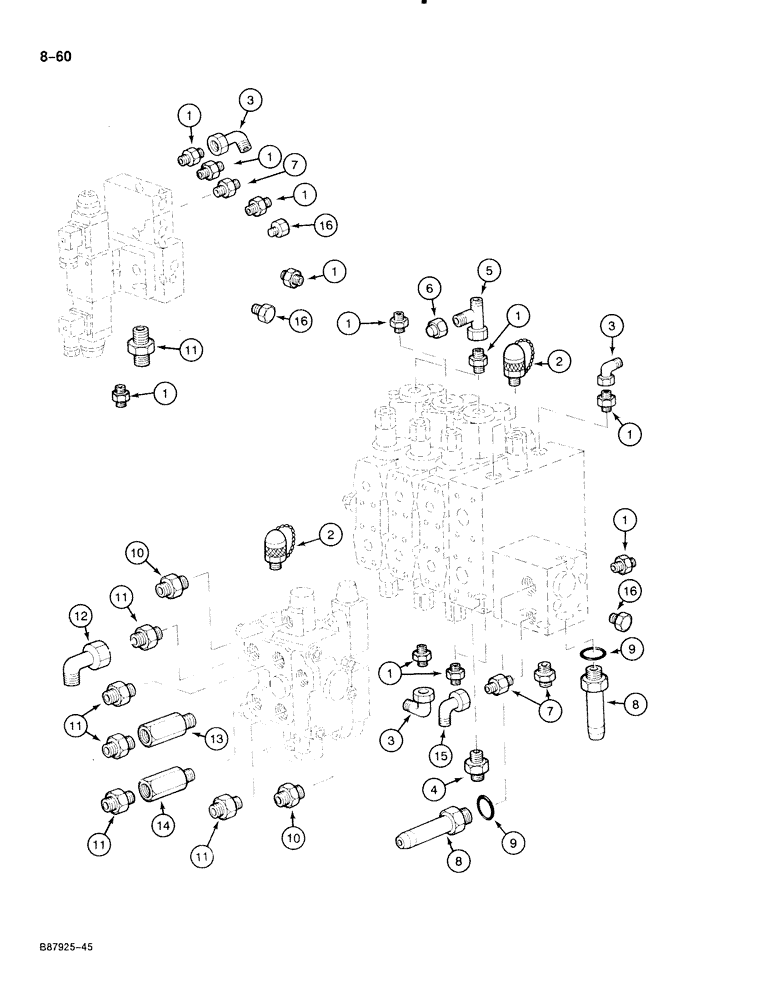

Запчасти Case 888 (8-060) - HYDRAULIC ADAPTERS, SWING, ATTACHMENT, AND SOLENOID CONTROL VALVES (08) - HYDRAULICS

1

P3237530

UNION

ADAPTER - straight

14шт.

P7046042

SEAL

- adapter

1шт.

2

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

2шт.

P7046042

SEAL

- adapter

1шт.

3

P1737018

ANGLE

ELBOW - 90 degree

3шт.

P3237533

UNION

ADAPTER - straight

1шт.

4

P1145268

SEAL

- adapter

1шт.

5

P937295

TEE

- street

3шт.

6

P2537406

BLANK-OFF PLUG

CAP - tee

3шт.

7

P3237532

UNION

ADAPTER - straight

3шт.

P2230418

SEAL

O-RING - adapter

1шт.

8

P3237582

FITTING

ADAPTER - straight, barb hose type

2шт.

9

P5746063

SEAL

- adapter

1шт.

10

P2643388

VALVE POPPET

ADAPTER - straight, with restrictor

2шт.

P7046042

SEAL

- adapter

1шт.

11

P3237533

UNION

ADAPTER - straight

6шт.

P1145268

SEAL

- adapter

1шт.

12

P1737021

ANGLE

ELBOW - 90 degree

1шт.

13

P2643354

VALVE POPPET

ADAPTER - special, restrictor

1шт.

P5746063

SEAL

- adapter

1шт.

14

P2643355

VALVE POPPET

ADAPTER - special, restrictor

1шт.

P5746063

SEAL

- adapter

1шт.

15

P1737020

ANGLE

ELBOW - 90 degree

1шт.

16

P2537447

PLUG

- solenoid valve block

5шт.

P7046042

SEAL

- adapter

1шт.
