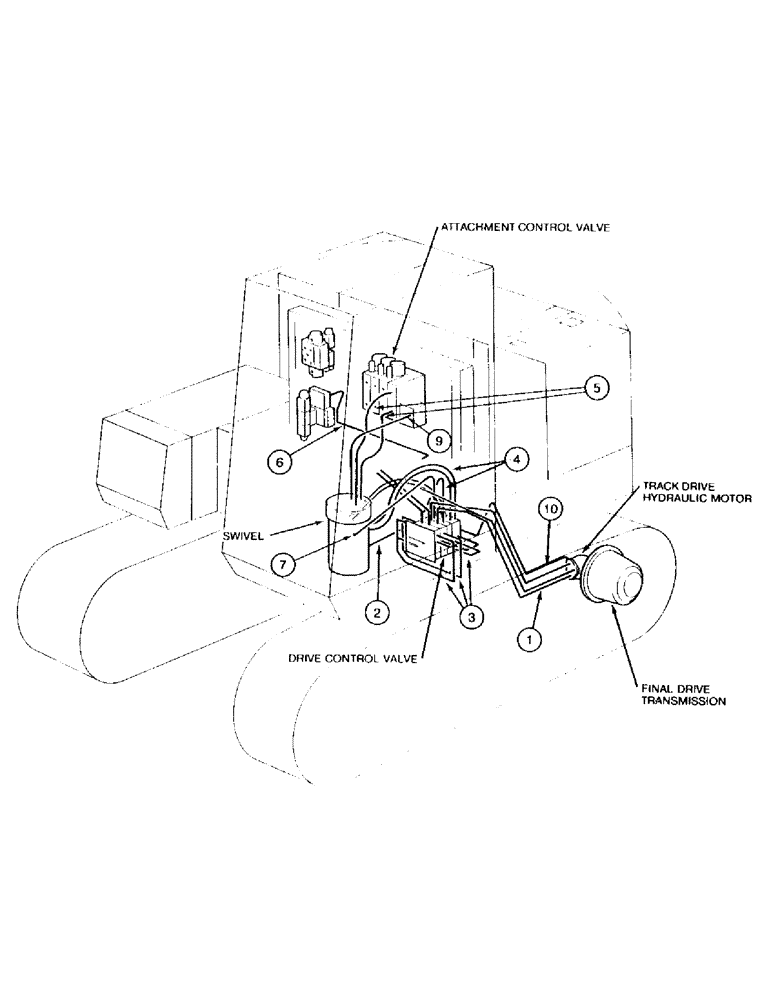

Запчасти Case 888 (1-012) - PICTORIAL INDEX, TRACK DRIVE AND RETURN LINES (00) - PICTORIAL INDEX

1

Tube, Drive Control, Pages 7-15, 7-17

1шт.

2

Hose, Pressure, Pages 7-9, 7-13

1шт.

3

Tube, Pilot and Pressure Sensing, Pages 7-3 - 7-7

1шт.

4

Hose, Pilot Circuit, Pages 7-9 - 7-13

1шт.

5

Hose, Pressure and Return, Pages 8-71, 8-73

1шт.

6

Tube, Pilot, Pages 8-71, 8-73

1шт.

7

Hose, Return to Swivel, Pages 7-9 - 7-13

1шт.

9

Hose, Return Swivel to Block, Pages 8-71, 8-73

1шт.

10

Tube, Brake Release, Pages 7-15, 7-17

1шт.
