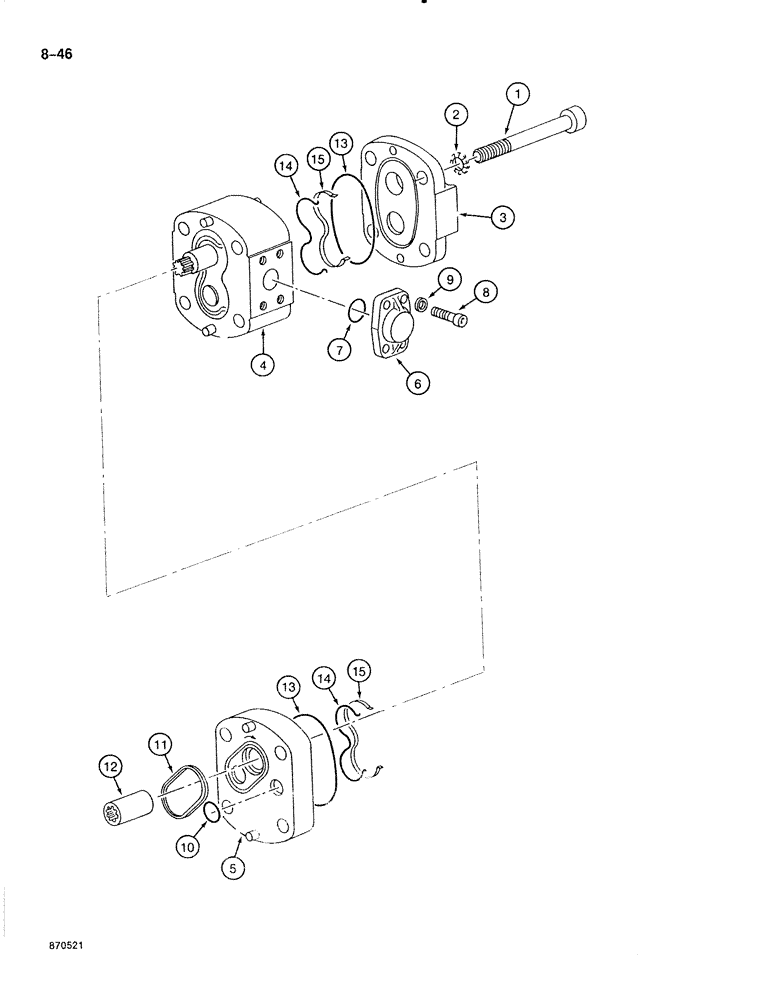

Запчасти Case 888 (8-046) - LOW PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS

P2843545

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - low pressure, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - hex socket, cover and housing

2шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock, cover and housing bolt

2шт.

3

NSS

NOT SOLD SEPARAT

COVER - pump, close end

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR HOUSING ASSEMBLY - includes drive shaft and gears

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - pump, drive end

1шт.

P5137710

SHIN

COVER ASSEMBLY - pump port, Includes: Ref. 6 - 9

2шт.

6

NSS

NOT SOLD SEPARAT

COVER - pump port

1шт.

7

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- cover

1шт.

8

P32911

SCREW

BOLT - hex socket, 6 mm x 20 mm

4шт.

9

P1945385

WASHER

- flat, 6 mm

4шт.

10

P2230469

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- small, drive end cover

1шт.

11

P2230468

O-RING

- large, drive end cover

1шт.

12

P7646232

TRANSMISSION SLEEVE

COUPLING - pump drive shaft

1шт.

P5449612

SEAL PACKAGE

KIT - repair, seal, Include: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - covers to gear housing assembly

2шт.

14

NSS

NOT SOLD SEPARAT

SEAL - gear housing assembly

2шт.

15

NSS

NOT SOLD SEPARAT

PROTECTOR - housing seal

2шт.

P150289

LOCK, CYLINDER

BARREL adopted

1шт.

P1744302

LARGE PLATE

1шт.

P1744303

BODY

1шт.
