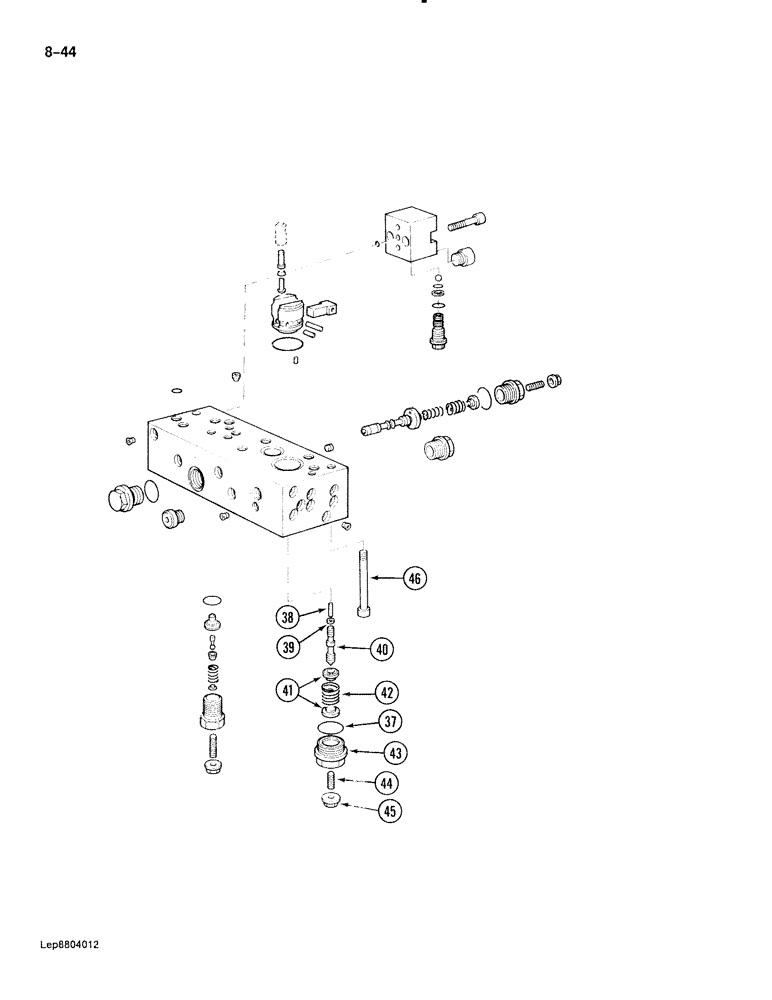

Запчасти Case 888 (8-044) - HIGH PRESSURE HYDRAULIC PUMP, P.I.N. FROM 853.7.05.0001 AND AFTER (08) - HYDRAULICS

REF

INSTRUCTION

REGULATOR BLOCK ASSEMBLY - hydraulic pump, Includes: Ref. 37 - 46

1шт.

P3743330

VALVE

REGULATION VALVE ASSEMBLY - pump assembly, Includes: Ref. 37 - 45

2шт.

37

P2930414

O-RING

- regulation valve

1шт.

38

P6027865

GUIDE

PIN - regulation valve

1шт.

39

P1929058

SKID/SHOE

SEAT - upper

1шт.

40

NSS

NOT SOLD SEPARAT

SPOOL - regulation valve

1шт.

41

P3628806

GUIDE

SEAT - spring

2шт.

42

P1038240

SPRING

- regulation valve

1шт.

43

P3237473

PLUG

- hex head, body

1шт.

44

P3533014

SCREW

- adjusting

1шт.

45

P2434535

NUT

- adjusting

1шт.

46

P632920

SCREW

BOLT - hex socket, 6 mm x 80 mm, grade 10.9

5шт.

P5449643

SEAL PACKAGE

KIT - regulator seal including Ref. 2, 10, 15, 17, 20, 27, 28, 30, 37

1шт.
