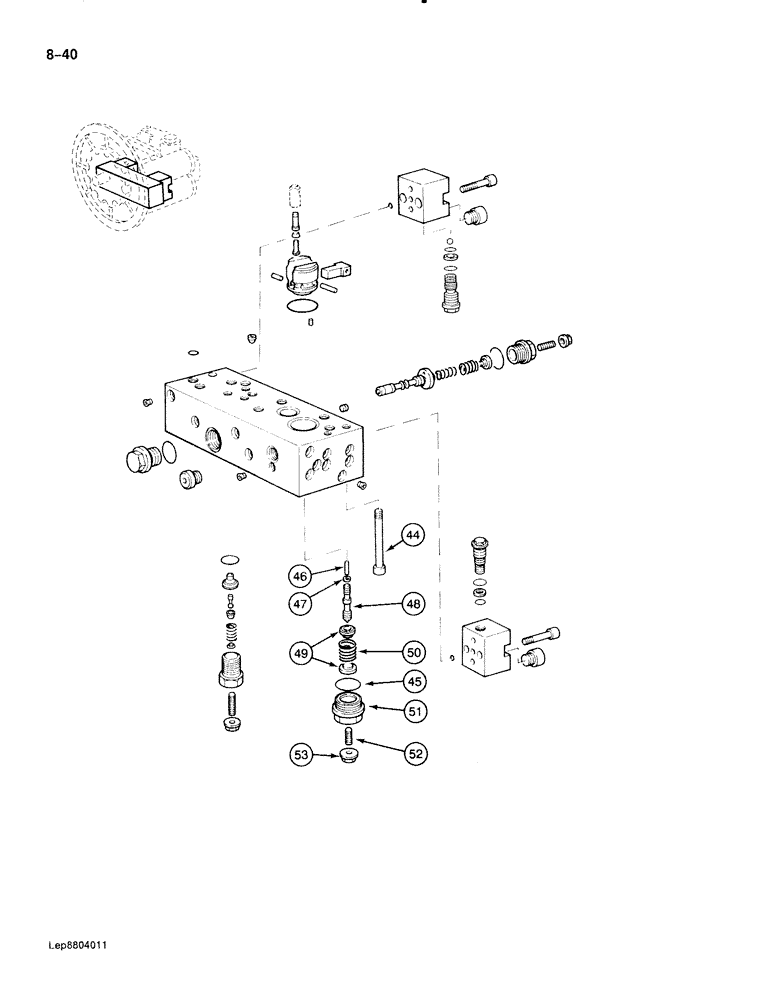

Запчасти Case 888 (8-040) - HIGH PRESSURE HYDRAULIC PUMP, TO SERIAL NUMBER 853.7.04.9999 (08) - HYDRAULICS

REF

INSTRUCTION

REGULATOR BLOCK ASSEMBLY - hydraulic pump, Includes: Ref. 44 - 53

1шт.

44

P632920

SCREW

BOLT - hex socket head, 6 mm x 80 mm, grade 10.9

5шт.

P3743330

VALVE

REGULATION VALVE ASSEMBLY - pump assembly, Includes: Ref. 45 - 53

2шт.

45

P2930414

O-RING

- regulation valve

1шт.

46

P6027865

GUIDE

PING - regulation valve

1шт.

47

P1929058

SKID/SHOE

SEAT - upper

1шт.

48

NSS

NOT SOLD SEPARAT

SPOOL - regulation valve

1шт.

49

P3628806

GUIDE

SEAT - spring

2шт.

50

P1038240

SPRING

- regulation valve

1шт.

51

P3237473

PLUG

- hex, body

1шт.

52

P3533015

SCREW

- adjusting

1шт.

53

P2434535

NUT

- adjusting

1шт.

P5449643

SEAL PACKAGE

KIT - regulator seal including Ref. 2, 10, 15, 17, 27, 30, 36, 37, 39, 45

1шт.
