Запчасти Case 888 (8-038) - HIGH PRESSURE HYDRAULIC PUMP, TO SERIAL NUMBER 853.7.04.9999 (08) - HYDRAULICS

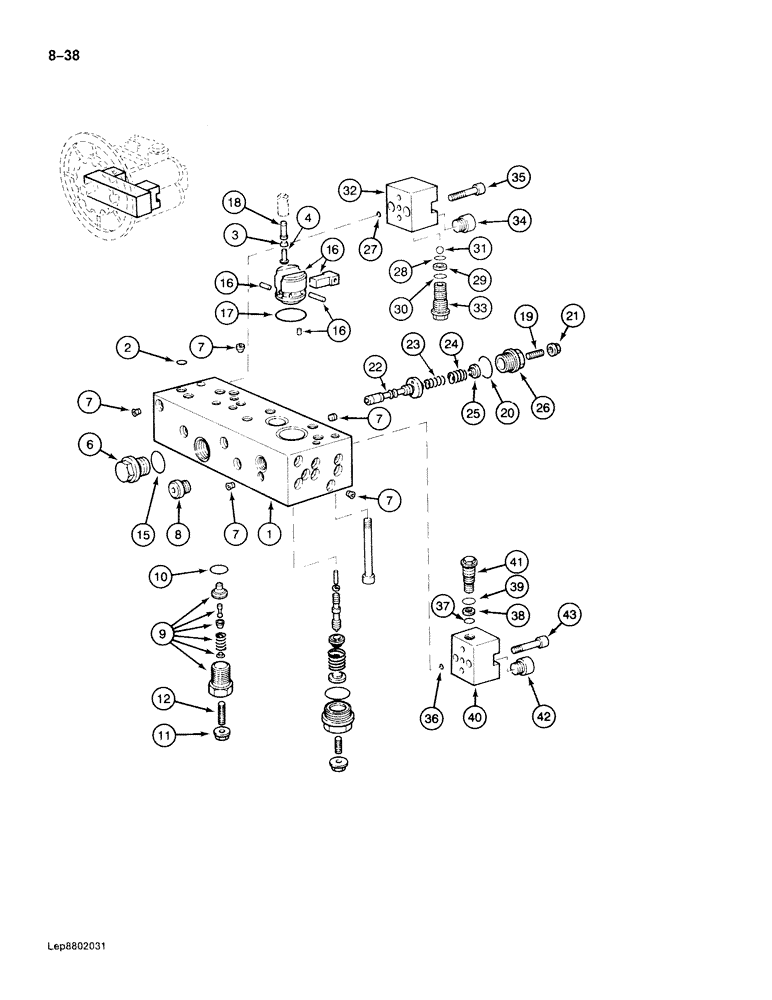

Схема запчастей Case 888 - (8-038) - HIGH PRESSURE HYDRAULIC PUMP, TO SERIAL NUMBER 853.7.04.9999 (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - high pressure, Includes: Ref. 1- 41

1шт.

P3743335

GOVERNOR

REGULATOR BLOCK ASSEMBLY - hydraulic pump (Order P5137792 and P3950164)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - regulator

1шт.

2

P2930413

O-RING

- body

12шт.

3

P1929058

SKID/SHOE

WASHER - pilot valve guide

1шт.

4

P6027865

GUIDE

ROD - pilot valve guide

1шт.

6

P3337428

PLUG

- body, hex

1шт.

7

P3037425

PLUG

- body, hex socket, small

19шт.

8

P3037423

PLUG

- body, hex socket, large

2шт.

9

P4343356

VALVE

- safety valve (Replaces P3743333), Includes: Ref. 10 - 12

2шт.

10

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- safety valve

1шт.

11

P2434535

NUT

- adjusting screw

1шт.

12

P3533015

SCREW

- adjusting

1шт.

15

P130478

O-RING

- plug

1шт.

16

P5242756

LEVER

ASSEMBLY - pilot valve, Includes: Ref. 17

1шт.

17

P1230487

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

- lever assembly

1шт.

18

P1729841

PISTON

- pilot valve

1шт.

19

P3533015

SCREW

- adjusting

1шт.

20

P130478

O-RING

- regulation valve

1шт.

21

P2434535

NUT

- adjusting screw

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - spool

1шт.

23

P1038242

SPRING

- valve

1шт.

24

P1038241

SPRING

- valve

1шт.

25

P6027866

GUIDE

SEAT - retainer

1шт.

26

P3237474

PLUG

- valve

1шт.

P3743334

SELECTOR

CIRCUIT - regulator, Includes: Ref. 27 - 33

1шт.

27

P2930413

O-RING

- selector

3шт.

28

P730371

O-RING

- selector

1шт.

29

P1744301

WASHER

RETAINER - selector

1шт.

30

P2930416

O-RING

- selector

1шт.

31

P31040

BALL

- selector

1шт.

32

NSS

NOT SOLD SEPARAT

BLOCK - selector circuit

1шт.

33

NSS

NOT SOLD SEPARAT

VALVE - selector circuit

1шт.

34

P3037423

PLUG

- selector

3шт.

35

P732980

SCREW

BOLT - hex socket, 8 mm x 40 mm, grade 10.9

4шт.

P4343335

VALVE POPPET

SELECTOR CIRCUIT - regulator, Includes: Ref. 36 - 41

1шт.

36

P2930413

O-RING

- selector

3шт.

37

P730371

O-RING

- selector

1шт.

38

P1744301

WASHER

RETAINER - selector

1шт.

39

P2930416

O-RING

- selector

1шт.

40

NSS

NOT SOLD SEPARAT

BLOCK - selector circuit

1шт.

41

NSS

NOT SOLD SEPARAT

VALVE - selector circuit

1шт.

42

P3037423

PLUG

- selector

3шт.

43

P732980

SCREW

BOLT - hex socket, 8 mm x 40 mm, grade 10.9

4шт.

Выбрано товаров: 44
