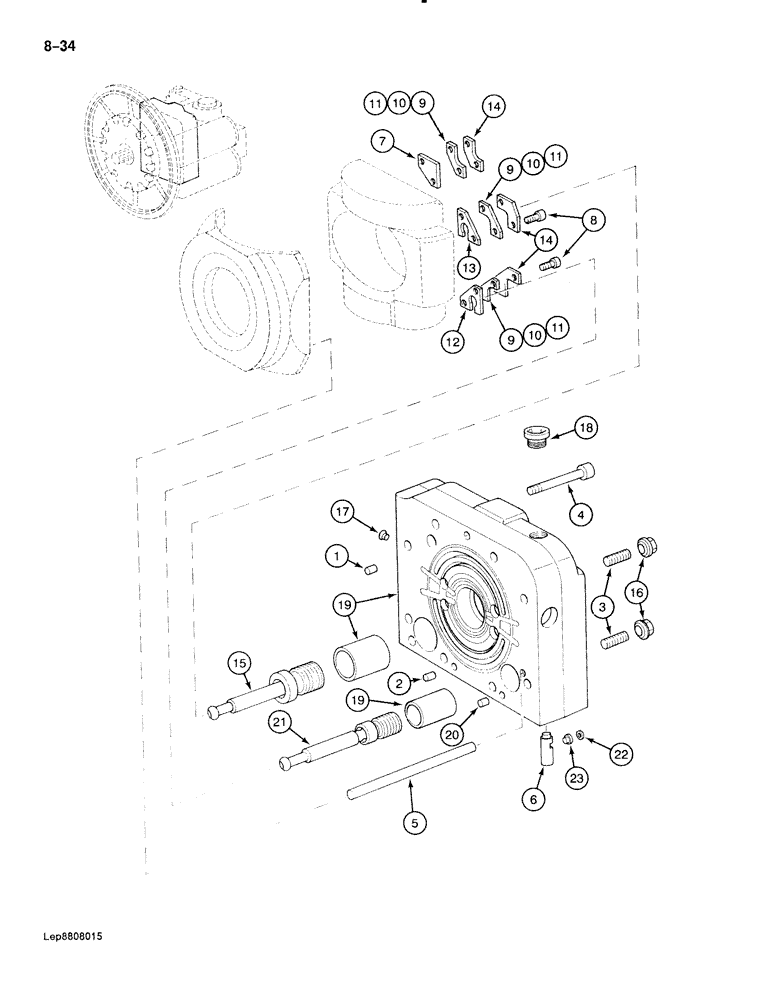

Запчасти Case 888 (8-034) - HIGH PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - high pressure, Includes: Ref. 1 - 25

1шт.

1

P1136003

SPLIT PIN/SAFETY PIN

PIN - housing

1шт.

2

P36090

SPLIT PIN/SAFETY PIN

PIN - housing

1шт.

3

P532832

SCREW

- special, 12 mm x 30 mm

2шт.

4

P1032989

SCREW

BOLT - hex socket, 10 mm x 70 mm, grade 10.9

8шт.

5

P2031835

TUBE

- valve housing to swash plate

1шт.

6

P6027864

CYLINDER

VALVE - pilot

1шт.

7

P1323573

SPACER

- upper, variable swash plate

1шт.

8

P1532921

SCREW

BOLT - hex socket, 6 mm x 10 mm, use with Loctite 245 for mounting

8шт.

9

P1624089

BLOCK

SHIM - 0.05 mm

1шт.

10

P1624090

BLOCK

SHIM - 0.075 mm

1шт.

11

P1624091

BLOCK

SHIM - 0.1 mm

1шт.

12

P1624092

SPACER

- right-hand piston

1шт.

13

P1624093

SPACER

- left-hand piston

1шт.

14

P1624094

LARGE PLATE

RETAINER - spacer

4шт.

15

P7646246

PISTON

- left-hand

1шт.

16

P2434530

NUT

LOCK-NUT - adjusting screw

2шт.

17

P3037419

PLUG

- housing, use with Loctite 648 for mounting

2шт.

18

P3037423

PLUG

- housing, use with Loctite 648 for mounting

1шт.

19

P7946286

HEAD (CYLINDER)

HOUSING - valve (Prior to september 1987) (Order P8546254)

1шт.

19

P8546254

HEAD (CYLINDER)

HOUSING - valve (From october 1987 and after)

1шт.

20

P36089

SPLIT PIN/SAFETY PIN

PIN - housing

1шт.

21

P6027863

PISTON

- right-hand

1шт.

22

P3237472

PLUG

- pilot valve

1шт.

23

P1136004

SPLIT PIN/SAFETY PIN

PIN - pilot valve

1шт.
