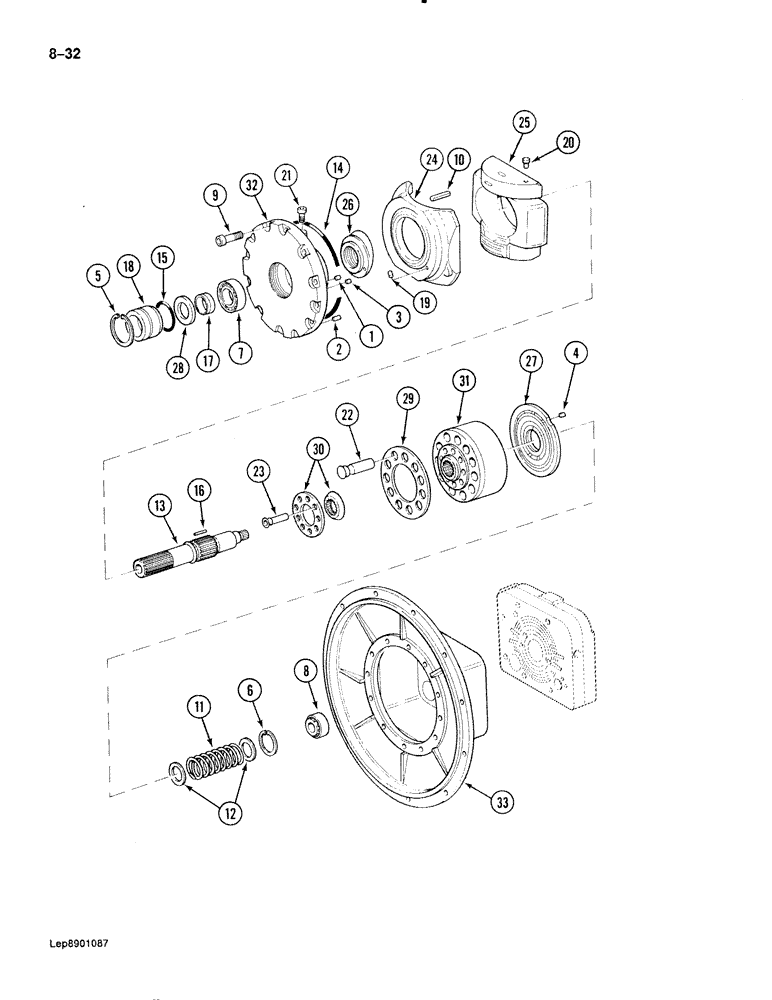

Запчасти Case 888 (8-032) - HIGH PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS

P2843555

PUMP

HYDRAULIC PUMP ASSEMBLY - high pressure, Includes: Ref. 1 - 33

1шт.

1

P1136002

SPLIT PIN/SAFETY PIN

PIN -, Serial Range: cover-plate

1шт.

2

P1136003

SPLIT PIN/SAFETY PIN

PIN -, Serial Range: cover-housing

1шт.

3

P36055

DEUTZ PART

PIN -, Serial Range: cover-yoke

1шт.

4

P36089

SPLIT PIN/SAFETY PIN

PIN -, Serial Range: plate-housing

2шт.

5

P36245

CIRCLIP

SNAP RING - bushing

1шт.

6

P536217

RING, SNAP

SNAP RING - retainer

1шт.

7

P539848

BEARING

- output shaft, at front cover

1шт.

8

P539849

BEARING

- output shaft, at housing

1шт.

9

P732994

SCREW

BOLT - hex socket, 10 mm x 50 mm, grade 10.9

12шт.

10

P36088

SPLIT PIN/SAFETY PIN

PIN -, Serial Range: plate-plate

2шт.

11

P1038203

SPRING

- barrel

1шт.

12

P1846369

WASHER

RETAINER - spring

2шт.

13

P1928015

SHAFT

- drive, piston pump, Serial Range: -853.7.04.0034

1шт.

When ordering shaft, plate assembly or barrel, also order 1 shaft P1928023, 1 plate assembly P1744302, 1 barrel P1502891.

1шт.

13

P1928023

SHAFT

- drive, piston pump, Start Serial: 853.7.04.0035

1шт.

14

P2230479

O-RING

- cover

1шт.

15

P2230486

O-RING

- retainer

1шт.

16

P2527215

NEEDLE

- shaft to plate assembly

3шт.

17

P1929038

BUSHING

- bearing

1шт.

18

P2728944

BUSHING

RETAINER - seal

1шт.

19

P3037417

PLUG

- plate

2шт.

20

P3037418

PLUG

- plate

1шт.

21

P3333020

SCREW

BOLT - special, use loctite 245

2шт.

22

P6027862

PISTON

- barrel, outer, large

11шт.

23

P6027802

PISTON

- barrel, inner, small

9шт.

24

P7646240

CYLINDER END CAP

PLATE - swash (Order P944399), Serial Range: -853.6.11.9999

1шт.

24

P944399

CYLINDER END CAP

PLATE - swash, Start Serial: 853.6.12.0001

1шт.

25

P7946284

PLATE, THRUST

PLATE - swash variable

1шт.

26

P7646242

PLATE, THRUST

YOKE - swing

1шт.

27

P150216

DISTRIBUTOR

PLATE - wafer

1шт.

28

P8046067

GASKET

SEAL - shaft, front cover

1шт.

29

P150214

KNIFE WEAR PLATE

PLATE - piston pump shoe

1шт.

30

P7946285

KNIFE WEAR PLATE

PLATE ASSEMBLY - piston pump shoe, Serial Range: -853.7.04.0034

1шт.

When ordering shaft, plate assembly or barrel, also order 1 shaft P1928023, 1 plate assembly P1744302, 1 barrel P1502891.

1шт.

30

P1744302

LARGE PLATE

PLATE ASSEMBLY - piston pump shoe, Start Serial: 853.7.04.0035

1шт.

31

P150215

LOCK, CYLINDER

BARREL - cylinder, Serial Range: -853.7.04.0034

1шт.

When ordering shaft, plate assembly or barrel, also order 1 shaft P1928023, 1 plate assembly P1744302, 1 barrel P1502891.

1шт.

31

P150289

LOCK, CYLINDER

BARREL - cylinder, Start Serial: 853.7.04.0035

1шт.

32

P150213

CYLINDER END CAP

COVER - pump assembly

1шт.

33

P5140323

HOUSING

- pump assembly (Order P150290), Serial Range: -853.6.09.9999

1шт.

33

P150290

HOUSING

- pump assembly, Start Serial: 853.06.10.0001

1шт.
