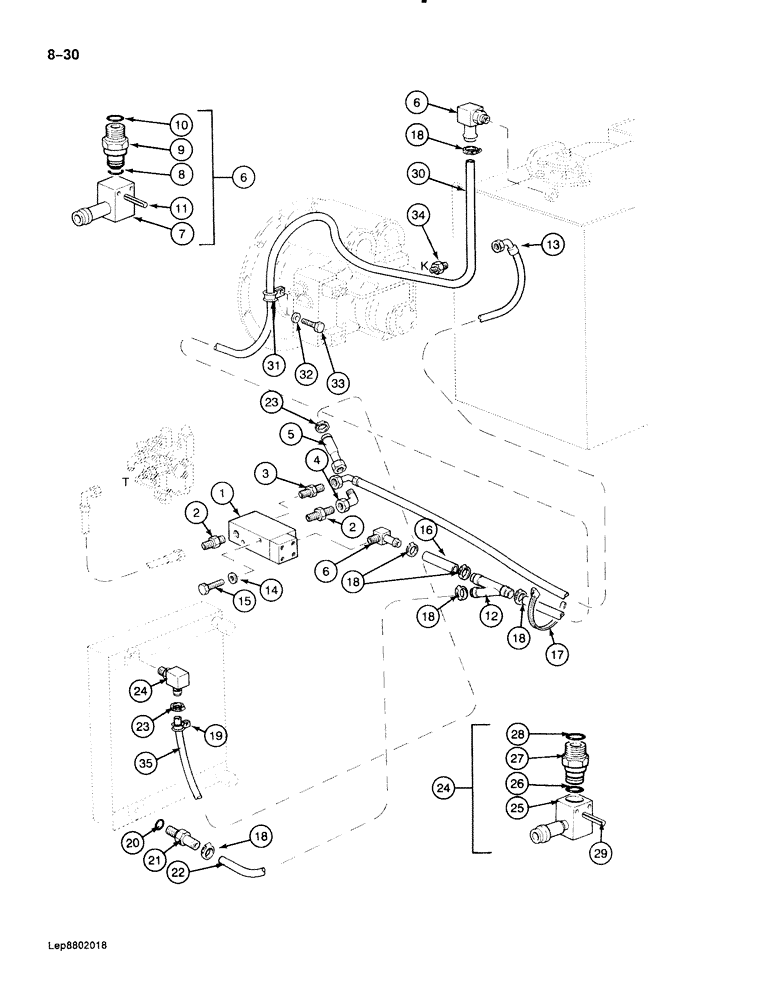

Запчасти Case 888 (8-030) - HYDRAULIC PUMP LINES, THERMOSTAT-CONTROLLED VALVE OPTION (08) - HYDRAULICS

1

REF

INSTRUCTION

THERMOSTAT-CONTROLLED VALVE - return, parts list see figure 8-58

1шт.

2

P4037597

UNION

ADAPTER - straight

2шт.

P5746063

SEAL

- adapter

1шт.

3

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

- adapter

1шт.

4

P1737021

ANGLE

ELBOW - 90 degree

1шт.

5

P5137757

TRANSMISSION SLEEVE

COUPLING - return, at oil cooler

1шт.

6

P5137722

FITTING

ADAPTER ASSEMBLY - return hoses, at valve and reservoir, Includes: Ref. 7 - 11

2шт.

7

P5137721

BODY

- adapter

1шт.

8

P430411

O-RING

- adapter

1шт.

9

P4037541

LARGE PIN

ADAPTER - straight

1шт.

10

P5746063

SEAL

- adapter

1шт.

11

P35725

SPLIT PIN/SAFETY PIN

ROLL PIN - adapter body

2шт.

12

P3750197

MANIFOLD

- cooler return

1шт.

13

P5431962

HOSE

- 55-1/8" long, Serial Range: return-valve

1шт.

14

P4328730

WASHER

SPACER - bolt, 20 mm thick

2шт.

15

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

2шт.

16

REF

INSTRUCTION

HOSE - adapter to manifold, 9-15/16" long, cut from P1103635

1шт.

17

P136922

CLAMP

TIE STRAP - hose, 13-7/8" long

2шт.

18

P36998

COLLAR CLAMP

CLAMP - hose, small

6шт.

19

P1736988

CLAMP

- hose, large

1шт.

20

P5746063

SEAL

- adapter

1шт.

21

P3237582

FITTING

ADAPTER - straight, barb hose type

1шт.

22

REF

INSTRUCTION

HOSE - cooler to manifold, 39-3/8" long, cut from P1103635

1шт.

23

P36902

COLLAR CLAMP

CLAMP - hose, large

2шт.

24

P5137755

FITTING

ADAPTER ASSEMBLY - return hoses, at pump and reservoir, Includes: Ref. 25 - 29

2шт.

25

P5137758

BODY

- adapter

1шт.

26

P430411

O-RING

- adapter

1шт.

27

P4037541

LARGE PIN

ADAPTER - straight

1шт.

28

P5746063

SEAL

- adapter

1шт.

29

P35725

SPLIT PIN/SAFETY PIN

ROLL PIN - adapter body

2шт.

30

REF

INSTRUCTION

HOSE - manifold to reservoir, 49-1/4" long, cut from P1103635

1шт.

31

P51921

CLAMP

- hose

1шт.

32

P4328796

WASHER

SPACER - bolt, 7 mm thick

1шт.

33

P833802

SCREW

BOLT - hex, 10 mm x 50 mm

1шт.

34

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

- adapter, not shown

1шт.

35

REF

INSTRUCTION

HOSE - cooler to coupling, 39-3/8" long, cut from P1103645

1шт.
