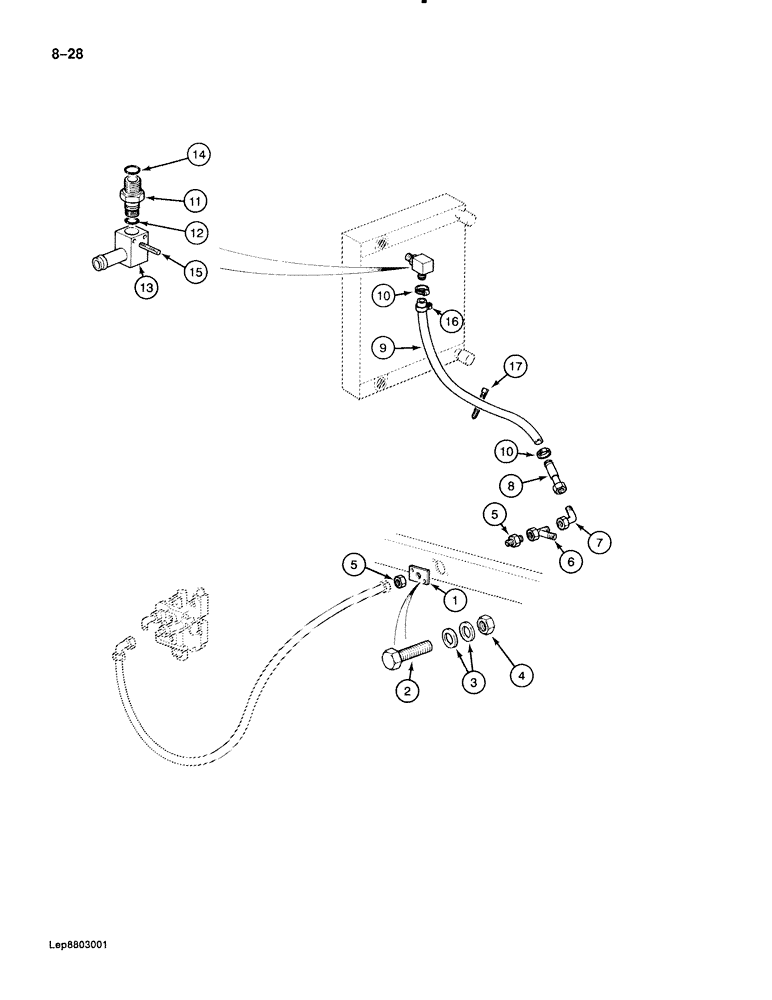

Запчасти Case 888 (8-028) - HYDRAULIC PUMP LINES, SWING VALVE RETURN LINES, P.I.N. FROM XXXXX AND AFTER (08) - HYDRAULICS

1

P2023285

LARGE PLATE

BRACKET - mounting, adapter

1шт.

2

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

2шт.

3

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

4

P34598

SAFETY NUT

NUT - self-locking 10 mm

2шт.

5

P3237570

UNION

ADAPTER - bulkhead type, includes hex nut

1шт.

6

P937297

TEE

- return, to oil cooler

1шт.

7

P1737021

ANGLE

ELBOW - 90 degree

1шт.

8

P4250112

TRANSMISSION SLEEVE

COUPLING - return, at oil cooler (Replaces P5137757)

1шт.

9

REF

INSTRUCTION

HOSE - return, at oil cooler, 35-7/16" long, cut from P1103645

1шт.

10

P36998

COLLAR CLAMP

CLAMP - hose, large (Replaces P36902)

2шт.

P5137755

FITTING

ADAPTER ASSEMBLY - return hose, Includes: Ref. 11- 13

1шт.

11

P4037541

LARGE PIN

ADAPTER - straight

1шт.

12

P430411

O-RING

- adapter

1шт.

13

P5137758

BODY

- adapter

1шт.

14

P5746063

SEAL

- adapter, Includes: Ref. 15

1шт.

15

P35725

SPLIT PIN/SAFETY PIN

ROLL PIN - adapter body

1шт.

16

P1736988

CLAMP

- hose, large

1шт.

17

P136922

CLAMP

TIE STRAP - hose, 13-7/8" long

2шт.
