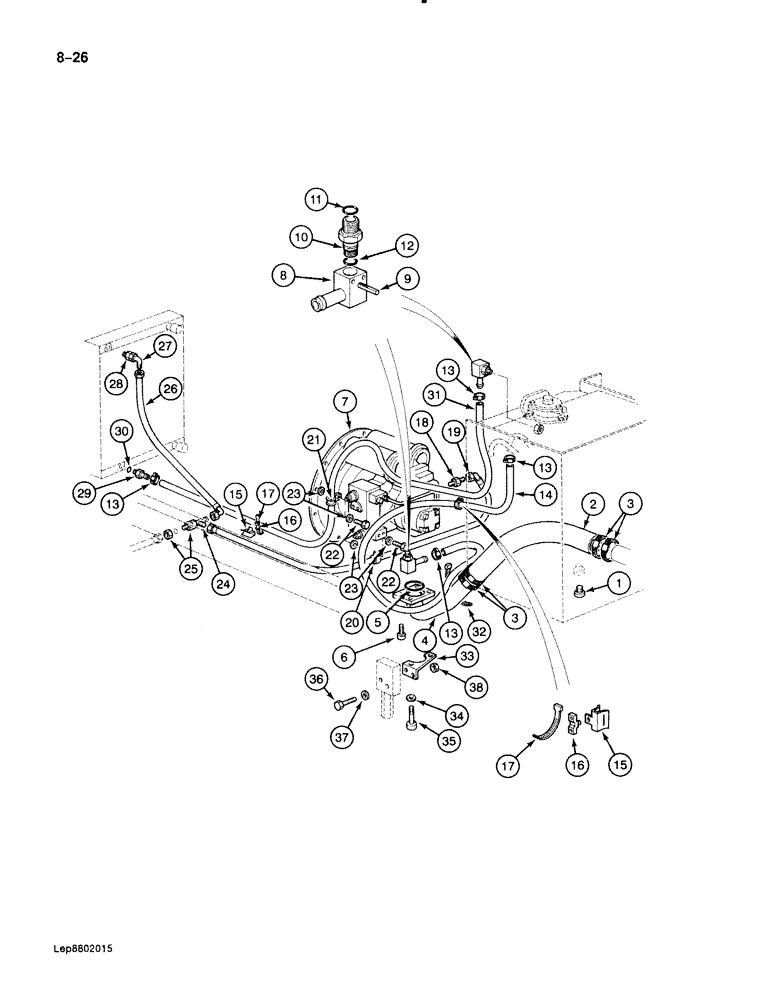

Запчасти Case 888 (8-026) - HYDRAULIC PUMP LINES, PRESSURE AND COOLER RETURN LINES, P.I.N. FROM XXXXX AND AFTER (08) - HYDRAULICS

1

P2537429

PLUG

- reservoir drain

1шт.

P5746063

SEAL

- drain plug

1шт.

2

P131988

LARGE HOSE

HOSE - suction, reservoir to tube at pump

1шт.

3

P136902

COLLAR CLAMP

CLAMP - suction hose

4шт.

4

P3450101

MANIFOLD

TUBE AND PLATE - suction, at pump

1шт.

5

P930454

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

- suction tube

1шт.

6

P32941

SCREW

BOLT - hex socket, 12 mm x 25 mm

2шт.

7

REF

INSTRUCTION

PUMP ASSEMBLY - main hydraulic, see figure 8-32

1шт.

P5137722

FITTING

ADAPTER ASSEMBLY - return hoses, at pump and reservoir, Includes: Ref. 8 - 12

2шт.

8

P5137721

BODY

- adapter

1шт.

9

P35725

SPLIT PIN/SAFETY PIN

ROLL PIN - adapter body

2шт.

10

P4037541

LARGE PIN

ADAPTER - straight

1шт.

11

P5746063

SEAL

- adapter

1шт.

12

P430411

O-RING

- adapter

1шт.

13

P36998

COLLAR CLAMP

CLAMP - hose

4шт.

14

REF

INSTRUCTION

HOSE - return, pump to reservoir, 49-3/16" long, cut from P1103635

1шт.

15

P2036902

CLASP

CLIP - retainer

2шт.

16

P2036939

CLASP

RETAINER - tie strap

2шт.

17

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

2шт.

18

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

- adapter

1шт.

19

P5431962

HOSE

- 55-1/8" long, Serial Range: return-tee

1шт.

20

P1536969

CLAMP

- hose, small

1шт.

21

P51959

CLAMP

- hose, large

1шт.

22

P833802

SCREW

BOLT - hex, 10 mm x 50 mm

2шт.

23

P4328796

WASHER

SPACER - bolt, 7 mm thick

4шт.

24

P937297

TEE

- return, to oil cooler

1шт.

25

P3237570

UNION

ADAPTER - bulkhead type, includes hex nut

1шт.

26

P5431966

HOSE

- 39-3/8" long, return, at oil cooler, Serial Range: -XXXXX

1шт.

27

P1737021

ANGLE

ELBOW - 90 degree, Serial Range: -XXXXX

1шт.

28

P4037597

UNION

ADAPTER - straight, Serial Range: -XXXXX

1шт.

P5746063

SEAL

- adapter

1шт.

29

P3237582

FITTING

ADAPTER - straight, barb hose type

1шт.

30

P5746063

SEAL

- adapter

1шт.

31

REF

INSTRUCTION

HOSE - cooler return, 98-1/2" long, cut from P1103635

1шт.

32

P136922

CLAMP

TIE STRAP - hose, 13-7/8" long

1шт.

33

P5125686

SUPPORT

BRACKET - mounting valve, Serial Range: -74418

1шт.

33

P5125686

SUPPORT

BRACKET - mounting valve, Serial Range: 15201-15262

1шт.

33

P5125686

SUPPORT

BRACKET - mounting valve, Serial Range: 15314-15342

1шт.

33

P5225656

SUPPORT

BRACKET - mounting valve, Serial Range: 15263-15313

2шт.

34

P4328797

WASHER

SPACER - bolt, 8 mm thick

2шт.

35

P1332910

SCREW

BOLT - hex socket, 12 mm x 35 mm, grade 10.9

2шт.

36

P733038

SCREW

BOLT - hex, 6 mm x 40 mm

2шт.

37

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

38

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

2шт.
