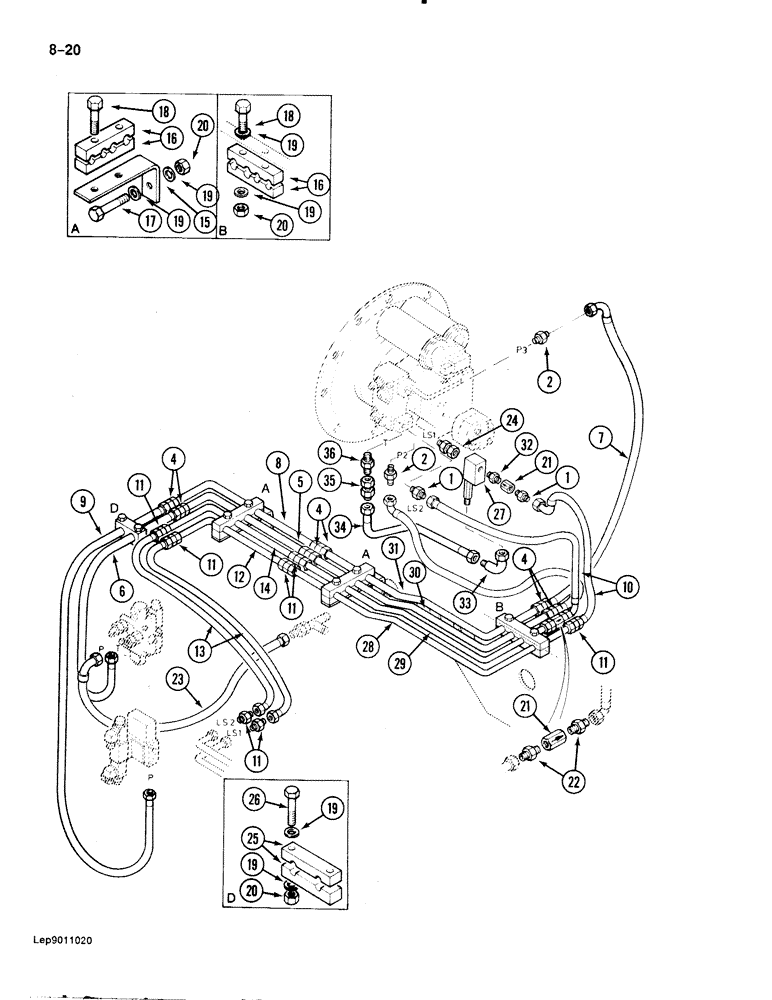

Запчасти Case 888 (8-020) - HYDRAULIC PUMP LINES, PUMP TO SWING VALVE, SOLENOID VALVE AND SWIVEL, P.I.N. FROM 15314 TO 15342 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
P4037544
UNION
ADAPTER - straight
2шт.
P7046042
SEAL
- adapter
1шт.
2
P3237533
UNION
ADAPTER - straight
2шт.
P1145268
SEAL
- adapter
1шт.
3
P5431967
HOSE
- 24-13/16" long, pressure, pump to swing control valve
1шт.
4
P3237537
UNION
ADAPTER - straight
6шт.
5
P7147188
PIPE
TUBE - pressure, to swing control valve
1шт.
6
P5431932
HOSE
- 49-3/6" long, pressure, to swing control valve
1шт.
7
P6531958
HOSE
- 31-1/2" long, pressure, pump to solenoid valve
1шт.
8
P7147187
PIPE
TUBE - pressure, to swing control valve
1шт.
9
P5931970
HOSE
- 24-13/16" long, pressure, to solenoid valve
1шт.
10
P6531928
HOSE
- 19-11/16" long, leak, Serial Range: return-pump
2шт.
11
P3237534
UNION
ADAPTER - straight
6шт.
12
P7447124
PIPE
TUBE - leak return cover
1шт.
13
P5931967
HOSE
- 15-3/4" long, leak return
2шт.
14
P7447125
PIPE
TUBE - leak return inner
1шт.
15
P4825654
SUPPORT
BRACKET - clamp support
2шт.
16
P4620368
SHIN
CLAMP - tube
6шт.
17
P933883
SCREW
BOLT - hex, 10 mm x 55 mm
2шт.
18
P33833
SCREW
BOLT - hex, 10 mm x 75 mm
6шт.
19
P3528795
WASHER
SPACER - bolt, 7 mm thick
14шт.
20
P34598
SAFETY NUT
NUT - hex, self-locking
10шт.
21
REF
INSTRUCTION
FILTER ASSEMBLY - leak return, see figure 8-54
1шт.
22
P3237530
UNION
ADAPTER - straight
2шт.
P7046042
SEAL
- adapter
1шт.
23
P5431962
HOSE
- 55-1/8" long, return, swing control, Serial Range: valve-tee
1шт.
25
P4820306
SHIN
CLAMP - tube
2шт.
26
P933808
SCREW
BOLT - hex 10 mm x 90 mm
2шт.
27
REF
INSTRUCTION
VALVE - leak return, see figure 8-52
1шт.
28
P6449034
PIPE
TUBE - leak return, outer
1шт.
29
P6449034
PIPE
TUBE - leak return, inner
1шт.
30
P7049187
PIPE
TUBE - pressure to swing control valve
1шт.
31
P7049188
PIPE
TUBE - pressure to swing control valve
1шт.
32
P3237581
UNION
ADAPTER - straight
1шт.
33
P1737018
ANGLE
ELBOW - 90 degree
1шт.
34
P5431949
HOSE
- 19-3/4" long, return valve
1шт.
35
P637380
RESTRICTOR
ADAPTER - straight
1шт.
36
P3237583
UNION
ADAPTER - straight
1шт.
P1145268
SEAL
- adapter
1шт.
Выбрано товаров: 39
