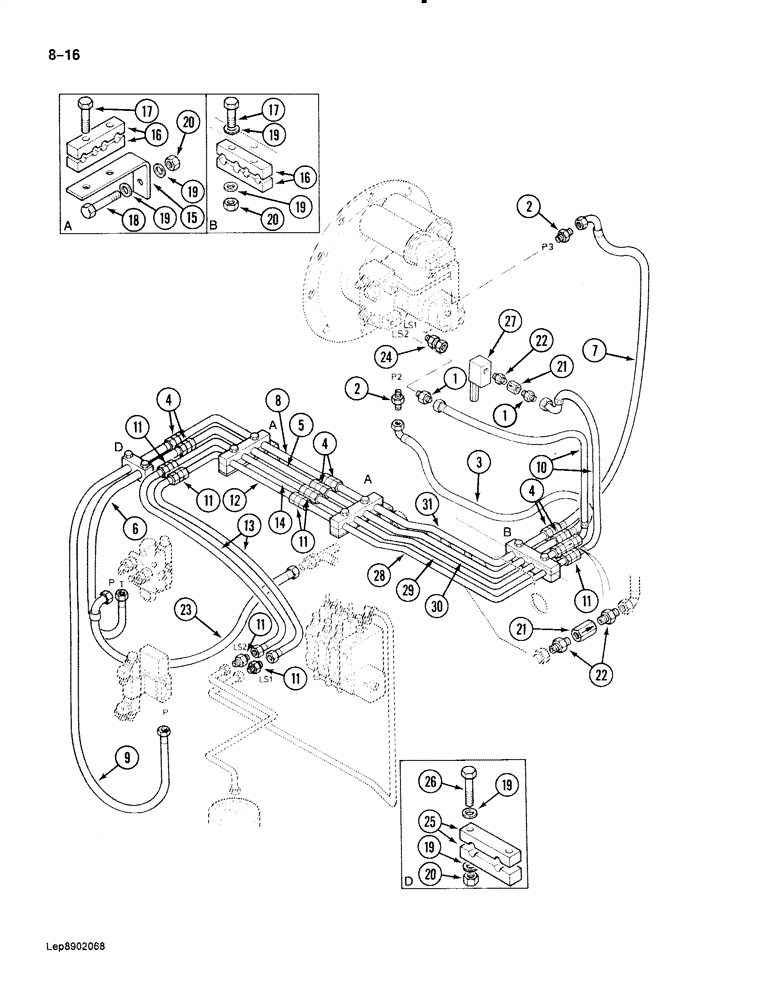

Запчасти Case 888 (8-016) - HYDRAULIC PUMP LINES, PUMP TO SWING VALVE, SOLENOID VALVE AND SWIVEL, P.I.N. FROM XXXXX TO 15262 (08) - HYDRAULICS

1

P4037544

UNION

ADAPTER - straight

2шт.

P7046042

SEAL

- adapter

1шт.

2

P3237533

UNION

ADAPTER - straight

2шт.

P1145268

SEAL

- adapter

1шт.

3

P5431967

HOSE

- 24-13/16" long, pressure, pump to swing control valve

1шт.

4

P3237537

UNION

ADAPTER - straight

6шт.

5

P7147188

PIPE

TUBE - pressure, to swing control valve

1шт.

6

P5431932

HOSE

- 49-3/6" long, pressure, to swing control valve

1шт.

7

P6531958

HOSE

- 31-1/2" long, pressure, pump to solenoid valve

1шт.

8

P7147187

PIPE

TUBE - pressure, to swing control valve

1шт.

9

P5931970

HOSE

- 19-11/16" long, pressure, to solenoid valve

1шт.

10

P6531928

HOSE

- 19-11/16" long, leak, Serial Range: return-pump

2шт.

11

P3237534

UNION

ADAPTER - straight

6шт.

12

P7447124

PIPE

TUBE - leak return outer (Replaces P7147186)

1шт.

13

P5931967

HOSE

- 15-3/4" long, leak return

2шт.

14

P7447125

PIPE

TUBE - leak return inner (Replaces P7147186)

1шт.

15

P4825654

SUPPORT

BRACKET - clamp support

2шт.

16

P4620368

SHIN

CLAMP - tube

6шт.

17

P933883

SCREW

BOLT - hex, 10 mm x 55 mm

2шт.

18

P33833

SCREW

BOLT - hex, 10 mm x 75 mm

6шт.

19

P3528795

WASHER

SPACER - bolt, 7 mm thick

14шт.

20

P34598

SAFETY NUT

NUT - hex, self-locking

10шт.

21

REF

INSTRUCTION

FILTER ASSEMBLY - leak return, see figure 8-54

2шт.

22

P3237530

UNION

ADAPTER - straight

3шт.

P7046042

SEAL

- adapter

1шт.

23

P5431962

HOSE

- 55-1/8" long, return, swing control, Serial Range: valve-tee

1шт.

24

P3237554

FITTING

ADAPTER - straight

1шт.

25

P4820306

SHIN

CLAMP - tube

2шт.

26

P33824

SCREW

BOLT - hex 10 mm x 100 mm

2шт.

27

REF

INSTRUCTION

VALVE - leak return, see figure 8-48

28шт.

P6449034

PIPE

TUBE - leak return, outer (Replaces P6149079)

1шт.

29

P6449034

PIPE

TUBE - leak return, inner (Replaces P6149079)

1шт.

30

P7049187

PIPE

TUBE - pressure to swing control valve

1шт.

31

P7049188

PIPE

TUBE - pressure to swing control valve

1шт.
