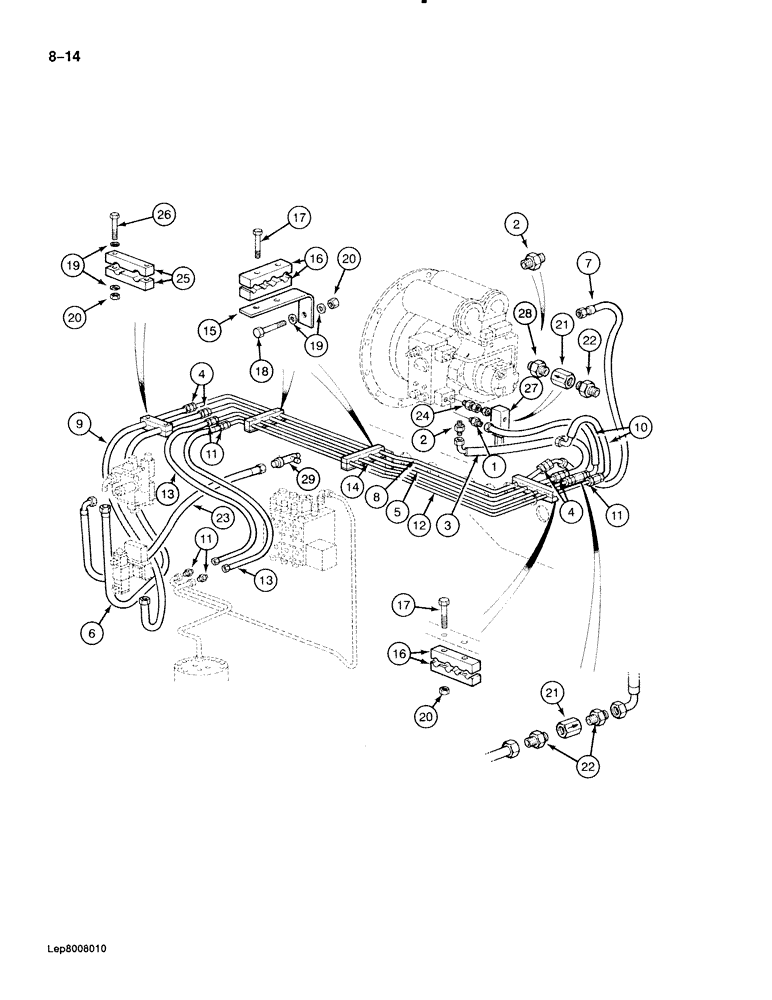

Запчасти Case 888 (8-014) - HYDRAULIC PUMP LINES, PUMP TO SWING VALVE, SOLENOID VALVE AND SWIVEL, P.I.N. FROM XXXXX TO XXXXX (08) - HYDRAULICS

1

P4037544

UNION

ADAPTER - straight

2шт.

P7046042

SEAL

- adapter

1шт.

2

P3237533

UNION

ADAPTER - straight

2шт.

P1145268

SEAL

- adapter

1шт.

3

P5431967

HOSE

- 24-13/16" long, pressure, pump to swing control valve

1шт.

4

P3237537

UNION

ADAPTER - straight

4шт.

5

P6249179

PIPE

TUBE - pressure, to swing control valve

1шт.

6

P5431932

HOSE

- 49-3/16" long, pressure to swing control valve

1шт.

7

P6531958

HOSE

- 31-1/2" long, pressure, pump to solenoid valve

1шт.

8

P6249180

PIPE

TUBE - pressure, to solenoid valve

1шт.

9

P5931970

HOSE

- 24-13/16" long, pressure to solenoid valve

1шт.

10

P6531928

HOSE

- 19-11/16" long, leak, Serial Range: return-pump

2шт.

11

P3237534

UNION

ADAPTER - straight

4шт.

12

P6249181

PIPE

TUBE - leak return, outer

1шт.

13

P5931967

HOSE

- 15-3/4" long, leak return

2шт.

14

P6249182

PIPE

TUBE - leak return, inner

1шт.

15

P4825654

SUPPORT

BRACKET - clamp support

2шт.

16

P4620368

SHIN

CLAMP - tube

6шт.

17

P933883

SCREW

BOLT - hex, 10 mm x 55 mm

6шт.

18

P933835

SCREW

BOLT - hex, 10 mm x 70 mm

2шт.

19

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

20

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

21

REF

INSTRUCTION

FILTER ASSEMBLY - leak return, see figure 8-54

2шт.

22

P3237530

UNION

ADAPTER - straight

3шт.

P7046042

SEAL

- adapter, not shown

1шт.

23

P5431962

HOSE

- 55-1/8" long, return, swing control, Serial Range: valve-tee

1шт.

24

P3237554

FITTING

ADAPTER - straight

4шт.

25

P4820306

SHIN

CLAMP - tube

2шт.

26

P933808

SCREW

BOLT - hex, 10 mm x 90 mm

2шт.

27

REF

INSTRUCTION

VALVE - leak return, see figure 8-48

1шт.

28

P4237509

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

29

REF

INSTRUCTION

ADAPTER - bulkhead type, hose to cooler return tee, see figure 8-26

1шт.
