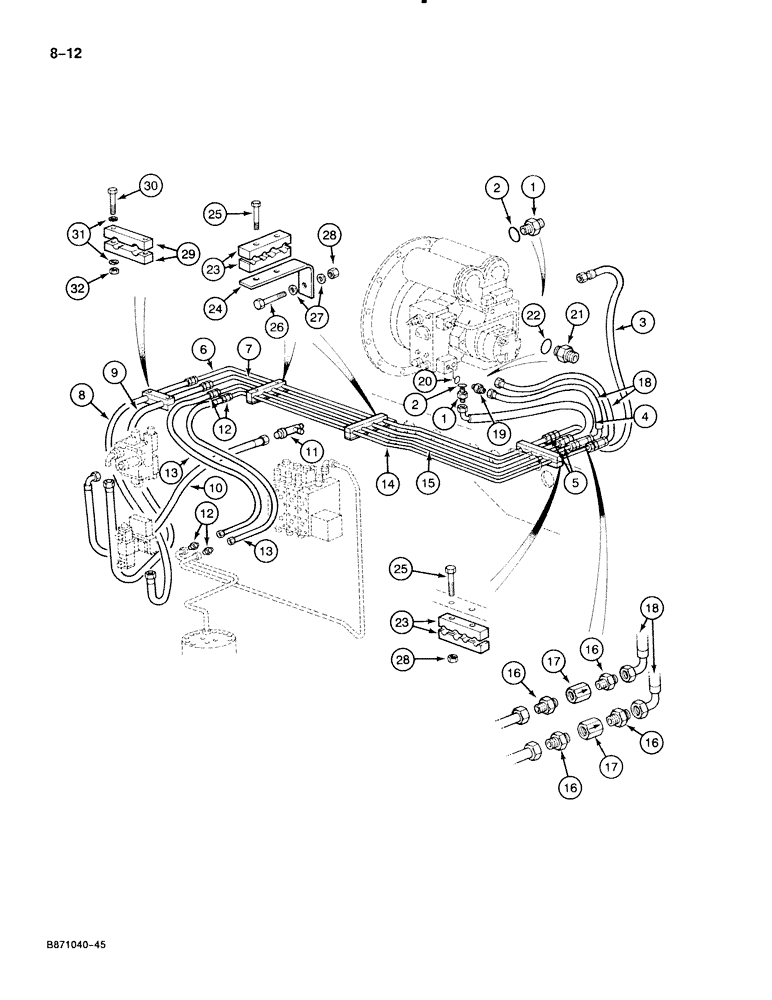

Запчасти Case 888 (8-012) - HYDRAULIC PUMP LINES, PUMP TO SWING VALVE, SOLENOID VALVE AND SWIVEL, P.I.N. FROM 74163 TO XXXXX (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
P3237533
UNION
ADAPTER - straight, Includes: Ref. 2
2шт.
2
P1145268
SEAL
- adapter
1шт.
3
P6531958
HOSE
- 31-1/2" long, pressure, pump to solenoid valve
1шт.
4
P5431967
HOSE
- 24-13/16" long, pressure, pump to swing control valve
1шт.
5
P3237537
UNION
ADAPTER - straight
4шт.
6
P6249180
PIPE
TUBE - pressure, to solenoid valve
1шт.
7
P6249179
PIPE
TUBE - pressure, to swing control valve
1шт.
8
P5931970
HOSE
- 24-13/16" long, pressure, to solenoid valve
1шт.
9
P5431932
HOSE
- 49-3/16" long, pressure, to swing control valve
1шт.
10
P5431962
HOSE
- 55-1/8" long, return, swing control, Serial Range: valve-tee
1шт.
11
REF
INSTRUCTION
ADAPTER - bulkhead type, hose to cooler return tee, see figure 8-24
1шт.
12
P3237534
UNION
ADAPTER - straight
4шт.
13
P5931967
HOSE
- 15-3/4" long, leak return
2шт.
14
P6249181
PIPE
TUBE - leak return, outer
1шт.
15
P6249182
PIPE
TUBE - leak return, inner
1шт.
16
P3237530
UNION
ADAPTER - straight
4шт.
P7046042
SEAL
- adapter
1шт.
17
REF
INSTRUCTION
FILTER ASSEMBLY - leak return, see figure 8-54
2шт.
18
P6531928
HOSE
- 19-11/16", leak, Serial Range: return-pump
2шт.
19
P4037544
UNION
ADAPTER - straight, Includes: Ref. 20
1шт.
20
P7046042
SEAL
- adapter
1шт.
21
P4037568
VALVE POPPET
CHECK VALVE ASSEMBLY - return line, Includes: Ref. 22
1шт.
22
P7046042
SEAL
- adapter
1шт.
23
P4620368
SHIN
CLAMP - tube
6шт.
24
P4825654
SUPPORT
BRACKET - clamp support
2шт.
25
P933883
SCREW
BOLT - hex head, 10 mm x 55 mm
6шт.
26
P933835
SCREW
BOLT - hex head, 10 mm x 70 mm
2шт.
27
P3528795
WASHER
SPACER - bolt, 7 mm thick
4шт.
28
P34598
SAFETY NUT
NUT - hex, self-locking
6шт.
29
P4820306
SHIN
CLAMP - tube
2шт.
30
P33824
SCREW
BOLT - hex, 10 mm x 100 mm
2шт.
31
P3528795
WASHER
SPACER - bolt, 7 mm thick
4шт.
32
P34598
SAFETY NUT
NUT - hex, self-locking, 10 mm
2шт.
Выбрано товаров: 33
