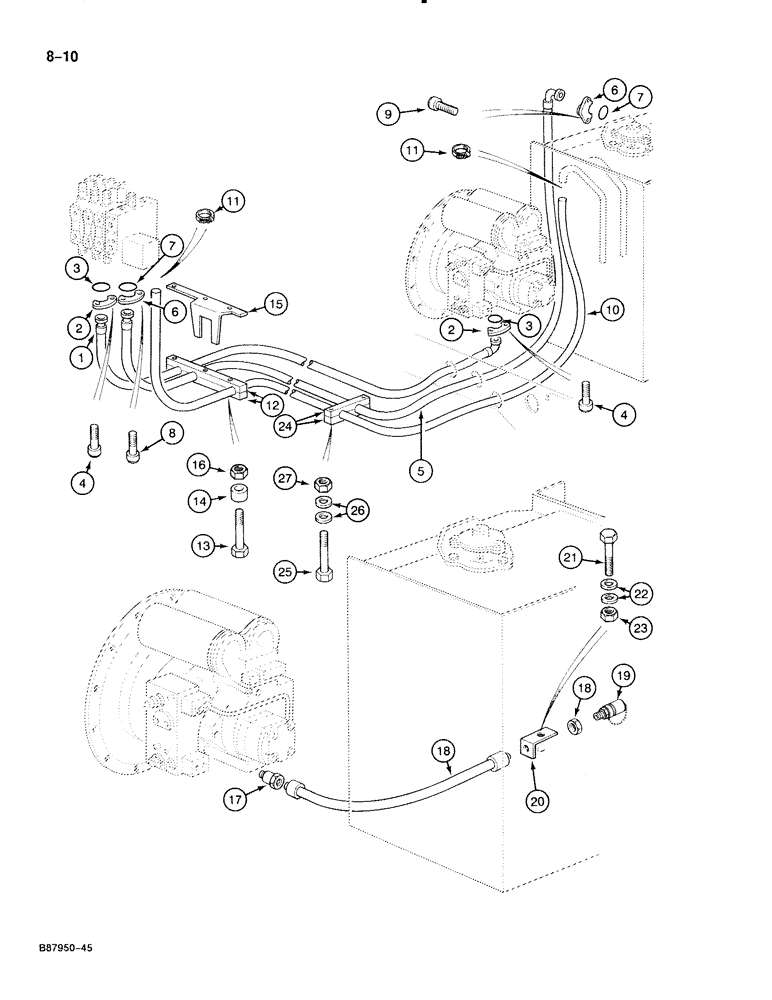

Запчасти Case 888 (8-010) - HYDRAULIC PUMP LINES, PUMP TO ATTACHMENT CONTROL VALVE (08) - HYDRAULICS

1

P5431976

HOSE

- 55-1/8" long, pressure, pump to attachment control valve

1шт.

2

P4024267

SHIN

SPLIT FLANGE - hose

4шт.

3

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube flange

2шт.

4

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

5

P5431974

HOSE

- 110-1/4" long, return, attachment control, Serial Range: valve-reservoir

1шт.

6

P4024272

BRACKET

SPLIT flange - hose

4шт.

7

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube flange

2шт.

8

P732911

SCREW

BOLT - hex socket, 10 mm x 30 mm, grade 10.9

8шт.

9

P532988

SCREW

BOLT - hex socket, 10 mm x 25 mm, grade 10.9

4шт.

10

REF

INSTRUCTION

HOSE - leak return, 88-1/4" long, cut from P1103635

1шт.

11

P36998

COLLAR CLAMP

CLAMP - hose

2шт.

12

P4620369

SHIN

CLAMP -, Serial Range: hoses-frame

2шт.

13

P33824

SCREW

BOLT - hex, 10 mm x 140 mm

2шт.

14

P4328730

WASHER

SPACER - bolt, 20 mm thick

2шт.

15

P5125622

SUPPORT

- clamp

1шт.

16

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

17

P4037580

UNION

ADAPTER - straight, long

1шт.

P7046042

SEAL

- adapter

1шт.

18

P6631952

HOSE

- 23-15/16" long, Serial Range: pump-disconnect

1шт.

19

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- adapter

1шт.

20

P5125643

PLATE

BRACKET - mounting, disconnect and hose

1шт.

21

P33866

SCREW

BOLT - hex, 20 mm x 75 mm

1шт.

22

P4328747

WASHER

SPACER - bolt, 14 mm thick

2шт.

23

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

1шт.

24

P5120327

SHIN

CLAMP - hose (Replaces P4420374)

2шт.

25

P33824

SCREW

BOLT - hex, 10 mm x 100 mm

2шт.

26

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.

27

P34598

SAFETY NUT

NUT - hex, self locking 10 mm

2шт.
