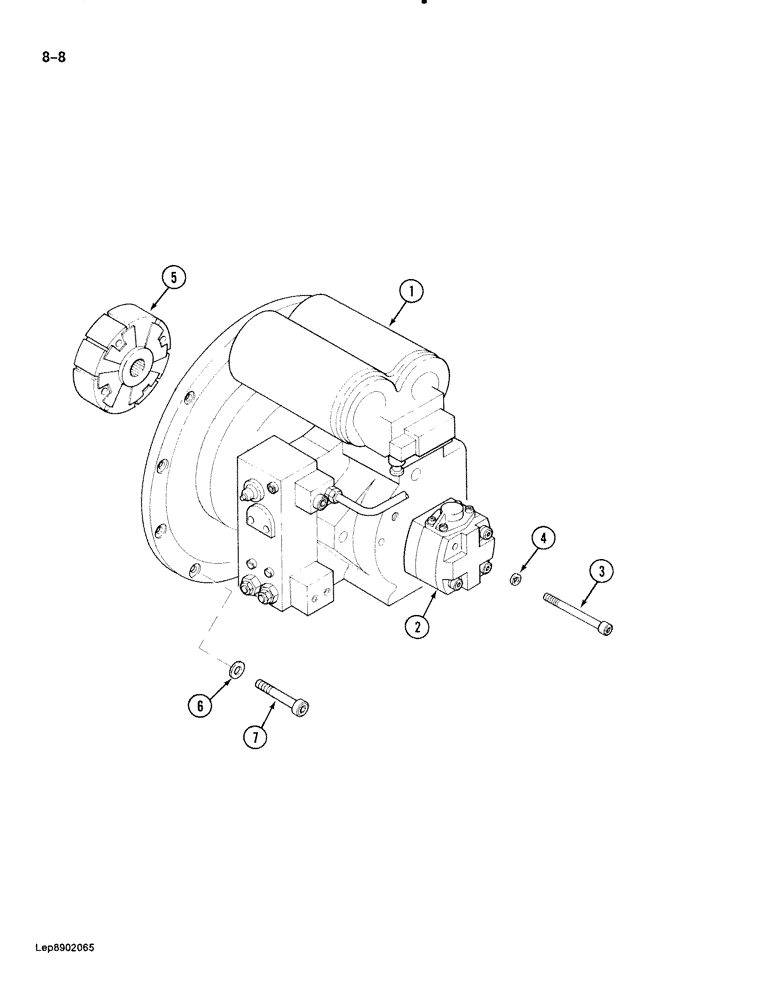

Запчасти Case 888 (8-008) - HIGH PRESSURE HYDRAULIC PUMP COUPLING (08) - HYDRAULICS

1

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - high pressure, see figure 8-32

1шт.

2

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - low pressure, see figure 8-46

1шт.

3

P32975

SCREW

BOLT - hex socket, 10 mm x 95 mm, pump mounting to high pressure pump body

2шт.

4

P1545410

WASHER

SPACER - bolt, 2 mm thick

2шт.

5

P6546257

COUPLING

- motor to main hydraulic pump

1шт.

P32962

SCREW

BOLT - coupling hex, 16 mm x 50 mm (Not shown)

4шт.

6

P4328796

WASHER

SPACER - bolt, 7 mm thick

7шт.

7

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

7шт.

P4543553

PUMP, HYDRAULIC

Linde rework version

1шт.

P5144449

SET OF PARTS

KIT noise reduction, valve

1шт.
