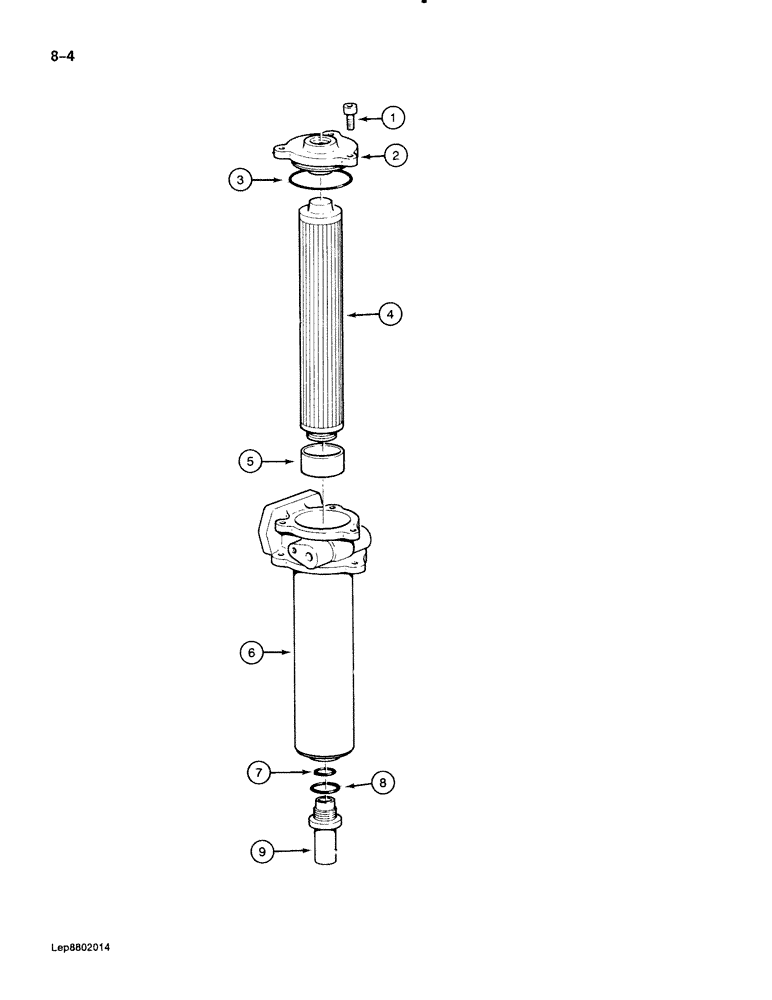

Запчасти Case 888 (8-004) - HYDRAULIC RETURN OIL FILTER (08) - HYDRAULICS

P1950580

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic return oil (Order P2950516 and P2537429) (See figure 8-6), Includes: Ref. 1 - 9

1шт.

1

P532976

BOLT

BOLT - hex, 8 mm x 20 mm, grade 10.9

3шт.

P5140336

COVER

HEAD ASSEMBLY - return oil filter

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - return oil filter

1шт.

3

P2930420

O-RING,3.1mm Thk x 99.4mm ID, 70 Duro

- head

1шт.

4

P1950578

CARTRIDGE

ELEMENT - return oil filter

1шт.

Ref #4 - Replaced by P2950511 Cartridge and P5140375 Head Assy.

1шт.

5

P1950591

FILTER BOWL

BOWL - return oil filter

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - return oil filter

1шт.

7

P2930419

O-RING

- element, lower

1шт.

8

P2930418

O-RING

- adapter

1шт.

9

P1950590

TUBE

ADAPTER - filter housing

1шт.
