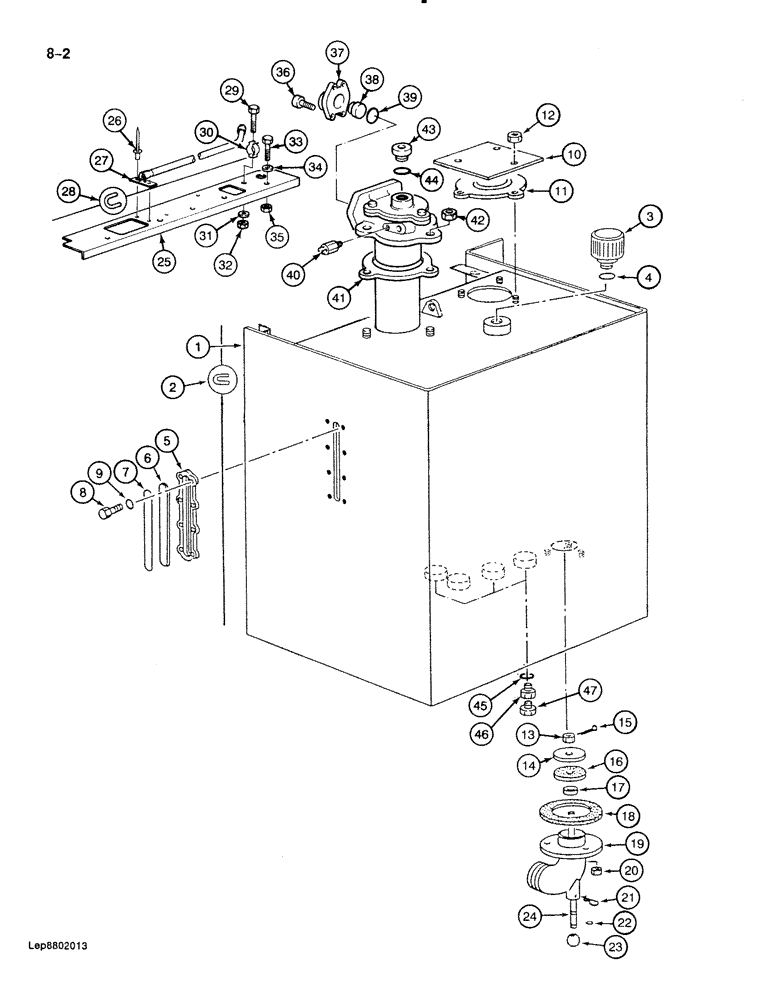

Запчасти Case 888 (8-002) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

P1540242

OIL RESERVOIR

RESERVOIR - hydraulic oil

1шт.

2

REF

INSTRUCTION

TRIM - edge, 28-3/4" long, cut from P1303155 (if used)

1шт.

3

P1950543

BREATHER

- hydraulic reservoir

1шт.

4

P245217

WASHER, SEALING

SEAL -, Serial Range: breather-reservoir

1шт.

5

P423428

BODY

RETAINER - sight gauge

1шт.

6

P22485

SIGHTGLASS

LENS - sight gauge

1шт.

7

P130487

O-RING

- lens

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

8шт.

9

P28425

COMPOSITE SEAL

WASHER - special, sealing

8шт.

10

P2023241

COVER

- hydraulic reservoir

1шт.

11

P8846035

SEAL

- cover

1шт.

12

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

3шт.

P837864

VANEUM GAUGE

SHUTOFF VALVE ASSEMBLY - hydraulic (Replaces P837841), Includes: Ref. 13 - 22

1шт.

13

P34303

NUT

- hex, slotted

1шт.

14

P2828550

WASHER

PLATE - shutoff

1шт.

15

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

1шт.

16

P7546099

SEAL

GASKET - shutoff plate

1шт.

17

P2828548

WASHER

- special, shutoff rod

1шт.

18

P152059

BALL KNOB

KNOB - control rod

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - shutoff valve

1шт.

20

P2127954

STEM

ROD - shutoff control

1шт.

21

P36016

SPLIT PIN/SAFETY PIN

PIN - retainer

1шт.

22

P1930415

O-RING

- control rod

1шт.

23

P7546084

SEAL

GASKET -, Serial Range: valve-reservoir

1шт.

24

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

3шт.

25

P5225646

PLATE

PANEL - front, hydraulic reservoir (Replaces P4825662)

1шт.

26

P35418

RIVET

POP RIVET - 8 mm x 17 mm, Serial Range: rod-panel

2шт.

27

P736693

STAND

ROD - support, engine access cover

1шт.

28

REF

INSTRUCTION

TRIM - edge, 23-5/8" long, cut from P1303155 (if used)

1шт.

29

P32529

SCREW,Hex Soc Hd, M4 x 16

- slotted head, 4 mm x 16 mm

1шт.

30

P1736995

FASTENER

CLIP - support rod

1шт.

31

P4328717

WASHER

SPACER - screw, 3 mm thick

1шт.

32

P34107

NUT - hex, 4 mm

1шт.

33

P33873

SCREW

BOLT - hex, 12 mm x 25 mm

4шт.

34

P34613

WASHER

- flat, 12 mm

4шт.

35

P34596

LOCK NUT

NUT - hex, self-locking, 12 mm

4шт.

36

P1332992

SCREW

BOLT - hex, 12 mm x 25 mm

4шт.

37

P4024263

SHIN

SPLIT FLANGE - tube plug

1шт.

38

P5327844

BLANK-OFF PLUG

PLUG - tube

1шт.

39

P1230493

O-RING

- tuble plug

1шт.

40

P1241851

ELECTRO/HYD CONTACT

SENDER - filter restriction indicator

1шт.

41

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic return, oil, see figure 8-6

1шт.

42

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

3шт.

43

P1337409

PLUG

- filler, Includes: Ref. 44

1шт.

44

P130469

O-RING,40.95MM ID x 2.62MM Width

- plug

1шт.

45

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter (If used)

1шт.

46

P3237533

UNION

ADAPTER - straight (if used)

1шт.

47

P2537429

PLUG

- reservoir drain

3шт.

P5746063

SEAL

- plug, not shown

1шт.
