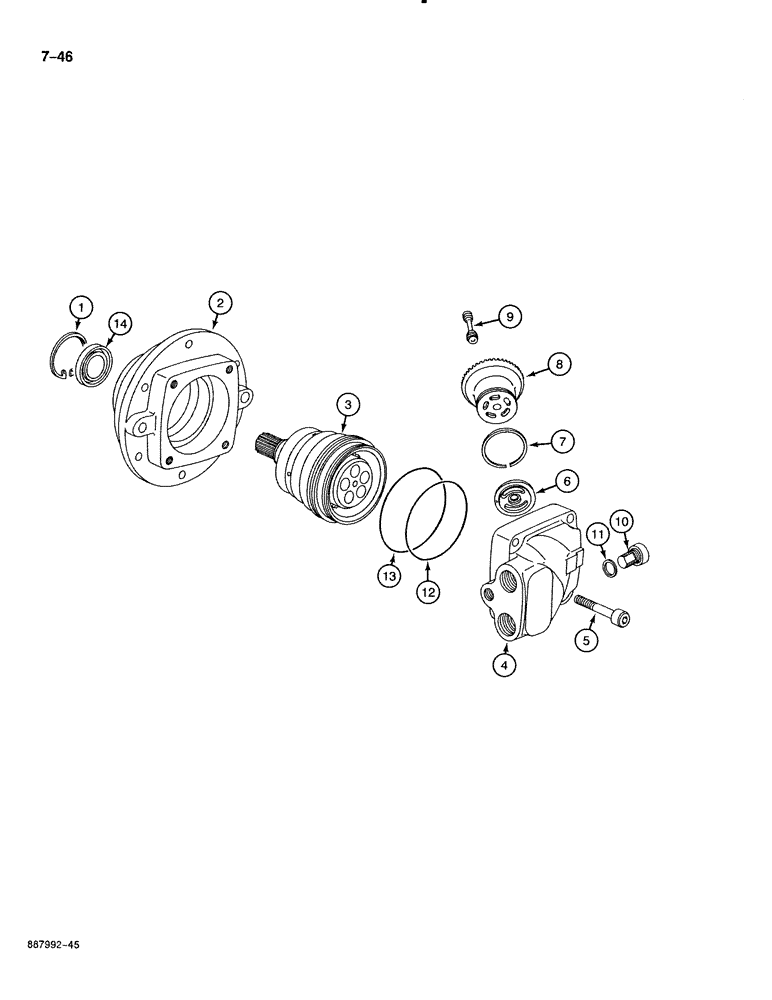

Запчасти Case 888 (7-046) - TRACK DRIVE MOTOR (07) - BRAKES

P2343766

MOTOR, HYDRAULIC

HYDRAULIC MOTOR ASSEMBLY - track drive, Includes: Ref. 1 - 14

1шт.

1

P936325

RING, SNAP

SNAP RING - washer retaining

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - motor, front

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - motor

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - motor, rear

1шт.

5

P532942

SCREW

BOLT - hex socket, 12 mm x 60 mm (Replaces P32946)

4шт.

6

P6546297

ELEC SUPPORT PLATE

PLATE - valve

1шт.

7

P936311

RING, SNAP

RING - locking, plate

1шт.

8

P1030006

LOCK, CYLINDER

BLOCK - cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

5шт.

10

P3037428

PLUG

- rear housing

1шт.

11

P1245237

SEAL

- plug

1шт.

P3749696

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, small

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, large

1шт.

14

P7146036

OIL SEAL

SEAL - shaft, front housing

1шт.
