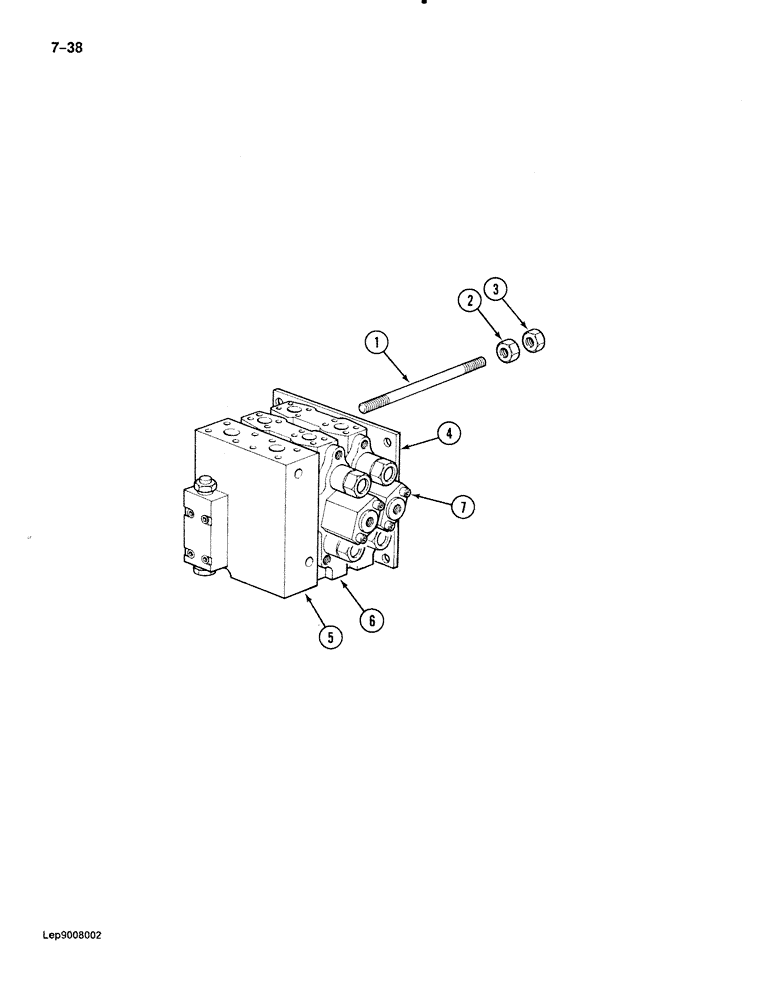

Запчасти Case 888 (7-038) - DRIVE CONTROL VALVE, P.I.N. FROM 15263 AND AFTER (07) - BRAKES

1

P2527789

THREADED ROD

STUD - control valve sections

3шт.

2

P34169

NUT

- hex, 16 mm

3шт.

3

P34564

NUT

- hex, self-locking, 16 mm

3шт.

4

P3343695

LARGE PLATE

PLATE - mounting, drive control valve

1шт.

5

REF

INSTRUCTION

SECTION ASSEMBLY - inlet and outlet, brake release valve see figure 7-28

1шт.

6

REF

INSTRUCTION

SECTION ASSEMBLY - track drive, center, left-hand drive motor, see figure 7-40

1шт.

7

REF

INSTRUCTION

SECTION ASSEMBLY - track drive, inside, right-hand drive motor, see figure 7-40

1шт.
