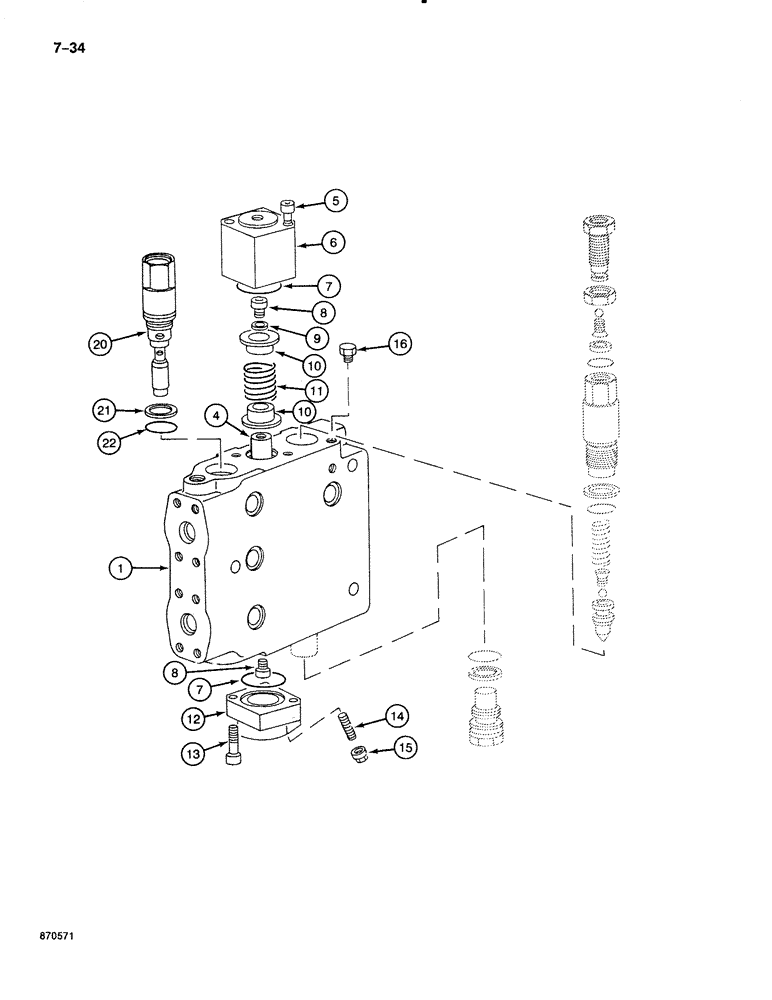

Запчасти Case 888 (7-034) - DRIVE CONTROL VALVE, TRACK DRIVE SECTIONS, P.I.N. FROM 74213 TO 74418, 15201 TO 15262 (07) - BRAKES

P3343622

DISTRIBUTOR

TRACK DRIVE SECTION ASSEMBLY - inside, right-hand drive motor, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - track drive section, inside

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve, track drive

1шт.

5

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.

6

P5140379

CAP

- spool end

1шт.

7

P2930449

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- spool end cap

2шт.

8

P1432932

SCREW

BOLT - hex socket, 8 mm x 10 mm, grade 10.9

2шт.

9

P1945382

WASHER

- flat, special

1шт.

10

P7646228

CUPEL

SEAT - spring

2шт.

11

P38295

SPRING

- spool

1шт.

12

P5140370

CAP

- spool end

1шт.

13

P732909

SCREW

BOLT - hex socket, 8 mm x 25 mm, grade 10.9

2шт.

14

P3333042

SCREW

SET SCREW - end cap

1шт.

15

P2434541

NUT

- hex, self-locking

1шт.

16

P3037405

PLUG

- check valve

1шт.

P3143677

SHOCK ABSORBER

CIRCUIT RELIEF VALVE ASSEMBLY - drive section

2шт.

20

NSS

NOT SOLD SEPARAT

CIRCUIT RELIEF VALVE - drive section, Includes: Ref. 21 and 22

1шт.

21

P1245232

RING

BACKUP RING - seal

1шт.

22

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- relief valve body

1шт.
