Запчасти Case 888 (7-024) - BRAKE RELEASE VALVE, P.I.N. FROM 74163 TO 74212 (07) - BRAKES

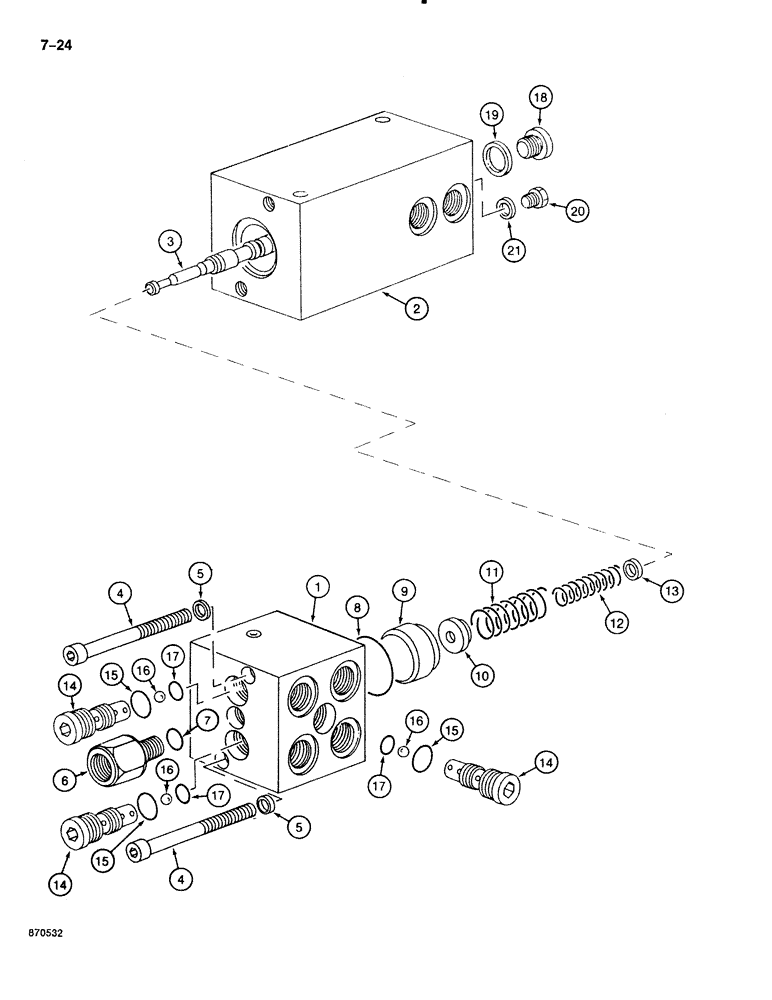

Схема запчастей Case 888 - (7-024) - BRAKE RELEASE VALVE, P.I.N. FROM 74163 TO 74212 (07) - BRAKES

Артикул

Название

Примечание

Количество

P2643381

BLOCK ASSY.

VALVE ASSEMBLY - brake release, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - valve

1шт.

2

NSS

NOT SOLD SEPARAT

BLOCK - spool

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - block

1шт.

4

P3533004

SCREW

BOLT - hex socket, valve block to spool block

2шт.

5

P1946301

WASHER

- flat, valve block bolt

2шт.

6

P4037598

FITTING

ADAPTER - straight

1шт.

7

P2930406

O-RING

- adapter

1шт.

8

P2930407

O-RING

- valve block to spool block

1шт.

9

P2728894

PISTON

CAP - valve spool

1шт.

10

P2728895

GUIDE

RETAINER - spool spring

1шт.

11

P1038232

SPRING

- spool, large

1шт.

12

P1038233

SPRING

- spool, small

1шт.

13

P1846399

WASHER

- spool

1шт.

14

P3237458

PLUG

- check valve

3шт.

15

P2930404

O-RING

- plug, large

3шт.

16

P31035

BALL

- check valve

3шт.

17

P2930405

O-RING

- plug, small

3шт.

18

P3237457

PLUG

- spool block, large

1шт.

19

P8846038

SEAL

- plug, large

1шт.

20

P3237459

PLUG

- spool block, small

1шт.

21

P8846039

SEAL

- plug, small

1шт.

Выбрано товаров: 22
