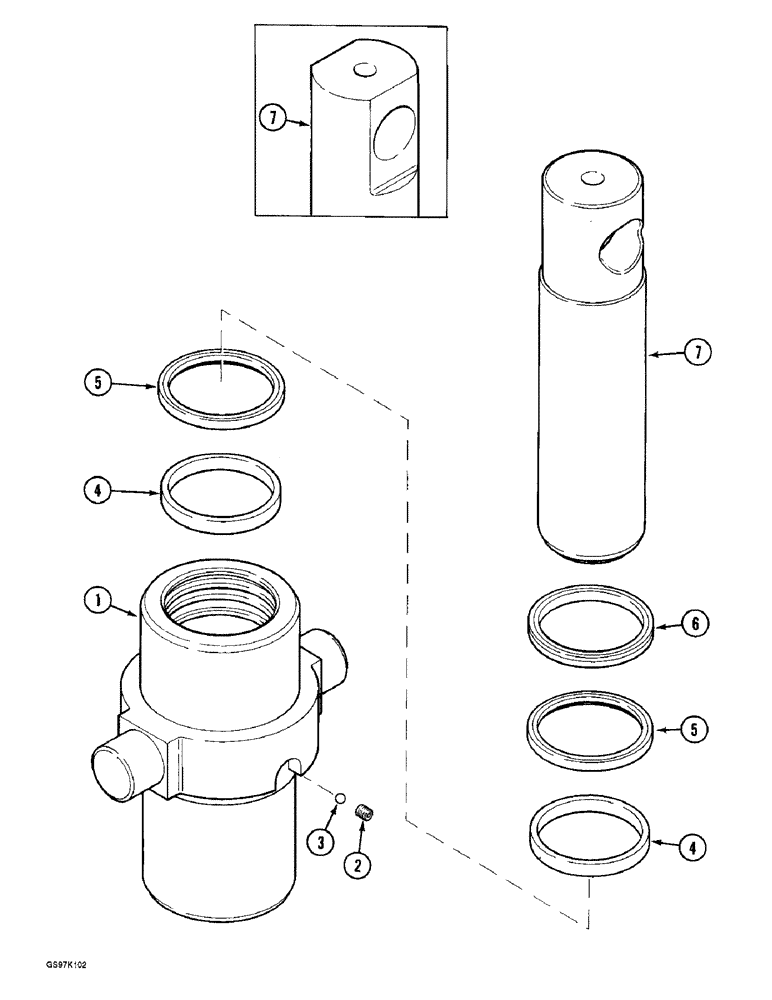

Запчасти Case 888 (7-24) - LEVELER CYLINDER, P.I.N. 106801 AND AFTER (07) - BRAKES

P8246776

CYLINDER ASSY.

CYLINDER ASSEMBLY - leveler, no longer available, Includes: Ref. 1 - 7

1шт.

1

P8646708

JACK BODY

TUBE - cylinder

1шт.

2

P933009

SCREW

- bleed

1шт.

3

P31002

BALL

- bleed

1шт.

4

P9346099

BAND

RING - wear, piston

2шт.

5

P9346098

GASKET

SEAL -, Serial Range: tube-piston

2шт.

6

P9346097

WIPER SEAL

WIPER - piston, outer

1шт.

7

P3249450

PISTON ROD

ROD - cylinder, Serial Range: 106801-106802

1шт.

7

P3249448

PISTON ROD

ROD - cylinder, Start Serial: 106803

1шт.
