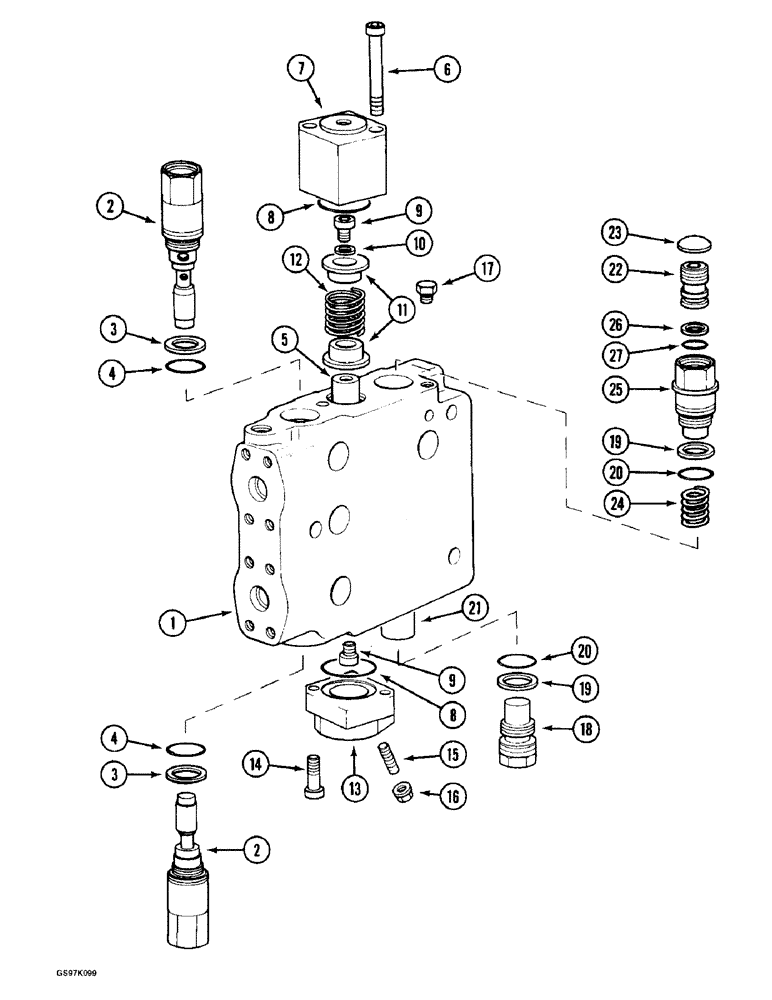

Запчасти Case 888 (7-18) - P3343687 DRIVE CONTROL VALVE, TRACK DRIVE SECTION (07) - BRAKES

P3343687

DISTRIBUTOR

SECTION ASSEMBLY - track drive, center, right-hand drive motor, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - track drive section, center, order secton assembly

1шт.

P3143677

SHOCK ABSORBER

VALVE ASSEMBLY - circuit relief, drive section, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

VALVE - circuit relief, drive section, order valve assembly P3143677

1шт.

3

P1245232

RING

- backup

1шт.

4

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- relief valve body

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - valve, track drive, order section assembly P3343687

1шт.

6

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.

7

P5140379

CAP

- spool end

1шт.

8

P2930449

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- spool end cap

2шт.

9

P1432932

SCREW

BOLT - hex socket, 8 mm x 10 mm, grade 10.9

2шт.

10

P1945382

WASHER

- flat, special

1шт.

11

P7646228

CUPEL

SEAT - spring

2шт.

12

P38295

SPRING

- spool

1шт.

13

P5140370

CAP

- spool end

1шт.

14

P732909

SCREW

BOLT - hex socket, 8 mm x 25 mm, grade 10.9

2шт.

15

P3333042

SCREW

- set, end cap

1шт.

16

P2434541

NUT

- hex, self-locking

1шт.

17

P3037405

PLUG

- check valve

1шт.

18

P3037406

PLUG

- valve body

1шт.

19

P1245232

RING

- backup

1шт.

20

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- plug

1шт.

21

NSS

NOT SOLD SEPARAT

PLUNGER - valve, order section assembly P3343687

1шт.

22

P3143669

SPARE PART SET

VALVE - drive control

1шт.

23

P2340461

BLANK-OFF PLUG

COVER - flow control valve

1шт.

24

P1538155

SPRING

RING - flow control valve

1шт.

25

P2340460

CAP

BODY - flow control valve

1шт.

26

P1245231

BACK-UP RING

RING - backup

1шт.

27

P2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- adjusting screw

1шт.
