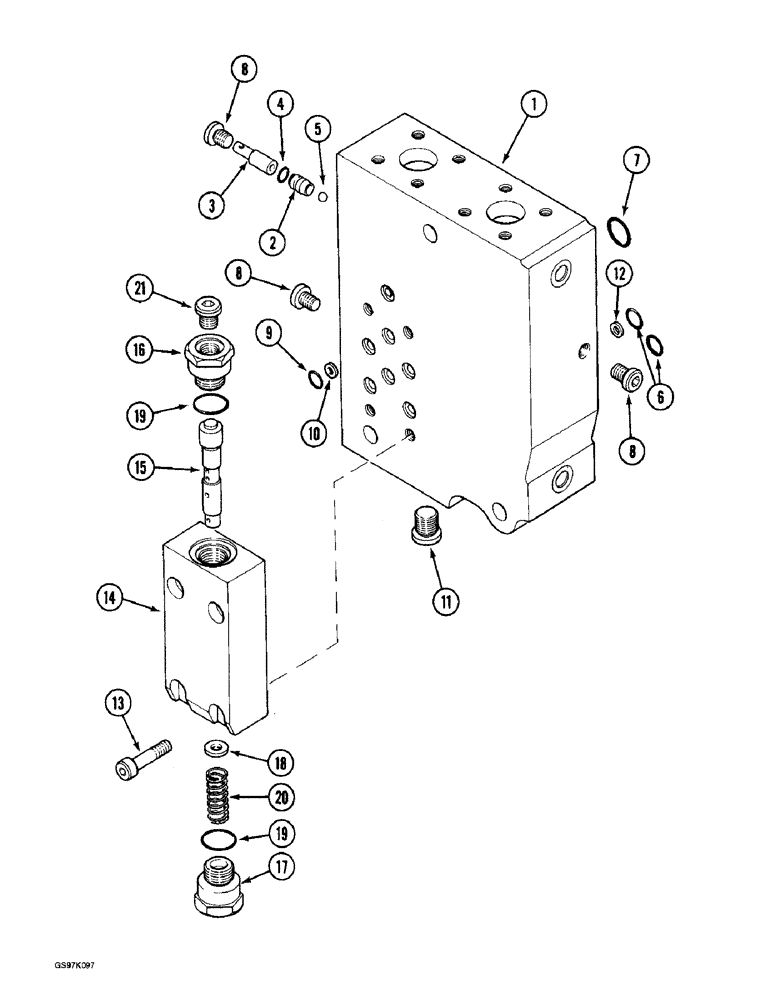

Запчасти Case 888 (7-14) - DRIVE CONTROL VALVE, BRAKE RELEASE VALVE, INLET AND OUTLET SECTION (07) - BRAKES

P3343630

LARGE PLATE

SECTION ASSEMBLY - brake release valve, inlet and outlet, control valve, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

SECTION - inlet and outlet, order section assembly

1шт.

2

P729780

SEAT

- flow control valve

1шт.

3

P1029446

STOP

SPOOL - flow control valve

1шт.

4

P2930401

O-RING

- seat

1шт.

5

P31002

BALL

- seat

1шт.

6

P2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inlet and outlet section, small

3шт.

7

P2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- inlet and outlet section, large

4шт.

8

P3037405

PLUG

- section

3шт.

9

P30307

O-RING

- section to brake release valve

7шт.

10

P3743256

JET

RING - backup

7шт.

11

P2537447

PLUG

ASSEMBLY - section

1шт.

P7046042

SEAL

- plug

1шт.

12

P3628828

BACK-UP RING

RING - backup, section

1шт.

13

P132909

SCREW

BOLT - hex socket, 8 mm x 35 mm

4шт.

P4343325

VALVE

ASSEMBLY - brake release, control valve, Includes: Ref. 14 - 21

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - brake release valve, order valve assembly P4343325

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - brake release valve, order valve assembly P4343325

1шт.

16

P3337415

PLUG

BODY - brake release valve, upper

1шт.

17

P3337416

PLUG

BODY - brake release valve, lower

1шт.

18

P2745459

WASHER

- valve

1шт.

19

P2930450

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- lower body

1шт.

20

P138160

COMPRESSION SPRING

SPRING - brake release valve

1шт.

21

P2537447

PLUG

ASSEMBLY - body, upper

1шт.

P7046042

SEAL

- plug

1шт.
