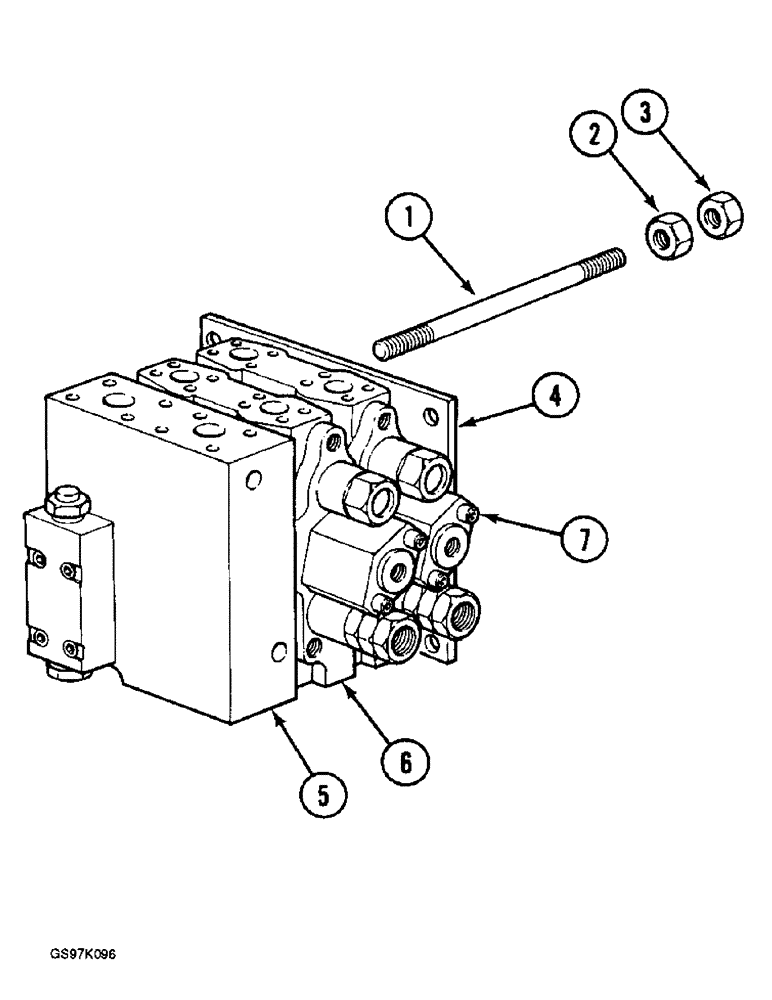

Запчасти Case 888 (7-12) - DRIVE CONTROL VALVE (07) - BRAKES

1

P2527789

THREADED ROD

STUD - control valve sections

3шт.

2

P34169

NUT

- hex, 16 mm

3шт.

3

P34564

NUT

- hex, self-locking, 16 mm

3шт.

4

P3343695

LARGE PLATE

PLATE - mounting, drive control valve

1шт.

5

P3343630

LARGE PLATE

SECTION ASSEMBLY - inlet and outlet, brake release valve, parts list Fig. 7-14

1шт.

6

P3343686

DISTRIBUTOR

SECTION ASSEMBLY - track drive, inside, left-hand drive motor, parts list Fig. 7-16

1шт.

7

P3343687

DISTRIBUTOR

SECTION ASSEMBLY - track drive, center, right-hand drive motor, parts list Fig. 7-18

1шт.
