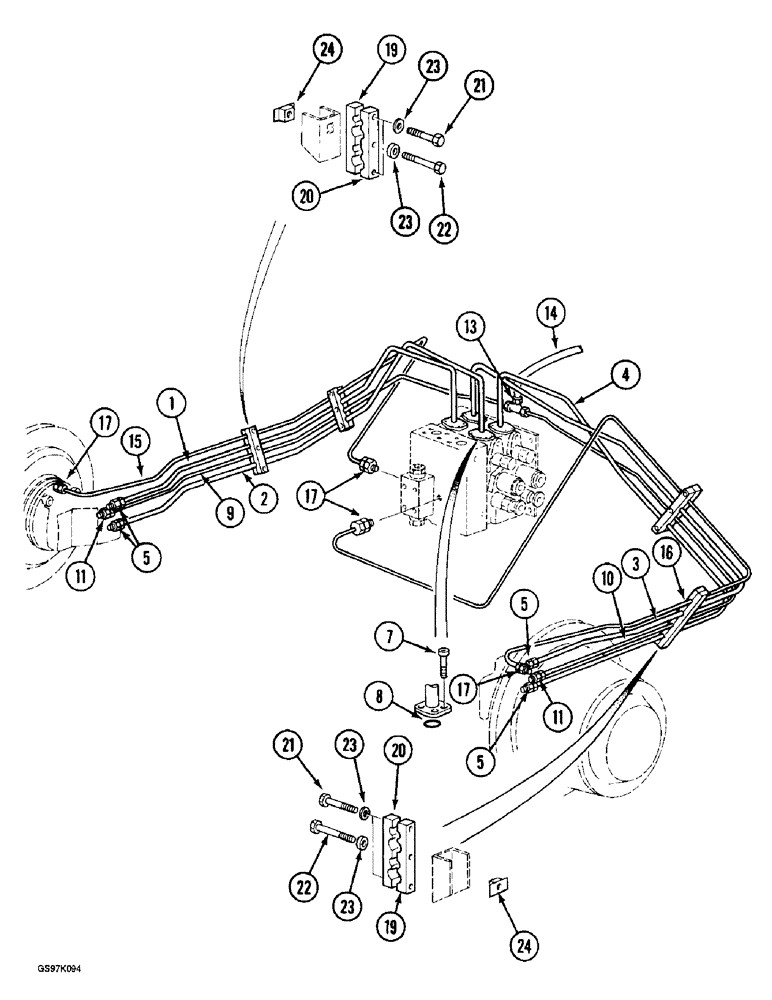

Запчасти Case 888 (7-08) - TRACK DRIVE AND BRAKE HYDRAULIC LINES (07) - BRAKES

1

P7349128

PIPE,752, 698 mm L

TUBE - drive control, to left-hand drive motor, upper port

1шт.

2

P7349129

PIPE

TUBE - drive control, to left-hand drive motor, lower port

1шт.

3

P7349126

HYD TUBE,848, 634 mm L

TUBE - drive control, to right-hand drive motor, upper port

1шт.

4

P7349127

HYD TUBE

TUBE - drive control, to right-hand drive motor, lower port

1шт.

5

P4237585

UNION

ADAPTER ASSEMBLY - straight

4шт.

P1145268

SEAL

- adapter

1шт.

7

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

8

P1130483

O-RING

- tube flange

4шт.

9

P6649181

PIPE

TUBE - leak return, from left-hand drive motor

1шт.

10

P6649180

PIPE

TUBE - leak return, from right-hand drive motor

1шт.

11

P3237532

UNION

ADAPTER ASSEMBLY - straight

2шт.

P2230418

SEAL

O-RING - adapter

1шт.

13

P937276

TEE

- return, leak return tubes

1шт.

14

REF

INSTRUCTION

HOSE - leak return to swivel, see Fig. 7-04

1шт.

15

P7049153

PIPE

TUBE - brake release, left-hand drive motor

1шт.

16

P7049152

PIPE

TUBE - brake release, right-hand drive motor

1шт.

17

P3237530

UNION

ADAPTER ASSEMBLY - straight

3шт.

P7046042

SEAL

O-RING - adapter

1шт.

19

P4820366

SHIN

CLAMP - drive motor tubes, outer

4шт.

20

P4820367

SHIN

CLAMP - drive motor tubes, inner

4шт.

21

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

8шт.

22

P3333034

SCREW

BOLT - hex, 10 mm x 75 mm

4шт.

23

P4328796

WASHER

SPACER - bolt, 7 mm thick

12шт.

24

P2434525

NUT

- cage type, 10 mm

4шт.
