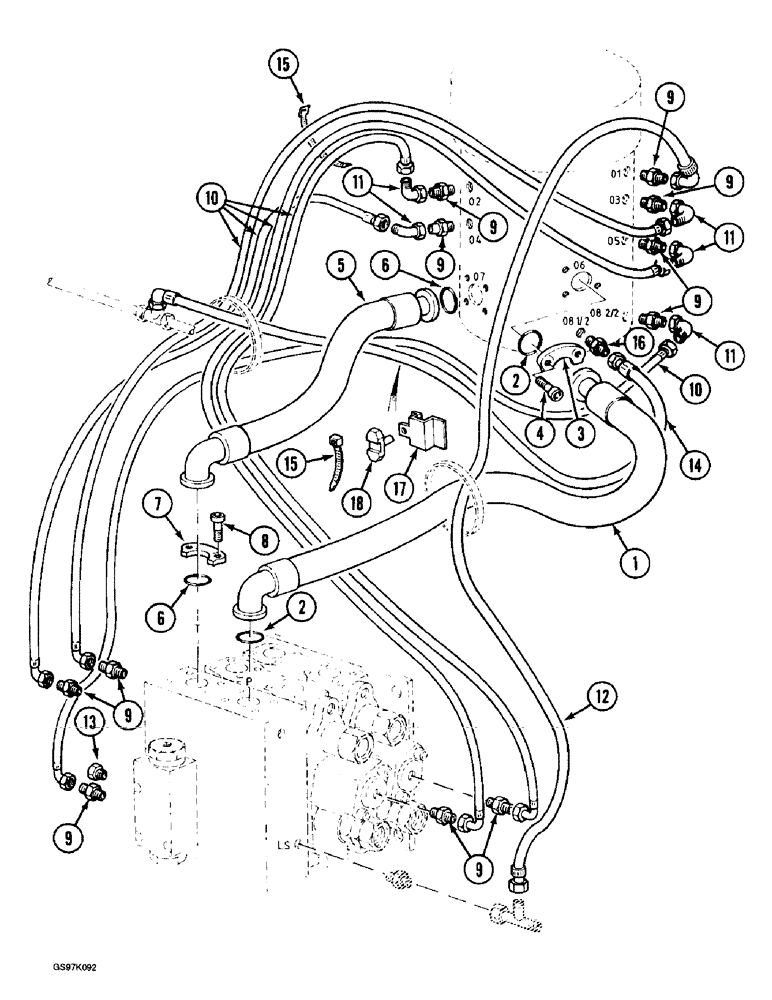

Запчасти Case 888 (7-04) - PRESSURE AND RETURN LINE, TO DRIVE CONTROL VALVE, P.I.N. 15401 AND AFTER (07) - BRAKES

1

P5431934

HOSE

- pressure, to center block of drive control valve, 800 mm (31-1/2 inch) long

1шт.

2

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- hose flange

2шт.

3

P4024267

SHIN

FLANGE - split, hose

4шт.

4

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

5

P5431941

HOSE

- return to swivel, 800 mm (31-1/2 inch) long

1шт.

6

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- hose flange

2шт.

7

P4024272

BRACKET

FLANGE - split, hose

4шт.

8

P32933

SCREW

BOLT - hex socket, 12 mm x 30 mm

8шт.

9

P3237530

UNION

ADAPTER ASSEMBLY - straight

11шт.

P7046042

SEAL

- adapter

1шт.

10

P5431942

HOSE

- pilot, swivel to brake release valve, 1249 mm (49-3/16 inch) long

5шт.

11

P1737018

ANGLE

ELBOW - 90 degree

6шт.

12

P5431940

HOSE

- pressure sensing, 1249 mm (49-3/16 inch) long

1шт.

13

P2537447

PLUG

ASSEMBLY - valve

3шт.

P7046042

SEAL

- plug

1шт.

14

P5431958

HOSE

- leak return, 902 mm (35-1/2 inch) long

1шт.

15

P51946

CLAMP

STRAP - tie, hose, 257 mm (10-1/8 inch) long

1шт.

16

P3237532

UNION

ADAPTER ASSEMBLY - straight

1шт.

P2230418

SEAL

O-RING - adapter

1шт.

17

P2036903

CLASP

CLIP - retainer, 8 - 12.5 mm (5/16 - 1/2 inch) range

2шт.

18

PP2036939

CLASP

RETAINER - tie strap

2шт.
