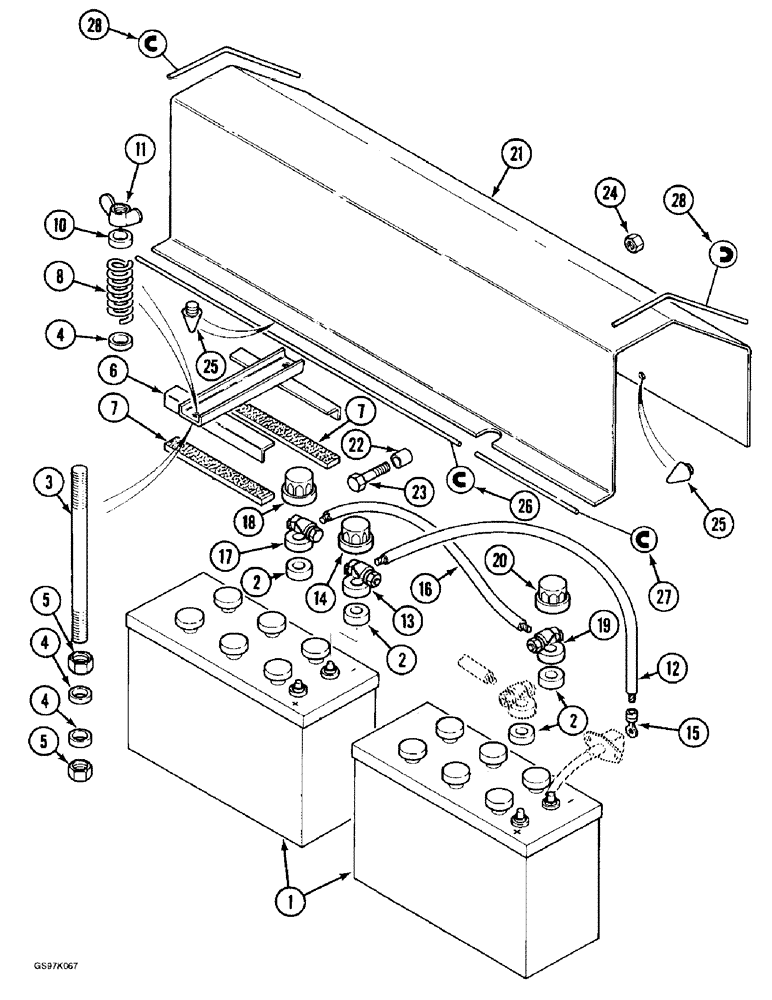

Запчасти Case 888 (4-38) - BATTERIES, BATTERY MOUNTING AND CABLES (04) - ELECTRICAL SYSTEMS

1

P1941801

BATTERY

- engine electrical, 12 volt

2шт.

2

P2340487

HOLE PLUG BUTTON

WASHER - treated, corrosion protector

2шт.

3

P2527769

TRUSS ROD

ROD - tie, battery retainer

4шт.

4

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

5

100016

NUT,M10 x 1.5, Cl 8

8шт.

6

P6828240

SHIN

RETAINER - battery

2шт.

7

REF

INSTRUCTION

PROTECTOR - battery edge, rubber, 203 mm (8 inch) long, cut from bulk roll P403144

2шт.

8

P138187

COMPRESSION SPRING

SPRING - battery retainer

4шт.

9

P4328730

WASHER

SPACER - bolt, 20 mm thick

4шт.

10

P35021

WASHER

SPACER - bolt

4шт.

11

P34410

THUMB SCREW

NUT - wing, tie rod

4шт.

P51672

CABLE

ASSEMBLY - battery negative post to ground, Includes: Ref. 12 - 15

1шт.

12

REF

INSTRUCTION

CABLE - battery to ground, 1472 mm (57-15/16 inch) long, cut from bulk stock P104520 below

1шт.

13

P40919

TERMINAL CONNECTOR

TERMINAL - battery cable, negative

1шт.

14

P2340451

DOOR COVER

CAP - terminal protection, black

1шт.

15

P40934

TERMINAL CONNECTOR

TERMINAL - battery cable, at engine ground

1шт.

P8547245

CABLE

- jumper, Serial Range: battery-battery

1шт.

16

REF

INSTRUCTION

CABLE - jumper, battery to batter, 1350 mm (53-3/16 inch) long, cut from bulk stock P104520 below

1шт.

17

P40920

CLAMP

TERMINAL - battery cable, positive

1шт.

18

P2340452

DOOR COVER

CAP - terminal protector, red

1шт.

19

P40919

TERMINAL CONNECTOR

TERMINAL - battery cable, negative

1шт.

20

P2340451

DOOR COVER

CAP - terminal protector, black

1шт.

21

P7428204

PROTECTOR

COVER - battery protection

1шт.

22

P41470

STOP

WASHER - rubber

2шт.

23

P1332925

SCREW

BOLT - hex, 8 mm x 22 mm

2шт.

24

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

2шт.

25

P41434

STOP

PLUG - cover, rubber

5шт.

26

REF

INSTRUCTION

SEAL - cover, 730 mm (28-3/4 inch) long, cut from bulk seal P303101 below, if used

1шт.

27

REF

INSTRUCTION

SEAL - cover, 241 mm (9-1/2 inch) long, cut from bulk seal P303101 below, if used

1шт.

28

REF

INSTRUCTION

SEAL - cover, 222 mm (8-3/4 inch) long, cut from bulk seal P303101 below, if used

1шт.

P403144

SEAL

- bulk, sold by the meter

1шт.

P104520

CABLE

- bulk, sold by the meter

1шт.

P303101

SEAL, RUBBER

SEAL - bulk, sold by the meter

1шт.
