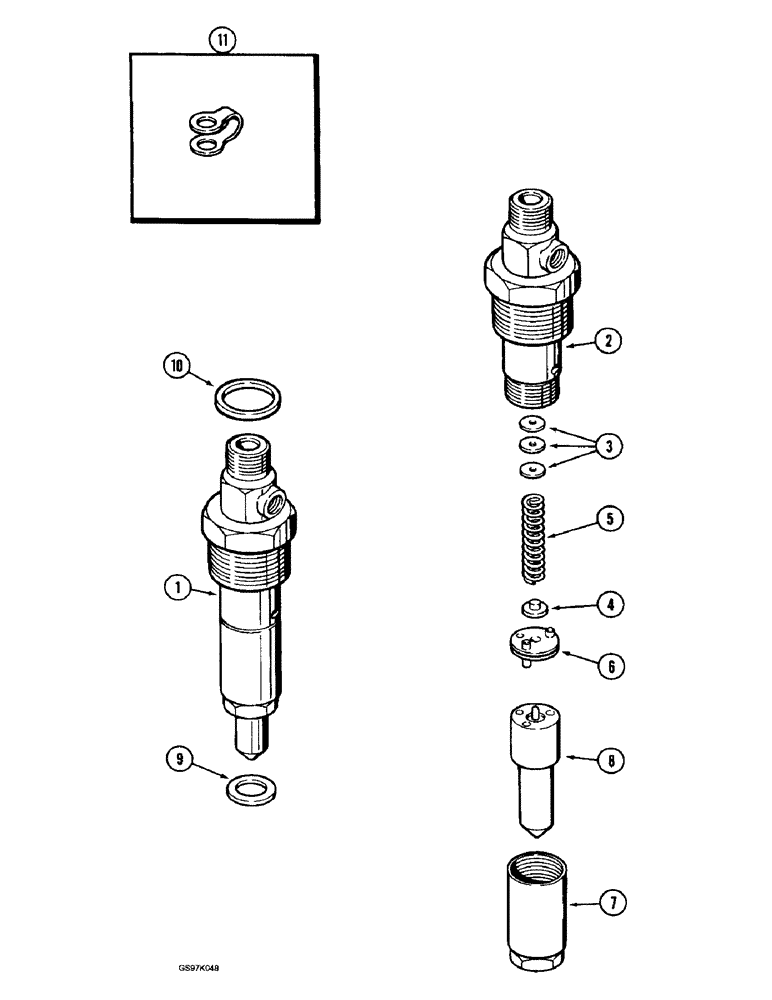

Запчасти Case 888 (3-14) - FUEL INJECTION NOZZLE, 6T-590 DIESEL ENGINE (03) - FUEL SYSTEM

1

J909476

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection, new, order kit A77554, Includes: Ref. 2 - 12

6шт.

Part of injection nozzle kit P/N A77554.

1шт.

1

JR909476

REMAN-FUEL INJECTOR

Nozzle Assembly- fuel injection, remanufactured Includes: Ref. 2 - 12

6шт.

1

JC909476

CORE-FUEL INJECTOR

Return Part Number - use this part number to return nozzles for credit when using a remanufactured assembly, Includes: Ref. 2 - 12

6шт.

1

JR919343

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

1

JC919343

CORE-FUEL INJECTOR

Return Part Number, Injection Pump

6шт.

2

NSS

NOT SOLD SEPARAT

BODY- injection nozzle, order kit A77554

1шт.

A48186

KIT

KIT - shim, nozzle opening pressure, will repair four nozzles, no longer available as a kit, order seal J903380, Ref. 11, sleeve J909886, Ref. 12 and shims, Ref. 3, as needed, Includes: Ref. 3 - 9

1шт.

3

1806233C1

SHIM,1.00mm Thk

SHIM, , Nozzle (5 in kit) 1.00mm Thk

1шт.

3

1806234C1

SHIM,1.04mm Thk

SHIM, , Nozzle (5 in kit) 1.04mm Thk

1шт.

3

1806235C1

SHIM,1.08mm Thk

SHIM, , Nozzle (5 in kit) 1.08mm Thk

1шт.

3

1806236C1

SHIM,1.10mm Thk

SHIM, , Nozzle (5 in kit) 1.10mm Thk

1шт.

3

1806237C1

SHIM,1.14mm Thk

SHIM, , Nozzle (5 in kit) 1.14mm Thk

1шт.

3

1806238C1

SHIM,1.18mm Thk

SHIM, , Nozzle (5 in kit) 1.18mm Thk

1шт.

3

1806239C1

SHIM,1.20mm Thk

SHIM, , Nozzle (5 in kit) 1.20mm Thk

1шт.

3

1806240C1

SHIM,1.24mm Thk

SHIM, , Nozzle (5 in kit) 1.24mm Thk

1шт.

3

1806241C1

SHIM,1.28mm Thk

SHIM, , Nozzle (5 in kit) 1.28mm Thk

1шт.

3

1806242C1

SHIM,1.30mm Thk

SHIM, , Nozzle (5 in kit) 1.30mm Thk

1шт.

3

1806243C1

SHIM,1.34mm Thk

SHIM, , Nozzle (5 in kit) 1.34mm Thk

1шт.

3

1806244C1

SHIM,1.38mm Thk

SHIM, , Nozzle (5 in kit) 1.38mm Thk

1шт.

3

1806245C1

SHIM,1.40mm Thk

SHIM, , Nozzle (5 in kit) 1.40mm Thk

1шт.

3

1806246C1

SHIM,1.44mm Thk

SHIM, , Nozzle (5 in kit) 1.44mm Thk

1шт.

3

1806247C1

SHIM,1.48mm Thk

SHIM, , Nozzle (5 in kit) 1.48mm Thk

1шт.

3

1806248C1

SHIM,1.50mm Thk

SHIM, , Nozzle (5 in kit) 1.50mm Thk

1шт.

3

1806249C1

SHIM,1.54mm Thk

SHIM, , Nozzle (5 in kit) 1.54mm Thk

1шт.

3

1806250C1

SHIM,1.58mm Thk

SHIM, , Nozzle (5 in kit) 1.58mm Thk

1шт.

3

1806251C1

SHIM,1.60mm Thk

SHIM, , Nozzle (5 in kit) 1.60mm Thk

1шт.

3

1806252C1

SHIM,1.64mm Thk

SHIM, , Nozzle (5 in kit) 1.64mm Thk

1шт.

3

1806253C1

SHIM,1.68mm Thk

SHIM, , Nozzle (5 in kit) 1.68mm Thk

1шт.

3

1806254C1

SHIM,1.70mm Thk

SHIM, , Nozzle (5 in kit) 1.70mm Thk

1шт.

3

1806255C1

SHIM,1.74mm Thk

SHIM, , Nozzle (5 in kit) 1.74mm Thk

1шт.

3

1806256C1

SHIM,1.78mm Thk

SHIM, , Nozzle (5 in kit) 1.78mm Thk

1шт.

3

1806257C1

SHIM,1.80mm Thk

SHIM, , Nozzle (5 in kit) 1.80mm Thk

1шт.

3

1806258C1

SHIM,1.84mm Thk

SHIM, , Nozzle (5 in kit) 1.84mm Thk

1шт.

3

1806259C1

SHIM,1.88mm Thk

SHIM, , Nozzle (5 in kit) 1.88mm Thk

1шт.

3

1806260C1

SHIM,1.90mm Thk

SHIM, , Nozzle (5 in kit) 1.90mm Thk

1шт.

3

1806261C1

SHIM,1.94mm Thk

SHIM, , Nozzle (5 in kit) 1.94mm Thk

1шт.

3

1806262C1

SHIM,1.98mm Thk

SHIM, , Nozzle (5 in kit) 1.98mm Thk

1шт.

4

J905153

SPINDLE

SEAT - nozzle pressure spring

1шт.

5

J905152

SPRING

SPRING - nozzle pressure

1шт.

6

J905154

PLATE

STOP - nozzle valve

1шт.

7

A48201

NUT

NUT - cap, nozzle tip

1шт.

8

NSS

NOT SOLD SEPARAT

TIP - injector nozzle, order kit A77554

1шт.

9

J900808

SEAL

GASKET - nozzle

6шт.

Part of injection nozzle kit P/N A77554.

1шт.

10

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

SEAL - injector

6шт.

11

J903380

SEAL

SEAL - connector

6шт.

Part of injection nozzle kit P/N A77554.

1шт.

12

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, not shown

6шт.

A77554

NOZZLE INJECTION

KIT - injection nozzle, new, Includes: Ref. 1, 9 and 11

1шт.
