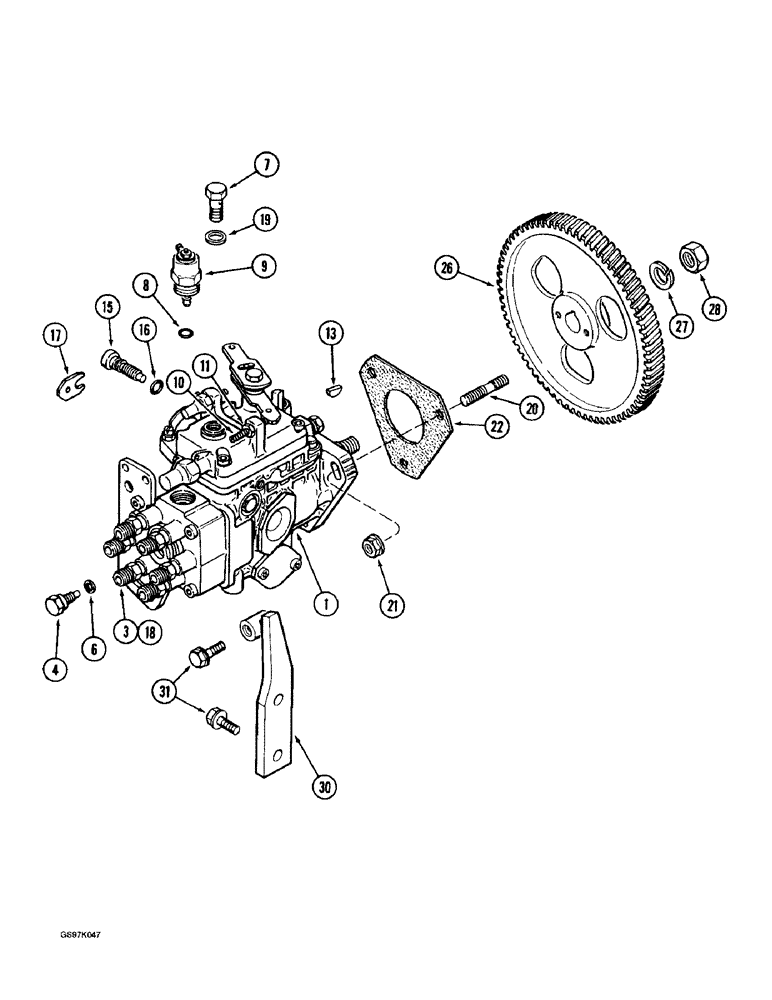

Запчасти Case 888 (3-12) - FUEL INJECTION PUMP AND DRIVE, 6T-590 DIESEL ENGINE (03) - FUEL SYSTEM

JR929658

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured, (Replaces pump assembly JR912561), Includes: Ref. 3 - 19

1шт.

JC929658

CORE-INJECTION PUMP

Return Part Number

1шт.

JC912561

PUMP

RETURN NUMBER - injection pump, use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 3 - 19

1шт.

1

J912561

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, Robert Bosch VE6/12F1000RV15238, Includes: Ref. 3 - 19

1шт.

1

J917563

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, Robert Bosch VE6/12F1000RV11403, Includes: Ref. 3 - 19

1шт.

3

J903571

ADAPTER

FITTING - delivery valve

6шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

6

3053133R1

SEALING RING,M8 x 11.5 x 1

GASKET - vent screw

1шт.

7

J905465

BANJO BOLT

SCREW - overflow

1шт.

8

J903577

SEAL

SEAL - solenoid

1шт.

9

J903576

SOLENOID

SOLENOID - shut down, 24 volt

1шт.

10

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

11

J904783

NUT

NUT - idle screw

1шт.

13

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pump gear (Replaces key J902332) #6, 5/32" x 5/8", HT

1шт.

15

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

SCREW - timing lock

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

O-RING - timing lock screw

1шт.

17

J904786

PLATE

PLATE - timing lock

1шт.

18

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

GASKET - delivery valve

6шт.

19

NSS

NOT SOLD SEPARAT

WASHER - overflow screw, order pump assembly

1шт.

20

J902501

STUD

STUD - pump mounting, 8 mm x 48 mm

3шт.

21

J900589

NUT

NUT - hex flange, 8 mm

3шт.

22

J914389

GASKET

GASKET - pump mounting

1шт.

26

J931387

GEAR

GEAR - pump drive (Replaces gear J911331)

1шт.

27

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

28

A77444

JAM NUT

NUT - hex jam, 9/16 inch NF

1шт.

30

J905313

LEVER

BRACE - fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 20 mm

3шт.
