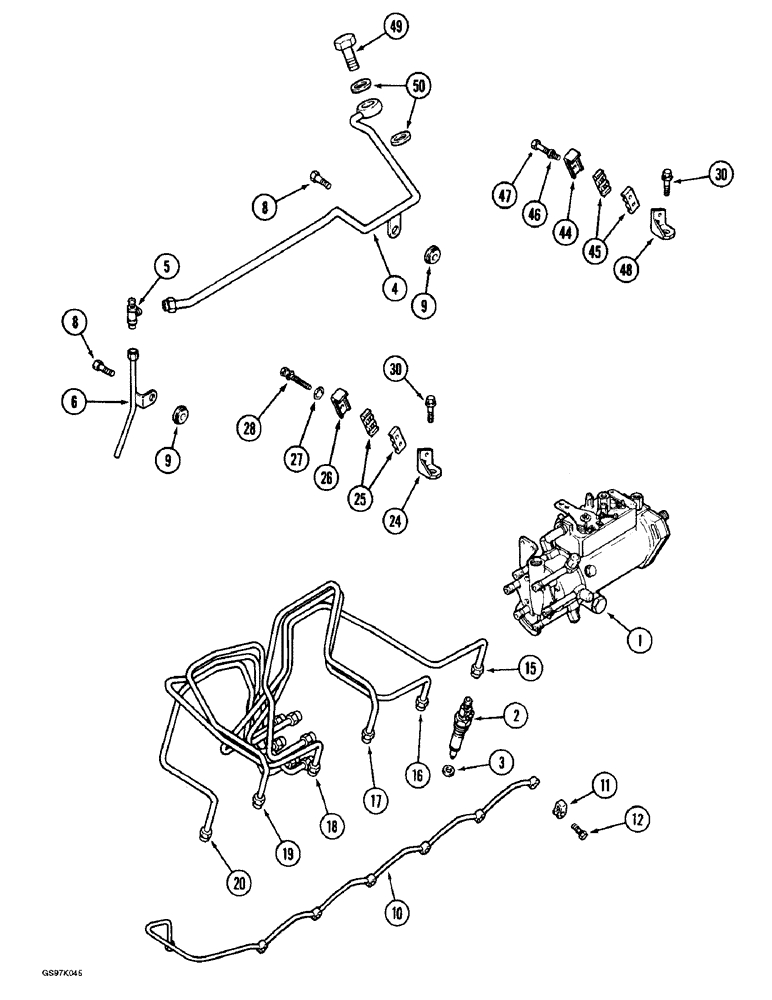

Запчасти Case 888 (3-08) - FUEL INJECTION SYSTEM, 6T-590 DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Fig. 3-12

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list Fig. 3-14

6шт.

3

J900808

SEAL

- injector

6шт.

4

J920889

FUEL TUBE

TUBE - fuel drain (Replaces tube J905705)

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Union

1шт.

6

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

1шт.

8

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

9

J928759

SEALING WASHER

- cover bolt (Replaces seal J900267)

2шт.

10

J909696

TUBE

TUBE - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

15

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

16

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

17

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

18

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

19

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

20

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, no longer available, order Refs. 24 - 28 below, Includes: Ref. 24 - 28

1шт.

24

J917777

BRACE

BRACKET - fuel tube

1шт.

25

J917747

CLAMP

ISOLATOR - fuel tube

2шт.

26

J904519

SUPPORT

PLATE - clamp

1шт.

27

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

28

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

30

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- flange hex, bracket retaining

2шт.

A77529

BRACKET

ASSEMBLY - fuel tube, no longer available, order Refs. 44 - 48 below, Includes: Ref. 44 - 50

1шт.

44

J904519

SUPPORT

BRACE - fuel tube retaining

1шт.

45

J917747

CLAMP

- fuel tube

2шт.

46

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

47

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

48

J917778

BRACE

- fuel tube

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - banjo connector, order bolt assembly J905860 on Fig. 3-10

1шт.

50

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm (Replaces washer J903037)

1шт.
