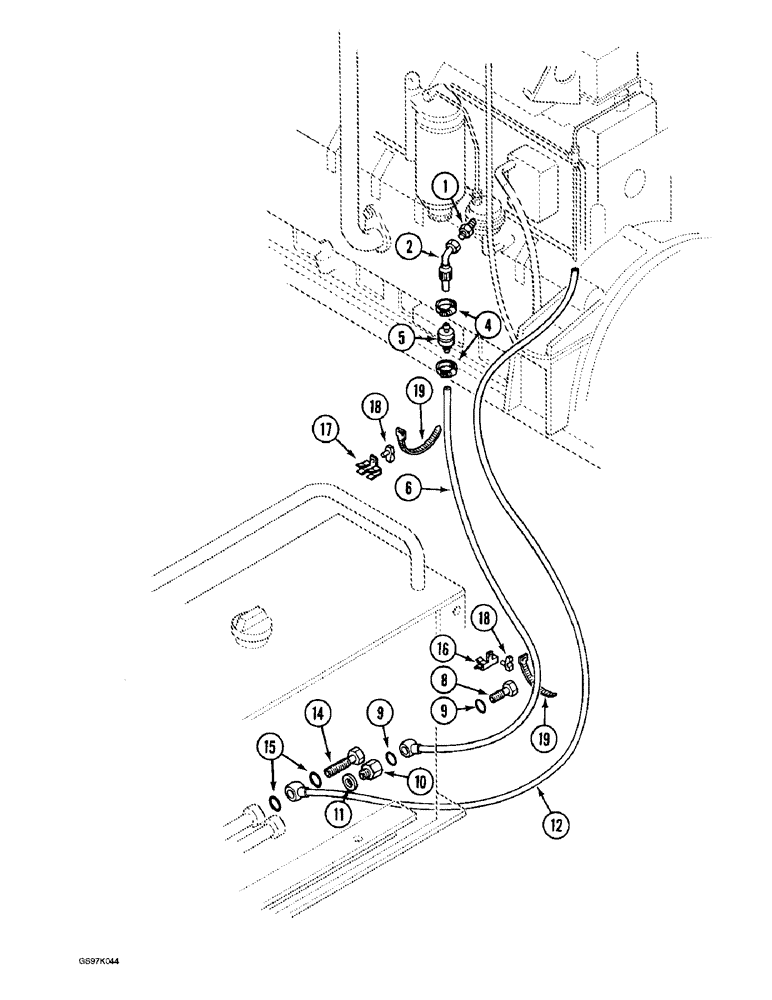

Запчасти Case 888 (3-06) - ENGINE FUEL LINES AND FITTINGS (03) - FUEL SYSTEM

1

P2337559

FITTING

ADAPTER - straight, fuel, Serial Range: hose-engine

1шт.

2

P7331904

HOSE

- filter to engine, 201 mm (7-15/16 inch) long

1шт.

4

P36951

COLLAR

CLAMP - hose

2шт.

5

P1950594

FILTER, FUEL

FILTER - fuel, suction line

1шт.

6

P7331906

HOSE

- tank to filter, 10 mm ID, 1800 mm (70-7/8 inch) long

1шт.

8

P730095

SCREW

BOLT - fuel hose connector

1шт.

9

P45240

WASHER, SEALING

GASKET - connector

2шт.

10

P1037321

RESTRICTOR

REDUCTION - at tank

1шт.

11

P45239

WASHER, SEALING

GASKET - reduction at tank

1шт.

12

P6631962

HOSE

- fuel return to tank, 4 mm ID, 2003 mm (78-7/8 inch) long

1шт.

14

P730090

BANJO BOLT

BOLT - fuel hose connector

1шт.

15

P5346094

SEAL

GASKET - connector

2шт.

16

P2036903

CLASP

CLIP - retainer, 3 - 6 mm (1/8 - 1/4 inch) range

2шт.

17

P2036902

CLASP

CLIP - retainer, 6 - 8 mm (1/4 - 5/16 inch) range

1шт.

18

PP2036939

CLASP

RETAINER - tie strap

4шт.

19

P51946

CLAMP

STRAP - tie, fuel hose to retainer, 257 mm (10-1/8 inch) long

8шт.
